Hi,
I’m trying to conduct the UHD benchmark test using DPDK on X410 radio. I’m using the NI Dual 100 Gigabit Ethernet PCIe NIC card, using the Mellanox drivers, and have the UC_200 fpga image loaded on the radio. However, I keep experiencing packet drops and sequence errors when I do that. Any idea why that’s happening?
/usr/local/lib/uhd/examples$ sudo ./benchmark_rate --args "type=x4xx,product=x410,addr=192.168.20.3,mgmt_addr=192.168.1.3,use_dpdk=1" --priority "high" --multi_streamer --rx_rate 245.76e6 --rx_subdev "B:1" --tx_rate 245.76e6 --tx_subdev "B:0"
[INFO] [UHD] linux; GNU C++ version 11.4.0; Boost_107400; DPDK_21.11; UHD_4.7.0.HEAD-0-ga5ed1872
EAL: Detected CPU lcores: 32
EAL: Detected NUMA nodes: 1
EAL: Detected shared linkage of DPDK
EAL: Multi-process socket /var/run/dpdk/rte/mp_socket
EAL: Selected IOVA mode 'VA'
EAL: No available 1048576 kB hugepages reported
EAL: Probe PCI driver: mlx5_pci (15b3:1017) device: 0000:01:00.0 (socket 0)
EAL: Probe PCI driver: mlx5_pci (15b3:1017) device: 0000:01:00.1 (socket 0)
TELEMETRY: No legacy callbacks, legacy socket not created
[00:00:00.000109] Creating the usrp device with: type=x4xx,product=x410,addr=192.168.20.3,mgmt_addr=192.168.1.3,use_dpdk=1...
[INFO] [MPMD] Initializing 1 device(s) in parallel with args: mgmt_addr=192.168.1.3,type=x4xx,product=x410,serial=328AFD7,name=ni-x4xx-328AFD7,fpga=UC_200,claimed=False,addr=192.168.20.3,use_dpdk=1
[INFO] [MPM.PeriphManager] init() called with device args `fpga=UC_200,mgmt_addr=192.168.1.3,name=ni-x4xx-328AFD7,product=x410,use_dpdk=1,clock_source=internal,time_source=internal,initializing=True'.
Using Device: Single USRP:
Device: X400-Series Device
Mboard 0: x410
RX Channel: 0
RX DSP: 0
RX Dboard: B
RX Subdev: 1
TX Channel: 0
TX DSP: 0
TX Dboard: B
TX Subdev: 0
[00:00:01.970153754] Setting device timestamp to 0...
[00:00:01.971248509] Testing receive rate 245.760000 Msps on 1 channels
Setting TX spb to 1992
[00:00:01.972147276] Testing transmit rate 245.760000 Msps on 1 channels
U[D00:00:02.502074084] Detected Rx sequence error.
U[D00:00:03.501866063] Detected Rx sequence error.
U[D00:00:04.501965973] Detected Rx sequence error.
U[D00:00:05.501905705] Detected Rx sequence error.
U[D00:00:06.501533956] Detected Rx sequence error.
U[D00:00:07.501567020] Detected Rx sequence error.
U[D00:00:08.501554331] Detected Rx sequence error.
U[D00:00:09.501610267] Detected Rx sequence error.
U[D00:00:10.501971471] Detected Rx sequence error.
U[D00:00:11.501931301] Detected Rx sequence error.
[00:00:11.973155250] Benchmark complete.
Benchmark rate summary:
Num received samples: 2344330478
Num dropped samples: 113209128
Num overruns detected: 0
Num transmitted samples: 2335492512
Num sequence errors (Tx): 0
Num sequence errors (Rx): 10
Num underruns detected: 10
Num late commands: 0
Num timeouts (Tx): 0
Num timeouts (Rx): 0
Done!
On 29/10/2024 19:38, dhpanchaai@gmail.com wrote:
Hi,
I’m trying to conduct the UHD benchmark test using DPDK on X410 radio.
I’m using the NI Dual 100 Gigabit Ethernet PCIe NIC card, using the
Mellanox drivers, and have the UC_200 fpga image loaded on the radio.
However, I keep experiencing packet drops and sequence errors when I
do that. Any idea why that’s happening?
/usr/local/lib/uhd/examples$ sudo ./benchmark_rate --args
"type=x4xx,product=x410,addr=192.168.20.3,mgmt_addr=192.168.1.3,use_dpdk=1"
--priority "high" --multi_streamer --rx_rate 245.76e6 --rx_subdev
"B:1" --tx_rate 245.76e6 --tx_subdev "B:0"
[INFO] [UHD] linux; GNU C++ version 11.4.0; Boost_107400; DPDK_21.11;
UHD_4.7.0.HEAD-0-ga5ed1872
EAL: Detected CPU lcores: 32
EAL: Detected NUMA nodes: 1
EAL: Detected shared linkage of DPDK
EAL: Multi-process socket /var/run/dpdk/rte/mp_socket
EAL: Selected IOVA mode 'VA'
EAL: No available 1048576 kB hugepages reported
EAL: Probe PCI driver: mlx5_pci (15b3:1017) device: 0000:01:00.0
(socket 0)
EAL: Probe PCI driver: mlx5_pci (15b3:1017) device: 0000:01:00.1
(socket 0)
TELEMETRY: No legacy callbacks, legacy socket not created
[00:00:00.000109] Creating the usrp device with:
type=x4xx,product=x410,addr=192.168.20.3,mgmt_addr=192.168.1.3,use_dpdk=1...
[INFO] [MPMD] Initializing 1 device(s) in parallel with args:
mgmt_addr=192.168.1.3,type=x4xx,product=x410,serial=328AFD7,name=ni-x4xx-328AFD7,fpga=UC_200,claimed=False,addr=192.168.20.3,use_dpdk=1
[INFO] [MPM.PeriphManager] init() called with device args
`fpga=UC_200,mgmt_addr=192.168.1.3,name=ni-x4xx-328AFD7,product=x410,use_dpdk=1,clock_source=internal,time_source=internal,initializing=True'.
Using Device: Single USRP:
Device: X400-Series Device
Mboard 0: x410
RX Channel: 0
RX DSP: 0
RX Dboard: B
RX Subdev: 1
TX Channel: 0
TX DSP: 0
TX Dboard: B
TX Subdev: 0
[00:00:01.970153754] Setting device timestamp to 0...
[00:00:01.971248509] Testing receive rate 245.760000 Msps on 1 channels
Setting TX spb to 1992
[00:00:01.972147276] Testing transmit rate 245.760000 Msps on 1 channels
U[D00:00:02.502074084] Detected Rx sequence error.
U[D00:00:03.501866063] Detected Rx sequence error.
U[D00:00:04.501965973] Detected Rx sequence error.
U[D00:00:05.501905705] Detected Rx sequence error.
U[D00:00:06.501533956] Detected Rx sequence error.
U[D00:00:07.501567020] Detected Rx sequence error.
U[D00:00:08.501554331] Detected Rx sequence error.
U[D00:00:09.501610267] Detected Rx sequence error.
U[D00:00:10.501971471] Detected Rx sequence error.
U[D00:00:11.501931301] Detected Rx sequence error.
[00:00:11.973155250] Benchmark complete.
Benchmark rate summary:
Num received samples: 2344330478
Num dropped samples: 113209128
Num overruns detected: 0
Num transmitted samples: 2335492512
Num sequence errors (Tx): 0
Num sequence errors (Rx): 10
Num underruns detected: 10
Num late commands: 0
Num timeouts (Tx): 0
Num timeouts (Rx): 0
Done!
USRP-users mailing list -- usrp-users@lists.ettus.com
To unsubscribe send an email to usrp-users-leave@lists.ettus.com
I don't think "multi_streamer" is going to do anything for you here,
since you're only configuring a single channel in each direction.
I THINK multi_streamer will have ZERO effect, but you could try
again without it.
Doing the math, your system is trying to move about 2Gbyte/second
into/out-of that NIC, and it may be running out of
bus bandwidth and/or CPU.
I assume that you've configured your CPU for "Performance" mode?
IF you cut the sample-rate in half, do you still see this problem?
I had to change my 100G IP address to 192.168.120.2 and channels on the X410 to “A”.
I set the CPU to Performance Mode and lowered the sample rate to 122.88e6.
However, I’m still experiencing dropped packets and sequence errors.
/usr/local/lib/uhd/examples$ sudo ./benchmark_rate --args "type=x4xx,product=x410,addr=192.168.120.2,mgmt_addr=192.168.1.3,use_dpdk=1" --priority "high" --rx_rate 122.88e6 --rx_subdev "A:1" --tx_rate 122.88e6 --tx_subdev "A:0"
[INFO] [UHD] linux; GNU C++ version 11.4.0; Boost_107400; DPDK_21.11; UHD_4.7.0.HEAD-0-ga5ed1872
EAL: Detected CPU lcores: 32
EAL: Detected NUMA nodes: 1
EAL: Detected shared linkage of DPDK
EAL: Multi-process socket /var/run/dpdk/rte/mp_socket
EAL: Selected IOVA mode 'VA'
EAL: No available 1048576 kB hugepages reported
EAL: Probe PCI driver: mlx5_pci (15b3:1017) device: 0000:01:00.0 (socket 0)
EAL: Probe PCI driver: mlx5_pci (15b3:1017) device: 0000:01:00.1 (socket 0)
TELEMETRY: No legacy callbacks, legacy socket not created
[00:00:00.000094] Creating the usrp device with: type=x4xx,product=x410,addr=192.168.120.2,mgmt_addr=192.168.1.3,use_dpdk=1...
[INFO] [MPMD] Initializing 1 device(s) in parallel with args: mgmt_addr=192.168.1.3,type=x4xx,product=x410,serial=328AFD7,name=ni-x4xx-328AFD7,fpga=UC_200,claimed=False,addr=192.168.120.2,use_dpdk=1
[INFO] [MPM.PeriphManager] init() called with device args `fpga=UC_200,mgmt_addr=192.168.1.3,name=ni-x4xx-328AFD7,product=x410,use_dpdk=1,clock_source=internal,time_source=internal,initializing=True'.
Using Device: Single USRP:
Device: X400-Series Device
Mboard 0: x410
RX Channel: 0
RX DSP: 0
RX Dboard: A
RX Subdev: 1
TX Channel: 0
TX DSP: 0
TX Dboard: A
TX Subdev: 0
[00:00:01.954717000] Setting device timestamp to 0...
[00:00:01.955999062] Testing receive rate 122.880000 Msps on 1 channels
Setting TX spp to 1992
[00:00:01.956816655] Testing transmit rate 122.880000 Msps on 1 channels
U[00:00:02.575486749] Detected Rx sequence error.
DU[00:00:03.575529623] Detected Rx sequence error.
DU[00:00:04.575537036] Detected Rx sequence error.
DU[00:00:05.575477062] Detected Rx sequence error.
DU[00:00:06.575465296] Detected Rx sequence error.
DU[00:00:07.575549183] Detected Rx sequence error.
DU[00:00:08.575539569] Detected Rx sequence error.
DU[00:00:09.575532702] Detected Rx sequence error.
DU[00:00:10.575479853] Detected Rx sequence error.
DU[00:00:11.575464597] Detected Rx sequence error.
D[00:00:11.958336752] Benchmark complete.
Benchmark rate summary:
Num received samples: 1176736199
Num dropped samples: 52167456
Num overruns detected: 0
Num transmitted samples: 1168152624
Num sequence errors (Tx): 0
Num sequence errors (Rx): 10
Num underruns detected: 10
Num late commands: 0
Num timeouts (Tx): 0
Num timeouts (Rx): 0
Done!
My /root/.config/uhd.conf file:
[use_dpdk=1]
dpdk_mtu=9000
dpdk_driver=/usr/lib/x86_64-linux-gnu/dpdk/pmds-22.0/
dpdk_corelist=10,11
dpdk_num_mbufs=4095
dpdk_mbuf_cache_size=315
[dpdk_mac=b8:3f:d2:b0:d7:58]
dpdk_lcore = 11
dpdk_ipv4 = 192.168.120.33/24
#dpdk_num_desc = 4096

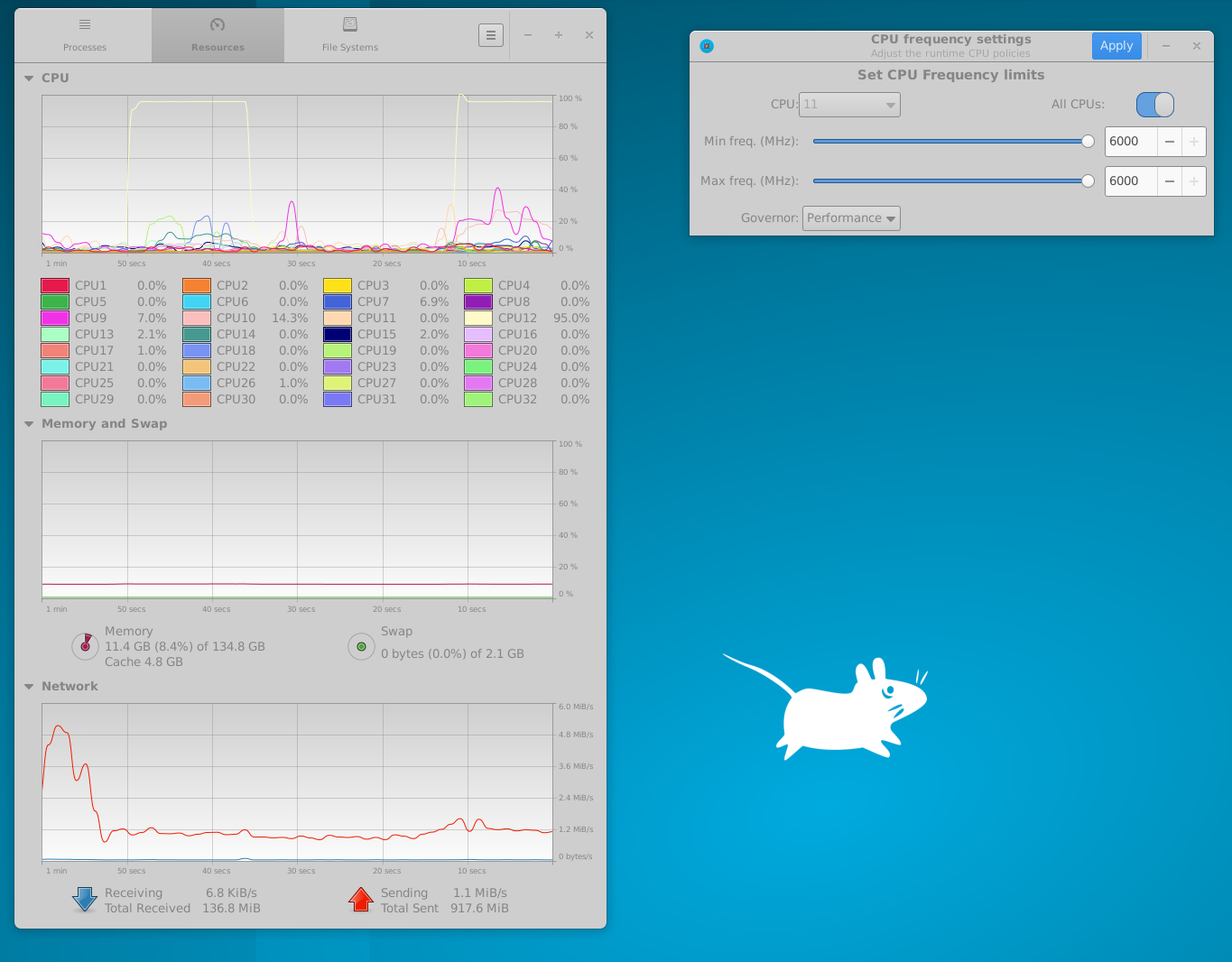

I have attached screenshot of the performance GUI and system monitor of the CPU usage
Here is the cpuinfo from the terminal:
$ sudo cpufreq-set -c 11 -g performance
$ cpufreq-info
cpufrequtils 008: cpufreq-info (C) Dominik Brodowski 2004-2009
Report errors and bugs to cpufreq@vger.kernel.org, please.
analyzing CPU 0:
driver: intel_pstate
CPUs which run at the same hardware frequency: 0
CPUs which need to have their frequency coordinated by software: 0
maximum transition latency: 4294.55 ms.
hardware limits: 800 MHz - 5.70 GHz
available cpufreq governors: performance, powersave
current policy: frequency should be within 5.70 GHz and 5.70 GHz.
The governor "performance" may decide which speed to use
within this range.
current CPU frequency is 5.70 GHz.
analyzing CPU 1:
driver: intel_pstate
CPUs which run at the same hardware frequency: 1
CPUs which need to have their frequency coordinated by software: 1
maximum transition latency: 4294.55 ms.
hardware limits: 800 MHz - 5.70 GHz
available cpufreq governors: performance, powersave
current policy: frequency should be within 5.70 GHz and 5.70 GHz.
The governor "performance" may decide which speed to use
within this range.
current CPU frequency is 5.70 GHz.
analyzing CPU 2:
driver: intel_pstate
CPUs which run at the same hardware frequency: 2
CPUs which need to have their frequency coordinated by software: 2
maximum transition latency: 4294.55 ms.
hardware limits: 800 MHz - 5.70 GHz
available cpufreq governors: performance, powersave
current policy: frequency should be within 5.70 GHz and 5.70 GHz.
The governor "performance" may decide which speed to use
within this range.
current CPU frequency is 5.70 GHz.
analyzing CPU 3:
driver: intel_pstate
CPUs which run at the same hardware frequency: 3
CPUs which need to have their frequency coordinated by software: 3
maximum transition latency: 4294.55 ms.
hardware limits: 800 MHz - 5.70 GHz
available cpufreq governors: performance, powersave
current policy: frequency should be within 5.70 GHz and 5.70 GHz.
The governor "performance" may decide which speed to use
within this range.
current CPU frequency is 5.70 GHz.
analyzing CPU 4:
driver: intel_pstate
CPUs which run at the same hardware frequency: 4
CPUs which need to have their frequency coordinated by software: 4
maximum transition latency: 4294.55 ms.
hardware limits: 800 MHz - 5.70 GHz
available cpufreq governors: performance, powersave
current policy: frequency should be within 5.70 GHz and 5.70 GHz.
The governor "performance" may decide which speed to use
within this range.
current CPU frequency is 5.70 GHz.
analyzing CPU 5:
driver: intel_pstate
CPUs which run at the same hardware frequency: 5
CPUs which need to have their frequency coordinated by software: 5
maximum transition latency: 4294.55 ms.
hardware limits: 800 MHz - 5.70 GHz
available cpufreq governors: performance, powersave
current policy: frequency should be within 5.70 GHz and 5.70 GHz.
The governor "performance" may decide which speed to use
within this range.
current CPU frequency is 5.70 GHz.
analyzing CPU 6:
driver: intel_pstate
CPUs which run at the same hardware frequency: 6
CPUs which need to have their frequency coordinated by software: 6
maximum transition latency: 4294.55 ms.
hardware limits: 800 MHz - 5.70 GHz
available cpufreq governors: performance, powersave
current policy: frequency should be within 5.70 GHz and 5.70 GHz.
The governor "performance" may decide which speed to use
within this range.
current CPU frequency is 5.70 GHz.
analyzing CPU 7:
driver: intel_pstate
CPUs which run at the same hardware frequency: 7
CPUs which need to have their frequency coordinated by software: 7
maximum transition latency: 4294.55 ms.
hardware limits: 800 MHz - 5.70 GHz
available cpufreq governors: performance, powersave
current policy: frequency should be within 5.70 GHz and 5.70 GHz.
The governor "performance" may decide which speed to use
within this range.
current CPU frequency is 5.70 GHz.
analyzing CPU 8:
driver: intel_pstate
CPUs which run at the same hardware frequency: 8
CPUs which need to have their frequency coordinated by software: 8
maximum transition latency: 4294.55 ms.
hardware limits: 800 MHz - 6.00 GHz
available cpufreq governors: performance, powersave
current policy: frequency should be within 5.70 GHz and 5.70 GHz.
The governor "performance" may decide which speed to use
within this range.
current CPU frequency is 5.70 GHz.
analyzing CPU 9:
driver: intel_pstate
CPUs which run at the same hardware frequency: 9
CPUs which need to have their frequency coordinated by software: 9
maximum transition latency: 4294.55 ms.
hardware limits: 800 MHz - 6.00 GHz
available cpufreq governors: performance, powersave
current policy: frequency should be within 5.70 GHz and 5.70 GHz.
The governor "performance" may decide which speed to use
within this range.
current CPU frequency is 5.70 GHz.
analyzing CPU 10:
driver: intel_pstate
CPUs which run at the same hardware frequency: 10
CPUs which need to have their frequency coordinated by software: 10
maximum transition latency: 4294.55 ms.
hardware limits: 800 MHz - 6.00 GHz
available cpufreq governors: performance, powersave
current policy: frequency should be within 5.70 GHz and 5.70 GHz.
The governor "performance" may decide which speed to use
within this range.
current CPU frequency is 5.70 GHz.
analyzing CPU 11:
driver: intel_pstate
CPUs which run at the same hardware frequency: 11
CPUs which need to have their frequency coordinated by software: 11
maximum transition latency: 4294.55 ms.
hardware limits: 800 MHz - 6.00 GHz
available cpufreq governors: performance, powersave
current policy: frequency should be within 5.70 GHz and 5.70 GHz.
The governor "performance" may decide which speed to use
within this range.
current CPU frequency is 5.70 GHz.
analyzing CPU 12:
driver: intel_pstate
CPUs which run at the same hardware frequency: 12
CPUs which need to have their frequency coordinated by software: 12
maximum transition latency: 4294.55 ms.
hardware limits: 800 MHz - 5.70 GHz
available cpufreq governors: performance, powersave
current policy: frequency should be within 5.70 GHz and 5.70 GHz.
The governor "performance" may decide which speed to use
within this range.
current CPU frequency is 5.70 GHz.
analyzing CPU 13:
driver: intel_pstate
CPUs which run at the same hardware frequency: 13
CPUs which need to have their frequency coordinated by software: 13
maximum transition latency: 4294.55 ms.
hardware limits: 800 MHz - 5.70 GHz
available cpufreq governors: performance, powersave
current policy: frequency should be within 5.70 GHz and 5.70 GHz.
The governor "performance" may decide which speed to use
within this range.
current CPU frequency is 5.70 GHz.
analyzing CPU 14:
driver: intel_pstate
CPUs which run at the same hardware frequency: 14
CPUs which need to have their frequency coordinated by software: 14
maximum transition latency: 4294.55 ms.
hardware limits: 800 MHz - 5.70 GHz
available cpufreq governors: performance, powersave
current policy: frequency should be within 5.70 GHz and 5.70 GHz.
The governor "performance" may decide which speed to use
within this range.
current CPU frequency is 5.70 GHz.
analyzing CPU 15:
driver: intel_pstate
CPUs which run at the same hardware frequency: 15
CPUs which need to have their frequency coordinated by software: 15
maximum transition latency: 4294.55 ms.
hardware limits: 800 MHz - 5.70 GHz
available cpufreq governors: performance, powersave
current policy: frequency should be within 5.70 GHz and 5.70 GHz.
The governor "performance" may decide which speed to use
within this range.
current CPU frequency is 5.70 GHz.
analyzing CPU 16:
driver: intel_pstate
CPUs which run at the same hardware frequency: 16
CPUs which need to have their frequency coordinated by software: 16
maximum transition latency: 4294.55 ms.
hardware limits: 800 MHz - 4.40 GHz
available cpufreq governors: performance, powersave
current policy: frequency should be within 4.40 GHz and 4.40 GHz.
The governor "performance" may decide which speed to use
within this range.
current CPU frequency is 4.40 GHz.
analyzing CPU 17:
driver: intel_pstate
CPUs which run at the same hardware frequency: 17
CPUs which need to have their frequency coordinated by software: 17
maximum transition latency: 4294.55 ms.
hardware limits: 800 MHz - 4.40 GHz
available cpufreq governors: performance, powersave
current policy: frequency should be within 4.40 GHz and 4.40 GHz.
The governor "performance" may decide which speed to use
within this range.
current CPU frequency is 4.40 GHz.
analyzing CPU 18:
driver: intel_pstate
CPUs which run at the same hardware frequency: 18
CPUs which need to have their frequency coordinated by software: 18
maximum transition latency: 4294.55 ms.
hardware limits: 800 MHz - 4.40 GHz
available cpufreq governors: performance, powersave
current policy: frequency should be within 4.40 GHz and 4.40 GHz.
The governor "performance" may decide which speed to use
within this range.
current CPU frequency is 4.40 GHz.
analyzing CPU 19:
driver: intel_pstate
CPUs which run at the same hardware frequency: 19
CPUs which need to have their frequency coordinated by software: 19
maximum transition latency: 4294.55 ms.
hardware limits: 800 MHz - 4.40 GHz
available cpufreq governors: performance, powersave
current policy: frequency should be within 4.40 GHz and 4.40 GHz.
The governor "performance" may decide which speed to use
within this range.
current CPU frequency is 4.40 GHz.
analyzing CPU 20:
driver: intel_pstate
CPUs which run at the same hardware frequency: 20
CPUs which need to have their frequency coordinated by software: 20
maximum transition latency: 4294.55 ms.
hardware limits: 800 MHz - 4.40 GHz
available cpufreq governors: performance, powersave
current policy: frequency should be within 4.40 GHz and 4.40 GHz.
The governor "performance" may decide which speed to use
within this range.
current CPU frequency is 4.40 GHz.
analyzing CPU 21:
driver: intel_pstate
CPUs which run at the same hardware frequency: 21
CPUs which need to have their frequency coordinated by software: 21
maximum transition latency: 4294.55 ms.
hardware limits: 800 MHz - 4.40 GHz
available cpufreq governors: performance, powersave
current policy: frequency should be within 4.40 GHz and 4.40 GHz.
The governor "performance" may decide which speed to use
within this range.
current CPU frequency is 4.40 GHz.
analyzing CPU 22:
driver: intel_pstate
CPUs which run at the same hardware frequency: 22
CPUs which need to have their frequency coordinated by software: 22
maximum transition latency: 4294.55 ms.
hardware limits: 800 MHz - 4.40 GHz
available cpufreq governors: performance, powersave
current policy: frequency should be within 4.40 GHz and 4.40 GHz.
The governor "performance" may decide which speed to use
within this range.
current CPU frequency is 4.40 GHz.
analyzing CPU 23:
driver: intel_pstate
CPUs which run at the same hardware frequency: 23
CPUs which need to have their frequency coordinated by software: 23
maximum transition latency: 4294.55 ms.
hardware limits: 800 MHz - 4.40 GHz
available cpufreq governors: performance, powersave
current policy: frequency should be within 4.40 GHz and 4.40 GHz.
The governor "performance" may decide which speed to use
within this range.
current CPU frequency is 4.40 GHz.
analyzing CPU 24:
driver: intel_pstate
CPUs which run at the same hardware frequency: 24
CPUs which need to have their frequency coordinated by software: 24
maximum transition latency: 4294.55 ms.
hardware limits: 800 MHz - 4.40 GHz
available cpufreq governors: performance, powersave
current policy: frequency should be within 4.40 GHz and 4.40 GHz.
The governor "performance" may decide which speed to use
within this range.
current CPU frequency is 4.40 GHz.
analyzing CPU 25:
driver: intel_pstate
CPUs which run at the same hardware frequency: 25
CPUs which need to have their frequency coordinated by software: 25
maximum transition latency: 4294.55 ms.
hardware limits: 800 MHz - 4.40 GHz
available cpufreq governors: performance, powersave
current policy: frequency should be within 4.40 GHz and 4.40 GHz.
The governor "performance" may decide which speed to use
within this range.
current CPU frequency is 4.40 GHz.
analyzing CPU 26:
driver: intel_pstate
CPUs which run at the same hardware frequency: 26
CPUs which need to have their frequency coordinated by software: 26
maximum transition latency: 4294.55 ms.
hardware limits: 800 MHz - 4.40 GHz
available cpufreq governors: performance, powersave
current policy: frequency should be within 4.40 GHz and 4.40 GHz.
The governor "performance" may decide which speed to use
within this range.
current CPU frequency is 4.40 GHz.
analyzing CPU 27:
driver: intel_pstate
CPUs which run at the same hardware frequency: 27
CPUs which need to have their frequency coordinated by software: 27
maximum transition latency: 4294.55 ms.
hardware limits: 800 MHz - 4.40 GHz
available cpufreq governors: performance, powersave
current policy: frequency should be within 4.40 GHz and 4.40 GHz.
The governor "performance" may decide which speed to use
within this range.
current CPU frequency is 4.40 GHz.
analyzing CPU 28:
driver: intel_pstate
CPUs which run at the same hardware frequency: 28
CPUs which need to have their frequency coordinated by software: 28
maximum transition latency: 4294.55 ms.
hardware limits: 800 MHz - 4.40 GHz
available cpufreq governors: performance, powersave
current policy: frequency should be within 4.40 GHz and 4.40 GHz.
The governor "performance" may decide which speed to use
within this range.
current CPU frequency is 4.40 GHz.
analyzing CPU 29:
driver: intel_pstate
CPUs which run at the same hardware frequency: 29
CPUs which need to have their frequency coordinated by software: 29
maximum transition latency: 4294.55 ms.
hardware limits: 800 MHz - 4.40 GHz
available cpufreq governors: performance, powersave
current policy: frequency should be within 4.40 GHz and 4.40 GHz.
The governor "performance" may decide which speed to use
within this range.
current CPU frequency is 4.40 GHz.
analyzing CPU 30:
driver: intel_pstate
CPUs which run at the same hardware frequency: 30
CPUs which need to have their frequency coordinated by software: 30
maximum transition latency: 4294.55 ms.
hardware limits: 800 MHz - 4.40 GHz
available cpufreq governors: performance, powersave
current policy: frequency should be within 4.40 GHz and 4.40 GHz.
The governor "performance" may decide which speed to use
within this range.
current CPU frequency is 4.40 GHz.
analyzing CPU 31:
driver: intel_pstate
CPUs which run at the same hardware frequency: 31
CPUs which need to have their frequency coordinated by software: 31
maximum transition latency: 4294.55 ms.
hardware limits: 800 MHz - 4.40 GHz
available cpufreq governors: performance, powersave
current policy: frequency should be within 4.40 GHz and 4.40 GHz.
The governor "performance" may decide which speed to use
within this range.
current CPU frequency is 4.40 GHz.
On 30/10/2024 13:38, dhpanchaai@gmail.com wrote:
I had to change my 100G IP address to 192.168.120.2 and channels on
the X410 to “A”.
I set the CPU to Performance Mode and lowered the sample rate to
122.88e6.
However, I’m still experiencing dropped packets and sequence errors.
/usr/local/lib/uhd/examples$ sudo ./benchmark_rate --args
"type=x4xx,product=x410,addr=192.168.120.2,mgmt_addr=192.168.1.3,use_dpdk=1"
--priority "high" --rx_rate 122.88e6 --rx_subdev "A:1" --tx_rate
122.88e6 --tx_subdev "A:0"
[INFO] [UHD] linux; GNU C++ version 11.4.0; Boost_107400; DPDK_21.11;
UHD_4.7.0.HEAD-0-ga5ed1872
EAL: Detected CPU lcores: 32
EAL: Detected NUMA nodes: 1
EAL: Detected shared linkage of DPDK
EAL: Multi-process socket /var/run/dpdk/rte/mp_socket
EAL: Selected IOVA mode 'VA'
EAL: No available 1048576 kB hugepages reported
EAL: Probe PCI driver: mlx5_pci (15b3:1017) device: 0000:01:00.0
(socket 0)
EAL: Probe PCI driver: mlx5_pci (15b3:1017) device: 0000:01:00.1
(socket 0)
TELEMETRY: No legacy callbacks, legacy socket not created
[00:00:00.000094] Creating the usrp device with:
type=x4xx,product=x410,addr=192.168.120.2,mgmt_addr=192.168.1.3,use_dpdk=1...
[INFO] [MPMD] Initializing 1 device(s) in parallel with args:
mgmt_addr=192.168.1.3,type=x4xx,product=x410,serial=328AFD7,name=ni-x4xx-328AFD7,fpga=UC_200,claimed=False,addr=192.168.120.2,use_dpdk=1
[INFO] [MPM.PeriphManager] init() called with device args
`fpga=UC_200,mgmt_addr=192.168.1.3,name=ni-x4xx-328AFD7,product=x410,use_dpdk=1,clock_source=internal,time_source=internal,initializing=True'.
Using Device: Single USRP:
Device: X400-Series Device
Mboard 0: x410
RX Channel: 0
RX DSP: 0
RX Dboard: A
RX Subdev: 1
TX Channel: 0
TX DSP: 0
TX Dboard: A
TX Subdev: 0
[00:00:01.954717000] Setting device timestamp to 0...
[00:00:01.955999062] Testing receive rate 122.880000 Msps on 1 channels
Setting TX spp to 1992
[00:00:01.956816655] Testing transmit rate 122.880000 Msps on 1 channels
U[00:00:02.575486749] Detected Rx sequence error.
DU[00:00:03.575529623] Detected Rx sequence error.
DU[00:00:04.575537036] Detected Rx sequence error.
DU[00:00:05.575477062] Detected Rx sequence error.
DU[00:00:06.575465296] Detected Rx sequence error.
DU[00:00:07.575549183] Detected Rx sequence error.
DU[00:00:08.575539569] Detected Rx sequence error.
DU[00:00:09.575532702] Detected Rx sequence error.
DU[00:00:10.575479853] Detected Rx sequence error.
DU[00:00:11.575464597] Detected Rx sequence error.
D[00:00:11.958336752] Benchmark complete.
Benchmark rate summary:
Num received samples: 1176736199
Num dropped samples: 52167456
Num overruns detected: 0
Num transmitted samples: 1168152624
Num sequence errors (Tx): 0
Num sequence errors (Rx): 10
Num underruns detected: 10
Num late commands: 0
Num timeouts (Tx): 0
Num timeouts (Rx): 0
Done!
My /root/.config/uhd.conf file:
[use_dpdk=1]
dpdk_mtu=9000
dpdk_driver=/usr/lib/x86_64-linux-gnu/dpdk/pmds-22.0/
dpdk_corelist=10,11
dpdk_num_mbufs=4095
dpdk_mbuf_cache_size=315
[dpdk_mac=b8:3f:d2:b0:d7:58]
dpdk_lcore = 11
dpdk_ipv4 = 192.168.120.33/24
#dpdk_num_desc = 4096
I have attached screenshot of the performance GUI and system monitor
of the CPU usage
USRP-users mailing list -- usrp-users@lists.ettus.com
To unsubscribe send an email to usrp-users-leave@lists.ettus.com
This is on a "bare metal" system, and NOT on a VM, I assume?
I just ran a test (using a different USRP) doing 125Msps of receive into
my system, over a cheap 10GiGe card. Worked without
ANY dropped samples--just using the "benchmark_rate" application as
you have. My system is a 8-year-old dual-chip,
6-core Xeon system with 32G of memory, running on Ubuntu 22.04. Your
system SHOULD be capable of MUCH more.
I assume you've followed the various bits of advice here:
https://kb.ettus.com/USRP_Host_Performance_Tuning_Tips_and_Tricks#Increasing_Ring_Buffers
I wonder if you have a PHY-layer issue with your cabling?
Yes, its a bare metal system (no VM involved). I have the RF cable connected from A:0 to A:1 and I’m using the Mellanox cable connected from OSFP28-1 (right port on X410) to right port on 100G NIC card.
I’m using Xubuntu 22.04.
$ lsb_release -a
No LSB modules are available.
Distributor ID: Ubuntu
Description: Ubuntu 22.04.5 LTS
Release: 22.04
Codename: jammy
$ ethtool -g enp1s0f0np0
Ring parameters for enp1s0f0np0:
Pre-set maximums:
RX: 8192
RX Mini: n/a
RX Jumbo: n/a
TX: 8192
Current hardware settings:
RX: 4096
RX Mini: n/a
RX Jumbo: n/a
TX: 4096
$ sudo sysctl -w net.core.rmem_max=250000000
net.core.rmem_max = 250000000
$ sudo sysctl -w net.core.wmem_max=250000000
net.core.wmem_max = 250000000
$ lscpu
Architecture: x86_64
CPU op-mode(s): 32-bit, 64-bit
Address sizes: 46 bits physical, 48 bits virtual
Byte Order: Little Endian
CPU(s): 32
On-line CPU(s) list: 0-31
Vendor ID: GenuineIntel
Model name: Intel(R) Core(TM) i9-14900K
CPU family: 6
Model: 183
Thread(s) per core: 2
Core(s) per socket: 24
Socket(s): 1
Stepping: 1
CPU max MHz: 6000.0000
CPU min MHz: 800.0000
BogoMIPS: 6374.40
Flags: fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge m
ca cmov pat pse36 clflush dts acpi mmx fxsr sse sse2 s
s ht tm pbe syscall nx pdpe1gb rdtscp lm constant_tsc
art arch_perfmon pebs bts rep_good nopl xtopology nons
top_tsc cpuid aperfmperf tsc_known_freq pni pclmulqdq
dtes64 monitor ds_cpl vmx smx est tm2 ssse3 sdbg fma c
x16 xtpr pdcm pcid sse4_1 sse4_2 x2apic movbe popcnt t
sc_deadline_timer aes xsave avx f16c rdrand lahf_lm ab
m 3dnowprefetch cpuid_fault epb ssbd ibrs ibpb stibp i
brs_enhanced tpr_shadow flexpriority ept vpid ept_ad f
sgsbase tsc_adjust bmi1 avx2 smep bmi2 erms invpcid rd
seed adx smap clflushopt clwb intel_pt sha_ni xsaveopt
xsavec xgetbv1 xsaves split_lock_detect user_shstk av
x_vnni dtherm ida arat pln pts hwp hwp_notify hwp_act_
window hwp_epp hwp_pkg_req hfi vnmi umip pku ospke wai
tpkg gfni vaes vpclmulqdq tme rdpid movdiri movdir64b
fsrm md_clear serialize pconfig arch_lbr ibt flush_l1d
arch_capabilities
Virtualization features:
Virtualization: VT-x
Caches (sum of all):
L1d: 896 KiB (24 instances)
L1i: 1.3 MiB (24 instances)
L2: 32 MiB (12 instances)
L3: 36 MiB (1 instance)
NUMA:
NUMA node(s): 1
NUMA node0 CPU(s): 0-31
Vulnerabilities:
Gather data sampling: Not affected
Itlb multihit: Not affected
L1tf: Not affected
Mds: Not affected
Meltdown: Not affected
Mmio stale data: Not affected
Reg file data sampling: Mitigation; Clear Register File
Retbleed: Not affected
Spec rstack overflow: Not affected
Spec store bypass: Mitigation; Speculative Store Bypass disabled via prct
l
Spectre v1: Mitigation; usercopy/swapgs barriers and __user pointe
r sanitization
Spectre v2: Mitigation; Enhanced / Automatic IBRS; IBPB conditiona
l; RSB filling; PBRSB-eIBRS SW sequence; BHI BHI_DIS_S
Srbds: Not affected
Tsx async abort: Not affected
I got it work. It seems RT_RUNTIME_SHARE disabled was the culprit. I re-enabled it using these instructions and the benchmark worked without packet drops or underruns:
Underruns Every Second with DPDK + Ubuntu
With Linux kernels 5.10 and beyond, we have observed periodic underruns on systems that otherwise have no issues. These Linux kernel versions are the default for Ubuntu 20.04.3 LTS and later. The underrun issue is due to the RT_RUNTIME_SHARE feature being disabled by default in these versions of the Linux kernel (shown as NO_RT_RUNTIME_SHARE). The following procedure can be used to enable this feature. This process was tested on Linux kernel version 5.13; the procedure may be slightly different on other kernel versions. To determine the Linux kernel version of your system, in a terminal issue the command uname -r.
$ sudo -s
$ cd /sys/kernel/debug/sched
$ cat features | tr ' ' '\n' | grep RUNTIME_SHARE
NO_RT_RUNTIME_SHARE
$ echo RT_RUNTIME_SHARE > features
$ cat features | tr ' ' '\n' | grep RUNTIME_SHARE
RT_RUNTIME_SHARE
On 04/11/2024 20:12, dhpanchaai@gmail.com wrote:
I got it work. It seems RT_RUNTIME_SHARE disabled was the culprit. I
re-enabled it using these instructions and the benchmark worked
without packet drops or underruns:
Underruns Every Second with DPDK + Ubuntu
With Linux kernels 5.10 and beyond, we have observed periodic
underruns on systems that otherwise have no issues. These Linux kernel
versions are the default for Ubuntu 20.04.3 LTS and later. The
underrun issue is due to the |RT_RUNTIME_SHARE| feature being disabled
by default in these versions of the Linux kernel (shown as
|NO_RT_RUNTIME_SHARE|). The following procedure can be used to enable
this feature. This process was tested on Linux kernel version 5.13;
the procedure may be slightly different on other kernel versions. To
determine the Linux kernel version of your system, in a terminal issue
the command |uname -r|.
|$ sudo -s $ cd /sys/kernel/debug/sched $ cat features | tr ' ' '\n' |
grep RUNTIME_SHARE NO_RT_RUNTIME_SHARE $ echo RT_RUNTIME_SHARE >
features $ cat features | tr ' ' '\n' | grep RUNTIME_SHARE
RT_RUNTIME_SHARE|
USRP-users mailing list --usrp-users@lists.ettus.com
To unsubscribe send an email tousrp-users-leave@lists.ettus.com
I never would have suspected a kernel scheduler subtlety. But, there it is:
https://lore.kernel.org/lkml/c596a06773658d976fb839e02843a459ed4c2edf.1479204252.git.bristot@redhat.com/
It's fantastic that you found this!
On 04/11/2024 20:12, dhpanchaai@gmail.com wrote:
I got it work. It seems RT_RUNTIME_SHARE disabled was the culprit. I
re-enabled it using these instructions and the benchmark worked
without packet drops or underruns:
Underruns Every Second with DPDK + Ubuntu
With Linux kernels 5.10 and beyond, we have observed periodic
underruns on systems that otherwise have no issues. These Linux kernel
versions are the default for Ubuntu 20.04.3 LTS and later. The
underrun issue is due to the |RT_RUNTIME_SHARE| feature being disabled
by default in these versions of the Linux kernel (shown as
|NO_RT_RUNTIME_SHARE|). The following procedure can be used to enable
this feature. This process was tested on Linux kernel version 5.13;
the procedure may be slightly different on other kernel versions. To
determine the Linux kernel version of your system, in a terminal issue
the command |uname -r|.
|$ sudo -s $ cd /sys/kernel/debug/sched $ cat features | tr ' ' '\n' |
grep RUNTIME_SHARE NO_RT_RUNTIME_SHARE $ echo RT_RUNTIME_SHARE >
features $ cat features | tr ' ' '\n' | grep RUNTIME_SHARE
RT_RUNTIME_SHARE|
USRP-users mailing list --usrp-users@lists.ettus.com
To unsubscribe send an email tousrp-users-leave@lists.ettus.com
Just to fill people in, this appears in the DPDK document:
https://kb.ettus.com/Getting_Started_with_DPDK_and_UHD
But NOT in the general "Performance Tuning Tips and Tricks", which is
the one I'm most familiar with:
https://kb.ettus.com/USRP_Host_Performance_Tuning_Tips_and_Tricks
We will probably move that note on RT_RUNTIME_SHARE to the "Performance
Tuning" document, or at least
replicate it.
