Does anyone know what plugs I would buy to rig up a jtag and gpio connection on the E310? Just want to know what I would search for online or if someone can pass on a link that would be great. Could be a pig tail that I connect to something else. Thanks Jeff Long

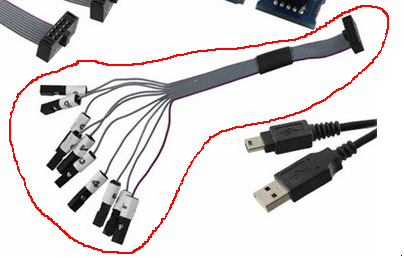

Hello Jeff: We would suggest this kit for the JTAG breakout: http://www.digikey.com/product-detail/en/ATJTAGICE3ACCKIT/ATJTAGICE3ACCKIT-ND/3719593 The board shown in Figure 1 would connect directly onto the J13 header, and the cable shown in Figure 2 would provide the "pigtail" solution. (both figures are attached to this email) Regarding GPIO, the mating connector (to J12) is Hirose DF20A-10DS-1C. We don't have a full cable assembly off-the-shelf, but one would only need the connector and some 28 or 30 gauge wires. --Neel On 7 April 2015 at 07:57, Long, Jeffrey P. via USRP-users < usrp-users@lists.ettus.com> wrote: > Does anyone know what plugs I would buy to rig up a jtag and gpio > connection on the E310? Just want to know what I would search for online or > if someone can pass on a link that would be great. Could be a pig tail that > I connect to something else. > > Thanks > > Jeff Long > > _______________________________________________ > USRP-users mailing list > USRP-users@lists.ettus.com > http://lists.ettus.com/mailman/listinfo/usrp-users_lists.ettus.com > >

Neel- Thank you this is perfect. Taking this to the next logical step how would you recommend introducing chipscope into the build flow. I have done it through the GUI and I have done it manually through the command line but I was not sure if I should try to hack your makefile or generate a GUI project and insert through that. In the past I believe your make creates a ISE project, not sure what happens with XPS now and the zynq. Thanks Jeff From: Neel Pandeya <neel.pandeya@ettus.com<mailto:neel.pandeya@ettus.com>> Date: Wednesday, April 8, 2015 at 5:36 PM To: Jeffrey Long <jplong@mitre.org<mailto:jplong@mitre.org>> Cc: "USRP-users@lists.ettus.com<mailto:USRP-users@lists.ettus.com>" <USRP-users@lists.ettus.com<mailto:USRP-users@lists.ettus.com>>, Ryan Reyes <ryan.reyes@ettus.com<mailto:ryan.reyes@ettus.com>> Subject: Re: [USRP-users] E310 jtag and gpio connector Hello Jeff: We would suggest this kit for the JTAG breakout: http://www.digikey.com/product-detail/en/ATJTAGICE3ACCKIT/ATJTAGICE3ACCKIT-ND/3719593 The board shown in Figure 1 would connect directly onto the J13 header, and the cable shown in Figure 2 would provide the "pigtail" solution. (both figures are attached to this email) Regarding GPIO, the mating connector (to J12) is Hirose DF20A-10DS-1C. We don't have a full cable assembly off-the-shelf, but one would only need the connector and some 28 or 30 gauge wires. --Neel On 7 April 2015 at 07:57, Long, Jeffrey P. via USRP-users <usrp-users@lists.ettus.com<mailto:usrp-users@lists.ettus.com>> wrote: Does anyone know what plugs I would buy to rig up a jtag and gpio connection on the E310? Just want to know what I would search for online or if someone can pass on a link that would be great. Could be a pig tail that I connect to something else. Thanks Jeff Long _______________________________________________ USRP-users mailing list USRP-users@lists.ettus.com<mailto:USRP-users@lists.ettus.com> http://lists.ettus.com/mailman/listinfo/usrp-users_lists.ettus.com

Hi Jeffrey, this is up to your personal preference. I prefer adding chipscope manually using coregen, some of my colleagues do it using the chipscope inserter. Both ways work. Cheers, Moritz On Thu, Apr 9, 2015 at 9:31 AM, Long, Jeffrey P. via USRP-users <usrp-users@lists.ettus.com> wrote: > Neel- > > Thank you this is perfect. > > Taking this to the next logical step how would you recommend introducing > chipscope into the build flow. I have done it through the GUI and I have > done it manually through the command line but I was not sure if I should try > to hack your makefile or generate a GUI project and insert through that. In > the past I believe your make creates a ISE project, not sure what happens > with XPS now and the zynq. > > Thanks > Jeff > > From: Neel Pandeya <neel.pandeya@ettus.com> > Date: Wednesday, April 8, 2015 at 5:36 PM > To: Jeffrey Long <jplong@mitre.org> > Cc: "USRP-users@lists.ettus.com" <USRP-users@lists.ettus.com>, Ryan Reyes > <ryan.reyes@ettus.com> > Subject: Re: [USRP-users] E310 jtag and gpio connector > > Hello Jeff: > > We would suggest this kit for the JTAG breakout: > > http://www.digikey.com/product-detail/en/ATJTAGICE3ACCKIT/ATJTAGICE3ACCKIT-ND/3719593 > > The board shown in Figure 1 would connect directly onto the J13 header, and > the cable shown in Figure 2 would provide the "pigtail" solution. (both > figures are attached to this email) > > Regarding GPIO, the mating connector (to J12) is Hirose DF20A-10DS-1C. We > don't have a full cable assembly off-the-shelf, but one would only need the > connector and some 28 or 30 gauge wires. > > --Neel > > > > On 7 April 2015 at 07:57, Long, Jeffrey P. via USRP-users > <usrp-users@lists.ettus.com> wrote: >> >> Does anyone know what plugs I would buy to rig up a jtag and gpio >> connection on the E310? Just want to know what I would search for online or >> if someone can pass on a link that would be great. Could be a pig tail that >> I connect to something else. >> >> Thanks >> >> Jeff Long >> >> _______________________________________________ >> USRP-users mailing list >> USRP-users@lists.ettus.com >> http://lists.ettus.com/mailman/listinfo/usrp-users_lists.ettus.com >> > > > _______________________________________________ > USRP-users mailing list > USRP-users@lists.ettus.com > http://lists.ettus.com/mailman/listinfo/usrp-users_lists.ettus.com >
