Discussion and technical support related to USRP, UHD, RFNoC
View all threadsRe: Enable AGC in USRP E320 with RFNoC using GNURadio
Ok Julian, I will check the tree node and try to modify the properties.
Thanks again for the help!
Kind Regards,
Maria
El jue, 11 mar 2021 a las 18:26, Julian Arnold (julian@elitecoding.org)
escribió:
Maria,
/self.ettus_rfnoc_rx_radio_0.set_rx_agc(False, 0)/
but I have received the following errorThat's why I gave the reference
([1]) showing the correct syntax ;)
Anyways, glad it worked out for you!
You might consider filing a bug issue against gr-ettus on github.
By the way, I have read that there are several modes for AGC
(fast,slow,hybrid..) I was wondering which type is implemented by
default and if it is possible to change AGC mode in the flowgraph.
Those modes were mainly dictated by the AD9361. Default should be
"slow". The "hybrid" mode is not implemented as far as I know.
Which mode you want ("slow" / "fast") depends on the signal you want to
receive. For burst-mode digital signals you might want to switch to the
"fast" mode.
However, I think this is only possible by directly writing
to the corresponding property-tree node. Again, I'm not sure about
UHD-4.0/gr-ettus though.
Cheers,
Julian
On 3/11/21 5:26 PM, Maria Muñoz wrote:
Hi Julian,
I have initially changed the python generated for my flowgraph with this
line:
/self.ettus_rfnoc_rx_radio_0.set_rx_agc(False, 0)/
but I have received the following error:
T/raceback (most recent call last):
File "constellation_soft_decoder.py", line 301, in <module>
main()
File "constellation_soft_decoder.py", line 277, in main
tb = top_block_cls()
File "constellation_soft_decoder.py", line 166, in init
self.ettus_rfnoc_rx_radio_0.set_rx_agc(True, 0)
AttributeError: 'rfnoc_rx_radio_sptr' object has no attribute
'set_rx_agc'/
But rfnoc_radio_impl.cc defines it:
/void rfnoc_rx_radio_impl::set_agc(const bool enable, const size_t chan)
{
return d_radio_ref->set_rx_agc(enable, chan);
}/
Searching the rfnoc_rx_radio_sptr with grep takes me to "swig" files. I
have looked at ettus_swig.py and seen that the command name is set_agc
instead of set_rx_agc:
/def set_agc(self, enable: "bool const", chan: "size_t const") -> "void":
r"""
set_agc(rfnoc_rx_radio self, bool const enable, size_t const
chan)
Enable/disable the AGC for this RX radio (if available)
"""
return _ettus_swig.rfnoc_rx_radio_set_agc(self, enable, chan)/
/
/
Changing this in the flowgraph.py seems to work!! Thanks for the help on
this! I put this information here just in case someone is stuck in the
same point.
By the way, I have read that there are several modes for AGC
(fast,slow,hybrid..) I was wondering which type is implemented by
default and if it is possible to change AGC mode in the flowgraph.
Kind Regards,
Maria
El mié, 10 mar 2021 a las 12:03, Maria Muñoz (<mamuki92@gmail.com
mailto:mamuki92@gmail.com>) escribió:
Hi Jules,
Thank you, I will try it and let you know as soon as possible.
By the way, I have checked the python generated using the UHD USRP
SOURCE block (instead of the RFNoC radio block) with AGC active and
it generates the set of AGC fine. So, as you said, it is fixed in
gr-uhd but it might still be a bug in gr-ettus.
Thanks again for the help!
Kind Regards,
Maria
El mié, 10 mar 2021 a las 11:25, Julian Arnold
(<julian@elitecoding.org <mailto:julian@elitecoding.org>>) escribió:
Maria,
So, if I understand correctly, I have to put there also
something like
"self.ettus_rfnoc_rx_radio_0.set_rx_agc(enable,0)" isn't it?
Exactly! Take a look at [1] for the correct syntax.
[1]
Let me know if that worked out for you.
Cheers,
Julian
On 3/10/21 9:59 AM, Maria Muñoz wrote:
Hi Julian,
Thanks for the quick answer.
I think you might be right about the possible bug turning on
the AGC
from GRC. I have checked the flow graph generated and there's
no
set_rx_agc enable option (I checked the c++ definition block
where this
option did appear but I hadn't look at the python generated).
The lines related to the radio in my flowgraph are these:
/self.ettus_rfnoc_rx_radio_0 = ettus.rfnoc_rx_radio(
self.rfnoc_graph,
uhd.device_addr(''),
-1,
-1)
self.ettus_rfnoc_rx_radio_0.set_rate(samp_rate)
self.ettus_rfnoc_rx_radio_0.set_antenna('RX2', 0)
self.ettus_rfnoc_rx_radio_0.set_frequency(cf, 0)
self.ettus_rfnoc_rx_radio_0.set_gain(gain, 0)
self.ettus_rfnoc_rx_radio_0.set_bandwidth(samp_rate,
self.ettus_rfnoc_rx_radio_0.set_dc_offset(True, 0)
self.ettus_rfnoc_rx_radio_0.set_iq_balance(True, 0)/
So, if I understand correctly, I have to put there also
something like
"self.ettus_rfnoc_rx_radio_0.set_rx_agc(enable,0)" isn't it?
Kind Regards,
Maria
El mié, 10 mar 2021 a las 9:16, Julian Arnold
(<julian@elitecoding.org <mailto:julian@elitecoding.org>
<mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>>>) escribió:
Maria,
I might not be the right person to answer this, as my
experience with
UHD 4.0 is relatively limited at the moment.
However, I cant tell you that the AGC on B2x0 devices is
controlled via
software (using set_rx_agc()). There is no need to
directly modify the
state of any pins of the FPGA.
I vaguely remember that there was a bug in an earlier
version of gr-uhd
(somewhere in 3.7) that made it difficult to turn on the
AGC using GRC.
That particular one is fixed in gr-uhd. Not sure about
gr-ettus, though.
Maybe try using set_rx_agc() manually in you flow-graph
(*.py) and see
if that helps.
Cheers,
Julian
On 3/9/21 5:11 PM, Maria Muñoz via USRP-users wrote:
Hi all,
I was wondering if it is possible to enable AGC from
the RFNoC radio
block in GNURadio. I use UHD 4.0 version and GNURadio
3.8 with
gr-ettus.
I see that the RFNoC Rx radio block has an
enable/disable/default
AGC
option in the GNURadio block which I assume calls the
UHD function
"set_rx_agc"
(
I have also checked on the FPGA side that there is a
pin from
FPGA to
AD9361 called XCVR_ENA_AGC which is set always to 1 on
the top
level of
the FPGA image (see attached file "e320.v", line 872).
This pin,
according to
is the "Manual Control Input for Automatic Gain
Control (AGC)".
Must be this pin set to 0 to have AGC working?
If not, how can I get AGC working? I've made some tests
enabling/disabling this option but I do not see any
changes
between the
waveforms received.
Any help would be appreciated.
Kind Regards,
Maria
USRP-users mailing list
USRP-users@lists.ettus.com
<mailto:USRP-users@lists.ettus.com>
<mailto:USRP-users@lists.ettus.com
<mailto:USRP-users@lists.ettus.com>>
Hi Julian,
I re-open this topic to ask a question about the configuration of the
ad9361 registers in GNUradio/RFNoC
As I understand, when AGC is enabled in slow mode, there are 4 configurable
thresholds (inner low, inner high, outer low, and outer high) and also 4
configurable steps to reach the zone between the inner thresholds.
I have found the configuration of these registers in
/uhd/host/lib/usrp/common/ad9361_driver/ad9361_device.cpp
and changed their values there. Then, I have recompiled uhd (make & make

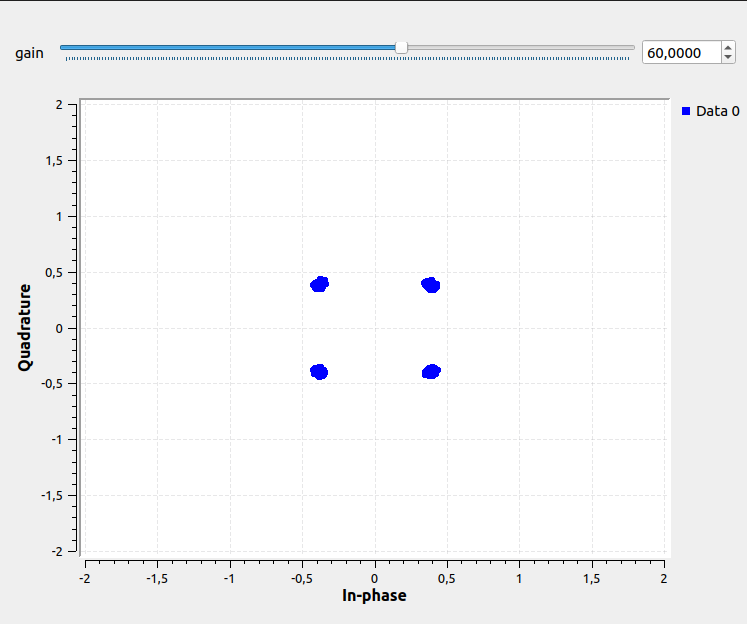

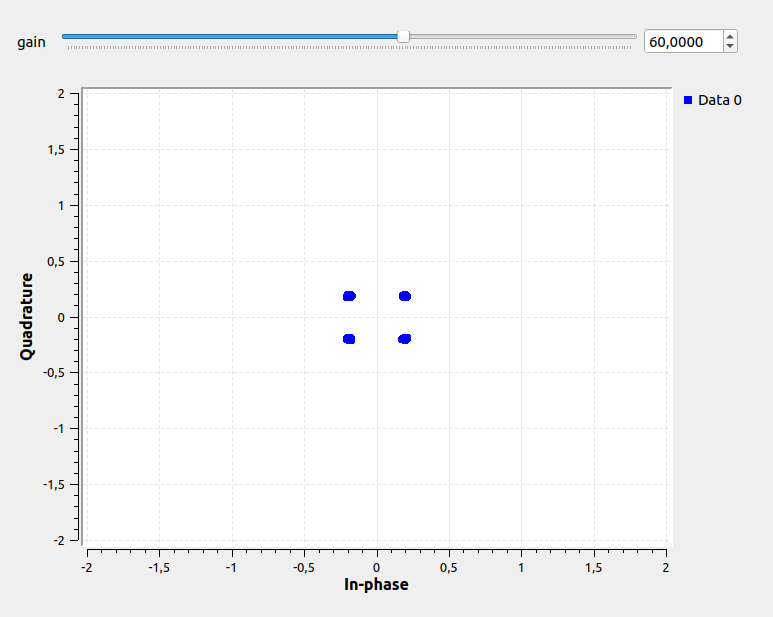

install) but, when I re-run my graph I see no change in my waveform (it
seem to stay in the same limits as the default configuration).
Am I missing any other step that I have to done to configure these
parameters?
Kind Regards,
Maria
El vie, 12 mar 2021 a las 10:04, Maria Muñoz (mamuki92@gmail.com)
escribió:
Ok Julian, I will check the tree node and try to modify the properties.
Thanks again for the help!
Kind Regards,
Maria
El jue, 11 mar 2021 a las 18:26, Julian Arnold (julian@elitecoding.org)
escribió:
Maria,
/self.ettus_rfnoc_rx_radio_0.set_rx_agc(False, 0)/
but I have received the following errorThat's why I gave the reference
([1]) showing the correct syntax ;)
Anyways, glad it worked out for you!
You might consider filing a bug issue against gr-ettus on github.
By the way, I have read that there are several modes for AGC
(fast,slow,hybrid..) I was wondering which type is implemented by
default and if it is possible to change AGC mode in the flowgraph.
Those modes were mainly dictated by the AD9361. Default should be
"slow". The "hybrid" mode is not implemented as far as I know.
Which mode you want ("slow" / "fast") depends on the signal you want to
receive. For burst-mode digital signals you might want to switch to the
"fast" mode.
However, I think this is only possible by directly writing
to the corresponding property-tree node. Again, I'm not sure about
UHD-4.0/gr-ettus though.
Cheers,
Julian
On 3/11/21 5:26 PM, Maria Muñoz wrote:
Hi Julian,
I have initially changed the python generated for my flowgraph with
this
line:
/self.ettus_rfnoc_rx_radio_0.set_rx_agc(False, 0)/
but I have received the following error:
T/raceback (most recent call last):
File "constellation_soft_decoder.py", line 301, in <module>
main()
File "constellation_soft_decoder.py", line 277, in main
tb = top_block_cls()
File "constellation_soft_decoder.py", line 166, in init
self.ettus_rfnoc_rx_radio_0.set_rx_agc(True, 0)
AttributeError: 'rfnoc_rx_radio_sptr' object has no attribute
'set_rx_agc'/
But rfnoc_radio_impl.cc defines it:
/void rfnoc_rx_radio_impl::set_agc(const bool enable, const size_t chan)
{
return d_radio_ref->set_rx_agc(enable, chan);
}/
Searching the rfnoc_rx_radio_sptr with grep takes me to "swig" files. I
have looked at ettus_swig.py and seen that the command name is set_agc
instead of set_rx_agc:
/def set_agc(self, enable: "bool const", chan: "size_t const") ->
"void":
r"""
set_agc(rfnoc_rx_radio self, bool const enable, size_t const
chan)
Enable/disable the AGC for this RX radio (if available)
"""
return _ettus_swig.rfnoc_rx_radio_set_agc(self, enable, chan)/
/
/
Changing this in the flowgraph.py seems to work!! Thanks for the help
on
this! I put this information here just in case someone is stuck in the
same point.
By the way, I have read that there are several modes for AGC
(fast,slow,hybrid..) I was wondering which type is implemented by
default and if it is possible to change AGC mode in the flowgraph.
Kind Regards,
Maria
El mié, 10 mar 2021 a las 12:03, Maria Muñoz (<mamuki92@gmail.com
mailto:mamuki92@gmail.com>) escribió:
Hi Jules,
Thank you, I will try it and let you know as soon as possible.
By the way, I have checked the python generated using the UHD USRP
SOURCE block (instead of the RFNoC radio block) with AGC active and
it generates the set of AGC fine. So, as you said, it is fixed in
gr-uhd but it might still be a bug in gr-ettus.
Thanks again for the help!
Kind Regards,
Maria
El mié, 10 mar 2021 a las 11:25, Julian Arnold
(<julian@elitecoding.org <mailto:julian@elitecoding.org>>)
escribió:
Maria,
So, if I understand correctly, I have to put there also
something like
"self.ettus_rfnoc_rx_radio_0.set_rx_agc(enable,0)" isn't it?
Exactly! Take a look at [1] for the correct syntax.
[1]
Let me know if that worked out for you.
Cheers,
Julian
On 3/10/21 9:59 AM, Maria Muñoz wrote:
Hi Julian,
Thanks for the quick answer.
I think you might be right about the possible bug turning on
the AGC
from GRC. I have checked the flow graph generated and
there's no
set_rx_agc enable option (I checked the c++ definition block
where this
option did appear but I hadn't look at the python generated).
The lines related to the radio in my flowgraph are these:
/self.ettus_rfnoc_rx_radio_0 = ettus.rfnoc_rx_radio(
self.rfnoc_graph,
uhd.device_addr(''),
-1,
-1)
self.ettus_rfnoc_rx_radio_0.set_rate(samp_rate)
self.ettus_rfnoc_rx_radio_0.set_antenna('RX2', 0)
self.ettus_rfnoc_rx_radio_0.set_frequency(cf, 0)
self.ettus_rfnoc_rx_radio_0.set_gain(gain, 0)
self.ettus_rfnoc_rx_radio_0.set_bandwidth(samp_rate, 0)
self.ettus_rfnoc_rx_radio_0.set_dc_offset(True, 0)
self.ettus_rfnoc_rx_radio_0.set_iq_balance(True, 0)/
So, if I understand correctly, I have to put there also
something like
"self.ettus_rfnoc_rx_radio_0.set_rx_agc(enable,0)" isn't it?
Kind Regards,
Maria
El mié, 10 mar 2021 a las 9:16, Julian Arnold
(<julian@elitecoding.org <mailto:julian@elitecoding.org>
<mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>>>) escribió:
Maria,
I might not be the right person to answer this, as my
experience with
UHD 4.0 is relatively limited at the moment.
However, I cant tell you that the AGC on B2x0 devices is
controlled via
software (using set_rx_agc()). There is no need to
directly modify the
state of any pins of the FPGA.
I vaguely remember that there was a bug in an earlier
version of gr-uhd
(somewhere in 3.7) that made it difficult to turn on the
AGC using GRC.
That particular one is fixed in gr-uhd. Not sure about
gr-ettus, though.
Maybe try using set_rx_agc() manually in you flow-graph
(*.py) and see
if that helps.
Cheers,
Julian
On 3/9/21 5:11 PM, Maria Muñoz via USRP-users wrote:
Hi all,
I was wondering if it is possible to enable AGC from
the RFNoC radio
block in GNURadio. I use UHD 4.0 version and GNURadio
3.8 with
gr-ettus.
I see that the RFNoC Rx radio block has an
enable/disable/default
AGC
option in the GNURadio block which I assume calls the
UHD function
"set_rx_agc"
(
I have also checked on the FPGA side that there is a
pin from
FPGA to
AD9361 called XCVR_ENA_AGC which is set always to 1 on
the top
level of
the FPGA image (see attached file "e320.v", line 872).
This pin,
according to
is the "Manual Control Input for Automatic Gain
Control (AGC)".
Must be this pin set to 0 to have AGC working?
If not, how can I get AGC working? I've made some
tests
enabling/disabling this option but I do not see any
changes
between the
waveforms received.
Any help would be appreciated.
Kind Regards,
Maria
USRP-users mailing list
USRP-users@lists.ettus.com
<mailto:USRP-users@lists.ettus.com>
<mailto:USRP-users@lists.ettus.com
<mailto:USRP-users@lists.ettus.com>>
Maria,
would you mind sharing your patch? Otherwise, it’s hard to tell what exactly is going on.
Cheers,
Julian
Am 22.03.2021 um 16:24 schrieb Maria Muñoz mamuki92@gmail.com:
Hi Julian,
I re-open this topic to ask a question about the configuration of the ad9361 registers in GNUradio/RFNoC
As I understand, when AGC is enabled in slow mode, there are 4 configurable thresholds (inner low, inner high, outer low, and outer high) and also 4 configurable steps to reach the zone between the inner thresholds.
I have found the configuration of these registers in /uhd/host/lib/usrp/common/ad9361_driver/ad9361_device.cpp and changed their values there. Then, I have recompiled uhd (make & make install) but, when I re-run my graph I see no change in my waveform (it seem to stay in the same limits as the default configuration).
Am I missing any other step that I have to done to configure these parameters?
Kind Regards,
Maria
El vie, 12 mar 2021 a las 10:04, Maria Muñoz (mamuki92@gmail.com) escribió:
Ok Julian, I will check the tree node and try to modify the properties. Thanks again for the help!
Kind Regards,
Maria
El jue, 11 mar 2021 a las 18:26, Julian Arnold (julian@elitecoding.org) escribió:
Maria,
/self.ettus_rfnoc_rx_radio_0.set_rx_agc(False, 0)/
but I have received the following errorThat's why I gave the reference ([1]) showing the correct syntax ;)
Anyways, glad it worked out for you!
You might consider filing a bug issue against gr-ettus on github.
By the way, I have read that there are several modes for AGC
(fast,slow,hybrid..) I was wondering which type is implemented by
default and if it is possible to change AGC mode in the flowgraph.
Those modes were mainly dictated by the AD9361. Default should be
"slow". The "hybrid" mode is not implemented as far as I know.
Which mode you want ("slow" / "fast") depends on the signal you want to
receive. For burst-mode digital signals you might want to switch to the
"fast" mode.
However, I think this is only possible by directly writing
to the corresponding property-tree node. Again, I'm not sure about
UHD-4.0/gr-ettus though.
Cheers,
Julian
On 3/11/21 5:26 PM, Maria Muñoz wrote:
Hi Julian,
I have initially changed the python generated for my flowgraph with this
line:
/self.ettus_rfnoc_rx_radio_0.set_rx_agc(False, 0)/
but I have received the following error:
T/raceback (most recent call last):
File "constellation_soft_decoder.py", line 301, in <module>
main()
File "constellation_soft_decoder.py", line 277, in main
tb = top_block_cls()
File "constellation_soft_decoder.py", line 166, in init
self.ettus_rfnoc_rx_radio_0.set_rx_agc(True, 0)
AttributeError: 'rfnoc_rx_radio_sptr' object has no attribute 'set_rx_agc'/
But rfnoc_radio_impl.cc defines it:
/void rfnoc_rx_radio_impl::set_agc(const bool enable, const size_t chan)
{
return d_radio_ref->set_rx_agc(enable, chan);
}/
Searching the rfnoc_rx_radio_sptr with grep takes me to "swig" files. I
have looked at ettus_swig.py and seen that the command name is set_agc
instead of set_rx_agc:
/def set_agc(self, enable: "bool const", chan: "size_t const") -> "void":
r"""
set_agc(rfnoc_rx_radio self, bool const enable, size_t const chan)
Enable/disable the AGC for this RX radio (if available)
"""
return _ettus_swig.rfnoc_rx_radio_set_agc(self, enable, chan)/
/
/
Changing this in the flowgraph.py seems to work!! Thanks for the help on
this! I put this information here just in case someone is stuck in the
same point.
By the way, I have read that there are several modes for AGC
(fast,slow,hybrid..) I was wondering which type is implemented by
default and if it is possible to change AGC mode in the flowgraph.
Kind Regards,
Maria
El mié, 10 mar 2021 a las 12:03, Maria Muñoz (<mamuki92@gmail.com
mailto:mamuki92@gmail.com>) escribió:
Hi Jules,
Thank you, I will try it and let you know as soon as possible.
By the way, I have checked the python generated using the UHD USRP
SOURCE block (instead of the RFNoC radio block) with AGC active and
it generates the set of AGC fine. So, as you said, it is fixed in
gr-uhd but it might still be a bug in gr-ettus.
Thanks again for the help!
Kind Regards,
Maria
El mié, 10 mar 2021 a las 11:25, Julian Arnold
(<julian@elitecoding.org <mailto:julian@elitecoding.org>>) escribió:
Maria,
So, if I understand correctly, I have to put there also
something like
"self.ettus_rfnoc_rx_radio_0.set_rx_agc(enable,0)" isn't it?
Exactly! Take a look at [1] for the correct syntax.
[1]
https://github.com/EttusResearch/gr-ettus/blob/1038c4ce5135a2803b53554fc4971fe3de747d9a/include/ettus/rfnoc_rx_radio.h#L97
Let me know if that worked out for you.
Cheers,
Julian
On 3/10/21 9:59 AM, Maria Muñoz wrote:
Hi Julian,
Thanks for the quick answer.
I think you might be right about the possible bug turning on
the AGC
from GRC. I have checked the flow graph generated and there's no
set_rx_agc enable option (I checked the c++ definition block
where this
option did appear but I hadn't look at the python generated).
The lines related to the radio in my flowgraph are these:
/self.ettus_rfnoc_rx_radio_0 = ettus.rfnoc_rx_radio(
self.rfnoc_graph,
uhd.device_addr(''),
-1,
-1)
self.ettus_rfnoc_rx_radio_0.set_rate(samp_rate)
self.ettus_rfnoc_rx_radio_0.set_antenna('RX2', 0)
self.ettus_rfnoc_rx_radio_0.set_frequency(cf, 0)
self.ettus_rfnoc_rx_radio_0.set_gain(gain, 0)
self.ettus_rfnoc_rx_radio_0.set_bandwidth(samp_rate, 0)
self.ettus_rfnoc_rx_radio_0.set_dc_offset(True, 0)
self.ettus_rfnoc_rx_radio_0.set_iq_balance(True, 0)/
So, if I understand correctly, I have to put there also
something like
"self.ettus_rfnoc_rx_radio_0.set_rx_agc(enable,0)" isn't it?
Kind Regards,
Maria
El mié, 10 mar 2021 a las 9:16, Julian Arnold
(<julian@elitecoding.org <mailto:julian@elitecoding.org>
<mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>>>) escribió:
Maria,
I might not be the right person to answer this, as my
experience with
UHD 4.0 is relatively limited at the moment.
However, I cant tell you that the AGC on B2x0 devices is
controlled via
software (using set_rx_agc()). There is no need to
directly modify the
state of any pins of the FPGA.
I vaguely remember that there was a bug in an earlier
version of gr-uhd
(somewhere in 3.7) that made it difficult to turn on the
AGC using GRC.
That particular one is fixed in gr-uhd. Not sure about
gr-ettus, though.
Maybe try using set_rx_agc() manually in you flow-graph
(*.py) and see
if that helps.
Cheers,
Julian
On 3/9/21 5:11 PM, Maria Muñoz via USRP-users wrote:
Hi all,
I was wondering if it is possible to enable AGC from
the RFNoC radio
block in GNURadio. I use UHD 4.0 version and GNURadio
3.8 with
gr-ettus.
I see that the RFNoC Rx radio block has an
enable/disable/default
AGC
option in the GNURadio block which I assume calls the
UHD function
"set_rx_agc"
(https://files.ettus.com/manual/classuhd_1_1usrp_1_1multi__usrp.html#abdab1f6c3775a9071b15c9805f866486)
I have also checked on the FPGA side that there is a
pin from
FPGA to
AD9361 called XCVR_ENA_AGC which is set always to 1 on
the top
level of
the FPGA image (see attached file "e320.v", line 872).
This pin,
according to
https://www.analog.com/media/en/technical-documentation/data-sheets/AD9361.pdf
is the "Manual Control Input for Automatic Gain
Control (AGC)".
Must be this pin set to 0 to have AGC working?
If not, how can I get AGC working? I've made some tests
enabling/disabling this option but I do not see any
changes
between the
waveforms received.
Any help would be appreciated.
Kind Regards,
Maria
USRP-users mailing list
USRP-users@lists.ettus.com
<mailto:USRP-users@lists.ettus.com>
<mailto:USRP-users@lists.ettus.com
<mailto:USRP-users@lists.ettus.com>>
http://lists.ettus.com/mailman/listinfo/usrp-users_lists.ettus.com
Hi Julian,
Sure.

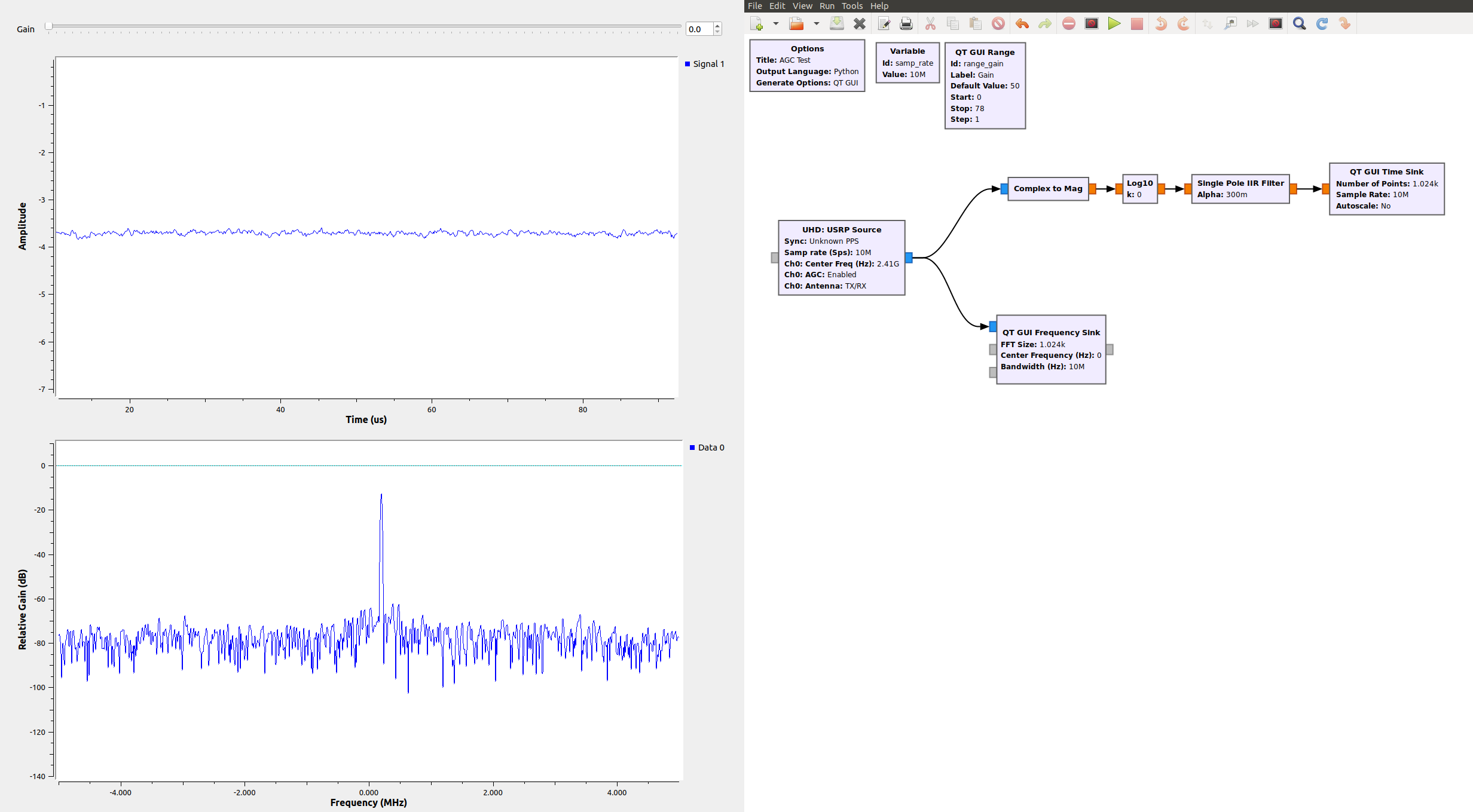

I am receiving a QPSK through the radio and plotting it in a QT graph (see
grc.png)
If I have AGC disable, I get what is shown in "test_without_agc.png", then
if I enable it, I see what is on "test_with_agc.png" where "Quadrature" is
always center more or less in 0.25 which might fit with the values given by
default (inner high threshold = -12dBFS, inner low threshold = -10 dBFS).
If I change the ad9361_device.cpp (attached) from line 1085, by changing
registers 0x101, 0x120 and 0x129 with values 0x02, 0x04 and 0x16
respectively to move between -2dbFS and -4 dBFS, I see the same waveform
that I have in "test_with_agc.png" (I expect it to be around 0.7)
Kind regards,
Maria
El lun, 22 mar 2021 a las 17:45, Julian Arnold (julian@elitecoding.org)
escribió:
Maria,
would you mind sharing your patch? Otherwise, it’s hard to tell what
exactly is going on.
Cheers,
Julian
Am 22.03.2021 um 16:24 schrieb Maria Muñoz mamuki92@gmail.com:
Hi Julian,
I re-open this topic to ask a question about the configuration of the
ad9361 registers in GNUradio/RFNoC
As I understand, when AGC is enabled in slow mode, there are 4
configurable thresholds (inner low, inner high, outer low, and outer high)
and also 4 configurable steps to reach the zone between the inner
thresholds.
I have found the configuration of these registers in /uhd/host/lib/usrp/common/ad9361_driver/ad9361_device.cpp
and changed their values there. Then, I have recompiled uhd (make & make
install) but, when I re-run my graph I see no change in my waveform (it
seem to stay in the same limits as the default configuration).
Am I missing any other step that I have to done to configure these
parameters?
Kind Regards,
Maria
El vie, 12 mar 2021 a las 10:04, Maria Muñoz (mamuki92@gmail.com)
escribió:
Ok Julian, I will check the tree node and try to modify the properties.
Thanks again for the help!
Kind Regards,
Maria
El jue, 11 mar 2021 a las 18:26, Julian Arnold (julian@elitecoding.org)
escribió:
Maria,
/self.ettus_rfnoc_rx_radio_0.set_rx_agc(False, 0)/
but I have received the following errorThat's why I gave the
reference ([1]) showing the correct syntax ;)
Anyways, glad it worked out for you!
You might consider filing a bug issue against gr-ettus on github.
By the way, I have read that there are several modes for AGC
(fast,slow,hybrid..) I was wondering which type is implemented by
default and if it is possible to change AGC mode in the flowgraph.
Those modes were mainly dictated by the AD9361. Default should be
"slow". The "hybrid" mode is not implemented as far as I know.
Which mode you want ("slow" / "fast") depends on the signal you want to
receive. For burst-mode digital signals you might want to switch to the
"fast" mode.
However, I think this is only possible by directly writing
to the corresponding property-tree node. Again, I'm not sure about
UHD-4.0/gr-ettus though.
Cheers,
Julian
On 3/11/21 5:26 PM, Maria Muñoz wrote:
Hi Julian,
I have initially changed the python generated for my flowgraph with
this
line:
/self.ettus_rfnoc_rx_radio_0.set_rx_agc(False, 0)/
but I have received the following error:
T/raceback (most recent call last):
File "constellation_soft_decoder.py", line 301, in <module>
main()
File "constellation_soft_decoder.py", line 277, in main
tb = top_block_cls()
File "constellation_soft_decoder.py", line 166, in init
self.ettus_rfnoc_rx_radio_0.set_rx_agc(True, 0)
AttributeError: 'rfnoc_rx_radio_sptr' object has no attribute
'set_rx_agc'/
But rfnoc_radio_impl.cc defines it:
/void rfnoc_rx_radio_impl::set_agc(const bool enable, const size_t
chan)
{
return d_radio_ref->set_rx_agc(enable, chan);
}/
Searching the rfnoc_rx_radio_sptr with grep takes me to "swig" files.
I
have looked at ettus_swig.py and seen that the command name is set_agc
instead of set_rx_agc:
/def set_agc(self, enable: "bool const", chan: "size_t const") ->
"void":
r"""
set_agc(rfnoc_rx_radio self, bool const enable, size_t const
chan)
Enable/disable the AGC for this RX radio (if available)
"""
return _ettus_swig.rfnoc_rx_radio_set_agc(self, enable, chan)/
/
/
Changing this in the flowgraph.py seems to work!! Thanks for the help
on
this! I put this information here just in case someone is stuck in the
same point.
By the way, I have read that there are several modes for AGC
(fast,slow,hybrid..) I was wondering which type is implemented by
default and if it is possible to change AGC mode in the flowgraph.
Kind Regards,
Maria
El mié, 10 mar 2021 a las 12:03, Maria Muñoz (<mamuki92@gmail.com
mailto:mamuki92@gmail.com>) escribió:
Hi Jules,
Thank you, I will try it and let you know as soon as possible.
By the way, I have checked the python generated using the UHD USRP
SOURCE block (instead of the RFNoC radio block) with AGC active and
it generates the set of AGC fine. So, as you said, it is fixed in
gr-uhd but it might still be a bug in gr-ettus.
Thanks again for the help!
Kind Regards,
Maria
El mié, 10 mar 2021 a las 11:25, Julian Arnold
(<julian@elitecoding.org <mailto:julian@elitecoding.org>>)
escribió:
Maria,
So, if I understand correctly, I have to put there also
something like
"self.ettus_rfnoc_rx_radio_0.set_rx_agc(enable,0)" isn't
it?
Exactly! Take a look at [1] for the correct syntax.
[1]
Let me know if that worked out for you.
Cheers,
Julian
On 3/10/21 9:59 AM, Maria Muñoz wrote:
Hi Julian,
Thanks for the quick answer.
I think you might be right about the possible bug turning on
the AGC
from GRC. I have checked the flow graph generated and
there's no
set_rx_agc enable option (I checked the c++ definition block
where this
option did appear but I hadn't look at the python
generated).
The lines related to the radio in my flowgraph are these:
/self.ettus_rfnoc_rx_radio_0 = ettus.rfnoc_rx_radio(
self.rfnoc_graph,
uhd.device_addr(''),
-1,
-1)
self.ettus_rfnoc_rx_radio_0.set_rate(samp_rate)
self.ettus_rfnoc_rx_radio_0.set_antenna('RX2', 0)
self.ettus_rfnoc_rx_radio_0.set_frequency(cf, 0)
self.ettus_rfnoc_rx_radio_0.set_gain(gain, 0)
self.ettus_rfnoc_rx_radio_0.set_bandwidth(samp_rate, 0)
self.ettus_rfnoc_rx_radio_0.set_dc_offset(True, 0)
self.ettus_rfnoc_rx_radio_0.set_iq_balance(True,
0)/
So, if I understand correctly, I have to put there also
something like
"self.ettus_rfnoc_rx_radio_0.set_rx_agc(enable,0)" isn't it?
Kind Regards,
Maria
El mié, 10 mar 2021 a las 9:16, Julian Arnold
(<julian@elitecoding.org <mailto:julian@elitecoding.org>
<mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>>>) escribió:
Maria,
I might not be the right person to answer this, as my
experience with
UHD 4.0 is relatively limited at the moment.
However, I cant tell you that the AGC on B2x0 devices is
controlled via
software (using set_rx_agc()). There is no need to
directly modify the
state of any pins of the FPGA.
I vaguely remember that there was a bug in an earlier
version of gr-uhd
(somewhere in 3.7) that made it difficult to turn on the
AGC using GRC.
That particular one is fixed in gr-uhd. Not sure about
gr-ettus, though.
Maybe try using set_rx_agc() manually in you flow-graph
(*.py) and see
if that helps.
Cheers,
Julian
On 3/9/21 5:11 PM, Maria Muñoz via USRP-users wrote:
Hi all,
I was wondering if it is possible to enable AGC from
the RFNoC radio
block in GNURadio. I use UHD 4.0 version and GNURadio
3.8 with
gr-ettus.
I see that the RFNoC Rx radio block has an
enable/disable/default
AGC
option in the GNURadio block which I assume calls the
UHD function
"set_rx_agc"
(
I have also checked on the FPGA side that there is a
pin from
FPGA to
AD9361 called XCVR_ENA_AGC which is set always to 1
on
the top
level of
the FPGA image (see attached file "e320.v", line
872).
This pin,
according to
is the "Manual Control Input for Automatic Gain
Control (AGC)".
Must be this pin set to 0 to have AGC working?
If not, how can I get AGC working? I've made some
tests
enabling/disabling this option but I do not see any
changes
between the
waveforms received.
Any help would be appreciated.
Kind Regards,
Maria
USRP-users mailing list
USRP-users@lists.ettus.com
<mailto:USRP-users@lists.ettus.com>
<mailto:USRP-users@lists.ettus.com
<mailto:USRP-users@lists.ettus.com>>
Maria,
I couldn't resist trying this myself, as your modifications seemed
reasonable.
So I did set up a simple test with a b210 connected to my siggen feeding
it with a tone of varying power at 2.4102GHz.
For the default UHD AGC settings I could confirm that the signal was
kept between -10 dBFS and -12 dBFS (20 * log10(|x|) over a pretty wide
input power range.
This was using GR 3.8 and UHD 4.0.
However, I had to modify the generate flow-graph slightly, as the AGC
was enables before the sample-rate was set (maybe double check that, too).
Afterwards, I used your settings (I did change reg 0x129 to 0x11 (1dB
+-), though).
Also those settings worked as expected and the signal was nicely kept
between -2 dBFS and -4 dBFS.
Attached is a picture of the flow-graph I used for testing. Maybe you
could also start by testing with a sine wave to verifying that your
values get applied properly.
Cheers,
Julian
On 3/22/21 6:21 PM, Maria Muñoz wrote:
Hi Julian,
Sure.
I am receiving a QPSK through the radio and plotting it in a QT graph
(see grc.png)
If I have AGC disable, I get what is shown in "test_without_agc.png",
then if I enable it, I see what is on "test_with_agc.png" where
"Quadrature" is always center more or less in 0.25 which might fit with
the values given by default (inner high threshold = -12dBFS, inner low
threshold = -10 dBFS).
If I change the ad9361_device.cpp (attached) from line 1085, by changing
registers 0x101, 0x120 and 0x129 with values 0x02, 0x04 and 0x16
respectively to move between -2dbFS and -4 dBFS, I see the same
waveform that I have in "test_with_agc.png" (I expect it to be around 0.7)
Kind regards,
Maria
El lun, 22 mar 2021 a las 17:45, Julian Arnold (<julian@elitecoding.org
mailto:julian@elitecoding.org>) escribió:
Maria,
would you mind sharing your patch? Otherwise, it’s hard to tell what
exactly is going on.
Cheers,
Julian
Am 22.03.2021 um 16:24 schrieb Maria Muñoz <mamuki92@gmail.com
<mailto:mamuki92@gmail.com>>:
Hi Julian,
I re-open this topic to ask a question about the configuration of
the ad9361 registers in GNUradio/RFNoC
As I understand, when AGC is enabled in slow mode, there are 4
configurable thresholds (inner low, inner high, outer low, and
outer high) and also 4 configurable steps to reach the zone
between the inner thresholds.
I have found the configuration of these registers
in /uhd/host/lib/usrp/common/ad9361_driver/ad9361_device.cpp
and changed their values there. Then, I have recompiled uhd (make
& make install) but, when I re-run my graph I see no change in my
waveform (it seem to stay in the same limits as the default
configuration).
Am I missing any other step that I have to done to configure these
parameters?
Kind Regards,
Maria
El vie, 12 mar 2021 a las 10:04, Maria Muñoz (<mamuki92@gmail.com
<mailto:mamuki92@gmail.com>>) escribió:
Ok Julian, I will check the tree node and try to modify the
properties. Thanks again for the help!
Kind Regards,
Maria
El jue, 11 mar 2021 a las 18:26, Julian Arnold
(<julian@elitecoding.org <mailto:julian@elitecoding.org>>)
escribió:
Maria,
/self.ettus_rfnoc_rx_radio_0.set_rx_agc(False, 0)/
but I have received the following errorThat's why I
gave the reference ([1]) showing the correct syntax ;)
Anyways, glad it worked out for you!
You might consider filing a bug issue against gr-ettus on
github.
By the way, I have read that there are several modes
for AGC
(fast,slow,hybrid..) I was wondering which type is
implemented by
default and if it is possible to change AGC mode in the
flowgraph.
Those modes were mainly dictated by the AD9361. Default
should be
"slow". The "hybrid" mode is not implemented as far as I know.
Which mode you want ("slow" / "fast") depends on the
signal you want to
receive. For burst-mode digital signals you might want to
switch to the
"fast" mode.
However, I think this is only possible by directly writing
to the corresponding property-tree node. Again, I'm not
sure about
UHD-4.0/gr-ettus though.
Cheers,
Julian
On 3/11/21 5:26 PM, Maria Muñoz wrote:
Hi Julian,
I have initially changed the python generated for my
flowgraph with this
line:
/self.ettus_rfnoc_rx_radio_0.set_rx_agc(False, 0)/
but I have received the following error:
T/raceback (most recent call last):
File "constellation_soft_decoder.py", line 301, in
<module>
main()
File "constellation_soft_decoder.py", line 277, in main
tb = top_block_cls()
File "constellation_soft_decoder.py", line 166, in
__init__
self.ettus_rfnoc_rx_radio_0.set_rx_agc(True, 0)
AttributeError: 'rfnoc_rx_radio_sptr' object has no
attribute 'set_rx_agc'/
But rfnoc_radio_impl.cc defines it:
/void rfnoc_rx_radio_impl::set_agc(const bool enable,
const size_t chan)
{
return d_radio_ref->set_rx_agc(enable, chan);
}/
Searching the rfnoc_rx_radio_sptr with grep takes me to
"swig" files. I
have looked at ettus_swig.py and seen that the command
name is set_agc
instead of set_rx_agc:
/def set_agc(self, enable: "bool const", chan: "size_t
const") -> "void":
r"""
set_agc(rfnoc_rx_radio self, bool const enable,
size_t const chan)
Enable/disable the AGC for this RX radio (if
available)
"""
return _ettus_swig.rfnoc_rx_radio_set_agc(self,
enable, chan)/
/
/
Changing this in the flowgraph.py seems to work!! Thanks
for the help on
this! I put this information here just in case someone
is stuck in the
same point.
By the way, I have read that there are several modes for
AGC
(fast,slow,hybrid..) I was wondering which type is
implemented by
default and if it is possible to change AGC mode in the
flowgraph.
Kind Regards,
Maria
El mié, 10 mar 2021 a las 12:03, Maria Muñoz
(<mamuki92@gmail.com <mailto:mamuki92@gmail.com>
<mailto:mamuki92@gmail.com
<mailto:mamuki92@gmail.com>>>) escribió:
Hi Jules,
Thank you, I will try it and let you know as soon as
possible.
By the way, I have checked the python
generated using the UHD USRP
SOURCE block (instead of the RFNoC radio block) with
AGC active and
it generates the set of AGC fine. So, as you said,
it is fixed in
gr-uhd but it might still be a bug in gr-ettus.
Thanks again for the help!
Kind Regards,
Maria
El mié, 10 mar 2021 a las 11:25, Julian Arnold
(<julian@elitecoding.org
<mailto:julian@elitecoding.org>
<mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>>>) escribió:
Maria,
>> So, if I understand correctly, I have to put
there also
something like
>>
"self.ettus_rfnoc_rx_radio_0.set_rx_agc(enable,0)" isn't it?
Exactly! Take a look at [1] for the correct syntax.
[1]
https://github.com/EttusResearch/gr-ettus/blob/1038c4ce5135a2803b53554fc4971fe3de747d9a/include/ettus/rfnoc_rx_radio.h#L97
Let me know if that worked out for you.
Cheers,
Julian
On 3/10/21 9:59 AM, Maria Muñoz wrote:
> Hi Julian,
>
> Thanks for the quick answer.
>
> I think you might be right about the possible
bug turning on
the AGC
> from GRC. I have checked the flow graph
generated and there's no
> set_rx_agc enable option (I checked the c++
definition block
where this
> option did appear but I hadn't look at the
python generated).
>
> The lines related to the radio in my
flowgraph are these:
>
> /self.ettus_rfnoc_rx_radio_0 =
ettus.rfnoc_rx_radio(
> self.rfnoc_graph,
> uhd.device_addr(''),
> -1,
> -1)
>
self.ettus_rfnoc_rx_radio_0.set_rate(samp_rate)
>
self.ettus_rfnoc_rx_radio_0.set_antenna('RX2', 0)
>
self.ettus_rfnoc_rx_radio_0.set_frequency(cf, 0)
>
self.ettus_rfnoc_rx_radio_0.set_gain(gain, 0)
>
self.ettus_rfnoc_rx_radio_0.set_bandwidth(samp_rate, 0)
>
self.ettus_rfnoc_rx_radio_0.set_dc_offset(True, 0)
>
self.ettus_rfnoc_rx_radio_0.set_iq_balance(True, 0)/
>
> So, if I understand correctly, I have to put
there also
something like
>
"self.ettus_rfnoc_rx_radio_0.set_rx_agc(enable,0)" isn't it?
>
> Kind Regards,
>
> Maria
>
> El mié, 10 mar 2021 a las 9:16, Julian Arnold
(<julian@elitecoding.org
<mailto:julian@elitecoding.org>
<mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>>
> <mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>
<mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>>>>) escribió:
>
> Maria,
>
> I might not be the right person to answer
this, as my
experience with
> UHD 4.0 is relatively limited at the moment.
>
> However, I cant tell you that the AGC on
B2x0 devices is
controlled via
> software (using set_rx_agc()). There is
no need to
directly modify the
> state of any pins of the FPGA.
>
> I vaguely remember that there was a bug
in an earlier
version of gr-uhd
> (somewhere in 3.7) that made it difficult
to turn on the
AGC using GRC.
> That particular one is fixed in gr-uhd.
Not sure about
gr-ettus, though.
>
> Maybe try using set_rx_agc() manually in
you flow-graph
(*.py) and see
> if that helps.
>
> Cheers,
> Julian
>
> On 3/9/21 5:11 PM, Maria Muñoz via
USRP-users wrote:
> > Hi all,
> >
> > I was wondering if it is possible to
enable AGC from
the RFNoC radio
> > block in GNURadio. I use UHD 4.0
version and GNURadio
3.8 with
> gr-ettus.
> >
> > I see that the RFNoC Rx radio block has an
enable/disable/default
> AGC
> > option in the GNURadio block which I
assume calls the
UHD function
> > "set_rx_agc"
> >
>
(https://files.ettus.com/manual/classuhd_1_1usrp_1_1multi__usrp.html#abdab1f6c3775a9071b15c9805f866486)
> >
> > I have also checked on the FPGA side
that there is a
pin from
> FPGA to
> > AD9361 called XCVR_ENA_AGC which is
set always to 1 on
the top
> level of
> > the FPGA image (see attached file
"e320.v", line 872).
This pin,
> > according to
> >
>
https://www.analog.com/media/en/technical-documentation/data-sheets/AD9361.pdf
>
> > is the "Manual Control Input for
Automatic Gain
Control (AGC)".
> > Must be this pin set to 0 to have AGC
working?
> > If not, how can I get AGC working?
I've made some tests
> > enabling/disabling this option but I
do not see any
changes
> between the
> > waveforms received.
> >
> > Any help would be appreciated.
> >
> > Kind Regards,
> >
> > Maria
> >
> >
_______________________________________________
> > USRP-users mailing list
> > USRP-users@lists.ettus.com
<mailto:USRP-users@lists.ettus.com>
<mailto:USRP-users@lists.ettus.com
<mailto:USRP-users@lists.ettus.com>>
<mailto:USRP-users@lists.ettus.com
<mailto:USRP-users@lists.ettus.com>
<mailto:USRP-users@lists.ettus.com
<mailto:USRP-users@lists.ettus.com>>>
> >
http://lists.ettus.com/mailman/listinfo/usrp-users_lists.ettus.com
> >
>
Hi Julian,
Thanks for the checking!
I have also checked my graph and samp_rate is setting first, so I'll try to
test it with a sine waveform as you suggested and see if that works. If
not, maybe is an RFNoC/gr-ettus problem. I'll put an issue in the gr-ettus
repository in that case.
Thanks again for your help.
Kind Regards,
Maria.
El mar, 23 mar 2021 a las 0:36, Julian Arnold (julian@elitecoding.org)
escribió:
Maria,
I couldn't resist trying this myself, as your modifications seemed
reasonable.
So I did set up a simple test with a b210 connected to my siggen feeding
it with a tone of varying power at 2.4102GHz.
For the default UHD AGC settings I could confirm that the signal was
kept between -10 dBFS and -12 dBFS (20 * log10(|x|) over a pretty wide
input power range.
This was using GR 3.8 and UHD 4.0.
However, I had to modify the generate flow-graph slightly, as the AGC
was enables before the sample-rate was set (maybe double check that, too).
Afterwards, I used your settings (I did change reg 0x129 to 0x11 (1dB
+-), though).
Also those settings worked as expected and the signal was nicely kept
between -2 dBFS and -4 dBFS.
Attached is a picture of the flow-graph I used for testing. Maybe you
could also start by testing with a sine wave to verifying that your
values get applied properly.
Cheers,
Julian
On 3/22/21 6:21 PM, Maria Muñoz wrote:
Hi Julian,
Sure.
I am receiving a QPSK through the radio and plotting it in a QT graph
(see grc.png)
If I have AGC disable, I get what is shown in "test_without_agc.png",
then if I enable it, I see what is on "test_with_agc.png" where
"Quadrature" is always center more or less in 0.25 which might fit with
the values given by default (inner high threshold = -12dBFS, inner low
threshold = -10 dBFS).
If I change the ad9361_device.cpp (attached) from line 1085, by changing
registers 0x101, 0x120 and 0x129 with values 0x02, 0x04 and 0x16
respectively to move between -2dbFS and -4 dBFS, I see the same
waveform that I have in "test_with_agc.png" (I expect it to be around
0.7)
Kind regards,
Maria
El lun, 22 mar 2021 a las 17:45, Julian Arnold (<julian@elitecoding.org
mailto:julian@elitecoding.org>) escribió:
Maria,
would you mind sharing your patch? Otherwise, it’s hard to tell what
exactly is going on.
Cheers,
Julian
Am 22.03.2021 um 16:24 schrieb Maria Muñoz <mamuki92@gmail.com
<mailto:mamuki92@gmail.com>>:
Hi Julian,
I re-open this topic to ask a question about the configuration of
the ad9361 registers in GNUradio/RFNoC
As I understand, when AGC is enabled in slow mode, there are 4
configurable thresholds (inner low, inner high, outer low, and
outer high) and also 4 configurable steps to reach the zone
between the inner thresholds.
I have found the configuration of these registers
in /uhd/host/lib/usrp/common/ad9361_driver/ad9361_device.cpp
and changed their values there. Then, I have recompiled uhd (make
& make install) but, when I re-run my graph I see no change in my
waveform (it seem to stay in the same limits as the default
configuration).
Am I missing any other step that I have to done to configure these
parameters?
Kind Regards,
Maria
El vie, 12 mar 2021 a las 10:04, Maria Muñoz (<mamuki92@gmail.com
<mailto:mamuki92@gmail.com>>) escribió:
Ok Julian, I will check the tree node and try to modify the
properties. Thanks again for the help!
Kind Regards,
Maria
El jue, 11 mar 2021 a las 18:26, Julian Arnold
(<julian@elitecoding.org <mailto:julian@elitecoding.org>>)
escribió:
Maria,
/self.ettus_rfnoc_rx_radio_0.set_rx_agc(False, 0)/
but I have received the following errorThat's why I
gave the reference ([1]) showing the correct syntax ;)
Anyways, glad it worked out for you!
You might consider filing a bug issue against gr-ettus on
github.
By the way, I have read that there are several modes
for AGC
(fast,slow,hybrid..) I was wondering which type is
implemented by
default and if it is possible to change AGC mode in the
flowgraph.
Those modes were mainly dictated by the AD9361. Default
should be
"slow". The "hybrid" mode is not implemented as far as I
know.
Which mode you want ("slow" / "fast") depends on the
signal you want to
receive. For burst-mode digital signals you might want to
switch to the
"fast" mode.
However, I think this is only possible by directly writing
to the corresponding property-tree node. Again, I'm not
sure about
UHD-4.0/gr-ettus though.
Cheers,
Julian
On 3/11/21 5:26 PM, Maria Muñoz wrote:
Hi Julian,
I have initially changed the python generated for my
flowgraph with this
line:
/self.ettus_rfnoc_rx_radio_0.set_rx_agc(False, 0)/
but I have received the following error:
T/raceback (most recent call last):
File "constellation_soft_decoder.py", line 301, in
<module>
main()
File "constellation_soft_decoder.py", line 277, in main
tb = top_block_cls()
File "constellation_soft_decoder.py", line 166, in
__init__
self.ettus_rfnoc_rx_radio_0.set_rx_agc(True, 0)
AttributeError: 'rfnoc_rx_radio_sptr' object has no
attribute 'set_rx_agc'/
But rfnoc_radio_impl.cc defines it:
/void rfnoc_rx_radio_impl::set_agc(const bool enable,
const size_t chan)
{
return d_radio_ref->set_rx_agc(enable, chan);
}/
Searching the rfnoc_rx_radio_sptr with grep takes me to
"swig" files. I
have looked at ettus_swig.py and seen that the command
name is set_agc
instead of set_rx_agc:
/def set_agc(self, enable: "bool const", chan: "size_t
const") -> "void":
r"""
set_agc(rfnoc_rx_radio self, bool const enable,
size_t const chan)
Enable/disable the AGC for this RX radio (if
available)
"""
return _ettus_swig.rfnoc_rx_radio_set_agc(self,
enable, chan)/
/
/
Changing this in the flowgraph.py seems to work!! Thanks
for the help on
this! I put this information here just in case someone
is stuck in the
same point.
By the way, I have read that there are several modes for
AGC
(fast,slow,hybrid..) I was wondering which type is
implemented by
default and if it is possible to change AGC mode in the
flowgraph.
Kind Regards,
Maria
El mié, 10 mar 2021 a las 12:03, Maria Muñoz
(<mamuki92@gmail.com <mailto:mamuki92@gmail.com>
<mailto:mamuki92@gmail.com
<mailto:mamuki92@gmail.com>>>) escribió:
Hi Jules,
Thank you, I will try it and let you know as soon as
possible.
By the way, I have checked the python
generated using the UHD USRP
SOURCE block (instead of the RFNoC radio block) with
AGC active and
it generates the set of AGC fine. So, as you said,
it is fixed in
gr-uhd but it might still be a bug in gr-ettus.
Thanks again for the help!
Kind Regards,
Maria
El mié, 10 mar 2021 a las 11:25, Julian Arnold
(<julian@elitecoding.org
<mailto:julian@elitecoding.org>
<mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>>>) escribió:
Maria,
So, if I understand correctly, I have to put
there also
something like
"self.ettus_rfnoc_rx_radio_0.set_rx_agc(enable,0)" isn't it?
Exactly! Take a look at [1] for the correct
syntax.
[1]
Let me know if that worked out for you.
Cheers,
Julian
On 3/10/21 9:59 AM, Maria Muñoz wrote:
Hi Julian,
Thanks for the quick answer.
I think you might be right about the possible
bug turning on
the AGC
from GRC. I have checked the flow graph
generated and there's no
set_rx_agc enable option (I checked the c++
definition block
where this
option did appear but I hadn't look at the
python generated).
The lines related to the radio in my
flowgraph are these:
/self.ettus_rfnoc_rx_radio_0 =
ettus.rfnoc_rx_radio(
self.rfnoc_graph,
uhd.device_addr(''),
-1,
-1)
self.ettus_rfnoc_rx_radio_0.set_rate(samp_rate)
self.ettus_rfnoc_rx_radio_0.set_antenna('RX2', 0)
self.ettus_rfnoc_rx_radio_0.set_frequency(cf, 0)
self.ettus_rfnoc_rx_radio_0.set_gain(gain, 0)
self.ettus_rfnoc_rx_radio_0.set_bandwidth(samp_rate, 0)
self.ettus_rfnoc_rx_radio_0.set_dc_offset(True, 0)
self.ettus_rfnoc_rx_radio_0.set_iq_balance(True, 0)/
So, if I understand correctly, I have to put
there also
something like
"self.ettus_rfnoc_rx_radio_0.set_rx_agc(enable,0)" isn't it?
Kind Regards,
Maria
El mié, 10 mar 2021 a las 9:16, Julian Arnold
(<julian@elitecoding.org
<mailto:julian@elitecoding.org>
<mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>>
<mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>
<mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>>>>) escribió:
Maria,
I might not be the right person to answer
this, as my
experience with
UHD 4.0 is relatively limited at the
moment.
However, I cant tell you that the AGC on
B2x0 devices is
controlled via
software (using set_rx_agc()). There is
no need to
directly modify the
state of any pins of the FPGA.
I vaguely remember that there was a bug
in an earlier
version of gr-uhd
(somewhere in 3.7) that made it difficult
to turn on the
AGC using GRC.
That particular one is fixed in gr-uhd.
Not sure about
gr-ettus, though.
Maybe try using set_rx_agc() manually in
you flow-graph
(*.py) and see
if that helps.
Cheers,
Julian
On 3/9/21 5:11 PM, Maria Muñoz via
USRP-users wrote:
Hi all,
I was wondering if it is possible to
enable AGC from
the RFNoC radio
block in GNURadio. I use UHD 4.0
version and GNURadio
3.8 with
gr-ettus.
I see that the RFNoC Rx radio block has
an
enable/disable/default
AGC
option in the GNURadio block which I
assume calls the
UHD function
"set_rx_agc"
(
I have also checked on the FPGA side
that there is a
pin from
FPGA to
AD9361 called XCVR_ENA_AGC which is
set always to 1 on
the top
level of
the FPGA image (see attached file
"e320.v", line 872).
This pin,
according to
is the "Manual Control Input for
Automatic Gain
Control (AGC)".
Must be this pin set to 0 to have AGC
working?
If not, how can I get AGC working?
I've made some tests
enabling/disabling this option but I
do not see any
changes
between the
waveforms received.
Any help would be appreciated.
Kind Regards,
Maria
_______________________________________________
USRP-users mailing list
USRP-users@lists.ettus.com
<mailto:USRP-users@lists.ettus.com>
<mailto:USRP-users@lists.ettus.com
<mailto:USRP-users@lists.ettus.com>>
<mailto:USRP-users@lists.ettus.com
<mailto:USRP-users@lists.ettus.com>
<mailto:USRP-users@lists.ettus.com
<mailto:USRP-users@lists.ettus.com>>>
Hi Julian,
I have the chance to test the AGC with a B210 and perform the same graph as
you send me but I am unable to see what you saw so I think I'm missing
something.
I also have UHD 4.0 and GNURadio 3.8 (installed by source).
The steps I take are these:
- First, I change the ad9361_device.cpp that is in uhd repository
in /uhd/host/lib/usrp/common/ad9361_driver/ad9361_device.cpp,
registers 0x101, 0x120, 0x129, 0x123 and 0x12A. - Then, I do "make" and "make install" to compile the changes in
build-host folder. - After that, I generate the python script for the GRC flow graph and
move the "set_agc" command after the "set_rate" one. - Finally, I run the python.
I can't see my waveform between the values I set. Is there something wrong
with those steps? Did you do anything else?
King Regards,
Maria
El mar, 23 mar 2021 a las 9:23, Maria Muñoz (mamuki92@gmail.com) escribió:
Hi Julian,
Thanks for the checking!
I have also checked my graph and samp_rate is setting first, so I'll try
to test it with a sine waveform as you suggested and see if that works. If
not, maybe is an RFNoC/gr-ettus problem. I'll put an issue in the gr-ettus
repository in that case.
Thanks again for your help.
Kind Regards,
Maria.
El mar, 23 mar 2021 a las 0:36, Julian Arnold (julian@elitecoding.org)
escribió:
Maria,
I couldn't resist trying this myself, as your modifications seemed
reasonable.
So I did set up a simple test with a b210 connected to my siggen feeding
it with a tone of varying power at 2.4102GHz.
For the default UHD AGC settings I could confirm that the signal was
kept between -10 dBFS and -12 dBFS (20 * log10(|x|) over a pretty wide
input power range.
This was using GR 3.8 and UHD 4.0.
However, I had to modify the generate flow-graph slightly, as the AGC
was enables before the sample-rate was set (maybe double check that, too).
Afterwards, I used your settings (I did change reg 0x129 to 0x11 (1dB
+-), though).
Also those settings worked as expected and the signal was nicely kept
between -2 dBFS and -4 dBFS.
Attached is a picture of the flow-graph I used for testing. Maybe you
could also start by testing with a sine wave to verifying that your
values get applied properly.
Cheers,
Julian
On 3/22/21 6:21 PM, Maria Muñoz wrote:
Hi Julian,
Sure.
I am receiving a QPSK through the radio and plotting it in a QT graph
(see grc.png)
If I have AGC disable, I get what is shown in "test_without_agc.png",
then if I enable it, I see what is on "test_with_agc.png" where
"Quadrature" is always center more or less in 0.25 which might fit with
the values given by default (inner high threshold = -12dBFS, inner low
threshold = -10 dBFS).
If I change the ad9361_device.cpp (attached) from line 1085, by
changing
registers 0x101, 0x120 and 0x129 with values 0x02, 0x04 and 0x16
respectively to move between -2dbFS and -4 dBFS, I see the same
waveform that I have in "test_with_agc.png" (I expect it to be around
0.7)
Kind regards,
Maria
El lun, 22 mar 2021 a las 17:45, Julian Arnold (<julian@elitecoding.org
mailto:julian@elitecoding.org>) escribió:
Maria,
would you mind sharing your patch? Otherwise, it’s hard to tell what
exactly is going on.
Cheers,
Julian
Am 22.03.2021 um 16:24 schrieb Maria Muñoz <mamuki92@gmail.com
<mailto:mamuki92@gmail.com>>:
Hi Julian,
I re-open this topic to ask a question about the configuration of
the ad9361 registers in GNUradio/RFNoC
As I understand, when AGC is enabled in slow mode, there are 4
configurable thresholds (inner low, inner high, outer low, and
outer high) and also 4 configurable steps to reach the zone
between the inner thresholds.
I have found the configuration of these registers
in /uhd/host/lib/usrp/common/ad9361_driver/ad9361_device.cpp
and changed their values there. Then, I have recompiled uhd (make
& make install) but, when I re-run my graph I see no change in my
waveform (it seem to stay in the same limits as the default
configuration).
Am I missing any other step that I have to done to configure these
parameters?
Kind Regards,
Maria
El vie, 12 mar 2021 a las 10:04, Maria Muñoz (<mamuki92@gmail.com
<mailto:mamuki92@gmail.com>>) escribió:
Ok Julian, I will check the tree node and try to modify the
properties. Thanks again for the help!
Kind Regards,
Maria
El jue, 11 mar 2021 a las 18:26, Julian Arnold
(<julian@elitecoding.org <mailto:julian@elitecoding.org>>)
escribió:
Maria,
/self.ettus_rfnoc_rx_radio_0.set_rx_agc(False, 0)/
but I have received the following errorThat's why I
gave the reference ([1]) showing the correct syntax ;)
Anyways, glad it worked out for you!
You might consider filing a bug issue against gr-ettus on
github.
By the way, I have read that there are several modes
for AGC
(fast,slow,hybrid..) I was wondering which type is
implemented by
default and if it is possible to change AGC mode in the
flowgraph.
Those modes were mainly dictated by the AD9361. Default
should be
"slow". The "hybrid" mode is not implemented as far as I
know.
Which mode you want ("slow" / "fast") depends on the
signal you want to
receive. For burst-mode digital signals you might want to
switch to the
"fast" mode.
However, I think this is only possible by directly writing
to the corresponding property-tree node. Again, I'm not
sure about
UHD-4.0/gr-ettus though.
Cheers,
Julian
On 3/11/21 5:26 PM, Maria Muñoz wrote:
Hi Julian,
I have initially changed the python generated for my
flowgraph with this
line:
/self.ettus_rfnoc_rx_radio_0.set_rx_agc(False, 0)/
but I have received the following error:
T/raceback (most recent call last):
File "constellation_soft_decoder.py", line 301, in
<module>
main()
File "constellation_soft_decoder.py", line 277, in
main
tb = top_block_cls()
File "constellation_soft_decoder.py", line 166, in
__init__
self.ettus_rfnoc_rx_radio_0.set_rx_agc(True, 0)
AttributeError: 'rfnoc_rx_radio_sptr' object has no
attribute 'set_rx_agc'/
But rfnoc_radio_impl.cc defines it:
/void rfnoc_rx_radio_impl::set_agc(const bool enable,
const size_t chan)
{
return d_radio_ref->set_rx_agc(enable, chan);
}/
Searching the rfnoc_rx_radio_sptr with grep takes me to
"swig" files. I
have looked at ettus_swig.py and seen that the command
name is set_agc
instead of set_rx_agc:
/def set_agc(self, enable: "bool const", chan: "size_t
const") -> "void":
r"""
set_agc(rfnoc_rx_radio self, bool const enable,
size_t const chan)
Enable/disable the AGC for this RX radio (if
available)
"""
return _ettus_swig.rfnoc_rx_radio_set_agc(self,
enable, chan)/
/
/
Changing this in the flowgraph.py seems to work!! Thanks
for the help on
this! I put this information here just in case someone
is stuck in the
same point.
By the way, I have read that there are several modes for
AGC
(fast,slow,hybrid..) I was wondering which type is
implemented by
default and if it is possible to change AGC mode in the
flowgraph.
Kind Regards,
Maria
El mié, 10 mar 2021 a las 12:03, Maria Muñoz
(<mamuki92@gmail.com <mailto:mamuki92@gmail.com>
<mailto:mamuki92@gmail.com
<mailto:mamuki92@gmail.com>>>) escribió:
Hi Jules,
Thank you, I will try it and let you know as soon as
possible.
By the way, I have checked the python
generated using the UHD USRP
SOURCE block (instead of the RFNoC radio block) with
AGC active and
it generates the set of AGC fine. So, as you said,
it is fixed in
gr-uhd but it might still be a bug in gr-ettus.
Thanks again for the help!
Kind Regards,
Maria
El mié, 10 mar 2021 a las 11:25, Julian Arnold
(<julian@elitecoding.org
<mailto:julian@elitecoding.org>
<mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>>>) escribió:
Maria,
So, if I understand correctly, I have to put
there also
something like
"self.ettus_rfnoc_rx_radio_0.set_rx_agc(enable,0)" isn't
it?
Exactly! Take a look at [1] for the correct
syntax.
[1]
Let me know if that worked out for you.
Cheers,
Julian
On 3/10/21 9:59 AM, Maria Muñoz wrote:
Hi Julian,
Thanks for the quick answer.
I think you might be right about the possible
bug turning on
the AGC
from GRC. I have checked the flow graph
generated and there's no
set_rx_agc enable option (I checked the c++
definition block
where this
option did appear but I hadn't look at the
python generated).
The lines related to the radio in my
flowgraph are these:
/self.ettus_rfnoc_rx_radio_0 =
ettus.rfnoc_rx_radio(
self.rfnoc_graph,
uhd.device_addr(''),
-1,
-1)
self.ettus_rfnoc_rx_radio_0.set_rate(samp_rate)
self.ettus_rfnoc_rx_radio_0.set_antenna('RX2', 0)
self.ettus_rfnoc_rx_radio_0.set_frequency(cf, 0)
self.ettus_rfnoc_rx_radio_0.set_gain(gain, 0)
self.ettus_rfnoc_rx_radio_0.set_bandwidth(samp_rate, 0)
self.ettus_rfnoc_rx_radio_0.set_dc_offset(True, 0)
self.ettus_rfnoc_rx_radio_0.set_iq_balance(True, 0)/
So, if I understand correctly, I have to put
there also
something like
"self.ettus_rfnoc_rx_radio_0.set_rx_agc(enable,0)" isn't
it?
Kind Regards,
Maria
El mié, 10 mar 2021 a las 9:16, Julian Arnold
(<julian@elitecoding.org
<mailto:julian@elitecoding.org>
<mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>>
<mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>
<mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>>>>) escribió:
Maria,
I might not be the right person to answer
this, as my
experience with
UHD 4.0 is relatively limited at the
moment.
However, I cant tell you that the AGC on
B2x0 devices is
controlled via
software (using set_rx_agc()). There is
no need to
directly modify the
state of any pins of the FPGA.
I vaguely remember that there was a bug
in an earlier
version of gr-uhd
(somewhere in 3.7) that made it difficult
to turn on the
AGC using GRC.
That particular one is fixed in gr-uhd.
Not sure about
gr-ettus, though.
Maybe try using set_rx_agc() manually in
you flow-graph
(*.py) and see
if that helps.
Cheers,
Julian
On 3/9/21 5:11 PM, Maria Muñoz via
USRP-users wrote:
Hi all,
I was wondering if it is possible to
enable AGC from
the RFNoC radio
block in GNURadio. I use UHD 4.0
version and GNURadio
3.8 with
gr-ettus.
I see that the RFNoC Rx radio block
has an
enable/disable/default
AGC
option in the GNURadio block which I
assume calls the
UHD function
"set_rx_agc"
(
I have also checked on the FPGA side
that there is a
pin from
FPGA to
AD9361 called XCVR_ENA_AGC which is
set always to 1 on
the top
level of
the FPGA image (see attached file
"e320.v", line 872).
This pin,
according to
is the "Manual Control Input for
Automatic Gain
Control (AGC)".
Must be this pin set to 0 to have AGC
working?
If not, how can I get AGC working?
I've made some tests
enabling/disabling this option but I
do not see any
changes
between the
waveforms received.
Any help would be appreciated.
Kind Regards,
Maria
_______________________________________________
USRP-users mailing list
USRP-users@lists.ettus.com
<mailto:USRP-users@lists.ettus.com>
<mailto:USRP-users@lists.ettus.com
<mailto:USRP-users@lists.ettus.com>>
<mailto:USRP-users@lists.ettus.com
<mailto:USRP-users@lists.ettus.com>
<mailto:USRP-users@lists.ettus.com
<mailto:USRP-users@lists.ettus.com>>>
Maria,
that sounds about right!
However, to make absolutely sure GNU Radio picks up the modified libuhd
you could add a print statement somewhere in your UHD code.
You could also compare your UHD install prefix to the path gr-uhd
uses for linking libuhd.
Below is the patch I used for my tests:
diff --git a/host/lib/usrp/common/ad9361_driver/ad9361_device.cpp
b/host/lib/usrp/common/ad9361_driver/ad9361_device.cpp
index 9e088871d..0e5bc86c5 100644
--- a/host/lib/usrp/common/ad9361_driver/ad9361_device.cpp
+++ b/host/lib/usrp/common/ad9361_driver/ad9361_device.cpp
@@ -1089,7 +1089,7 @@ void ad9361_device_t::_setup_gain_control(bool agc)
_io_iface->poke8(0x0FD, 0x4C); // Max Full/LMT Gain Table Index
_io_iface->poke8(0x0FE, 0x44); // Decr Step Size, Peak
Overload Time
_io_iface->poke8(0x100, 0x6F); // Max Digital Gain
-
_io_iface->poke8(0x101, 0x0A); // Max Digital Gain
-
_io_iface->poke8(0x101, 0x02); // Max Digital Gain _io_iface->poke8(0x103, 0x08); // Max Digital Gain _io_iface->poke8(0x104, 0x2F); // ADC Small Overload Threshold _io_iface->poke8(0x105, 0x3A); // ADC Large Overload Threshold
@@ -1098,14 +1098,14 @@ void ad9361_device_t::_setup_gain_control(bool agc)
_io_iface->poke8(0x108, 0x31);
_io_iface->poke8(0x111, 0x0A);
_io_iface->poke8(0x11A, 0x1C);
-
_io_iface->poke8(0x120, 0x0C);
-
_io_iface->poke8(0x120, 0x04); _io_iface->poke8(0x121, 0x44); _io_iface->poke8(0x122, 0x44); _io_iface->poke8(0x123, 0x11); _io_iface->poke8(0x124, 0xF5); _io_iface->poke8(0x125, 0x3B); _io_iface->poke8(0x128, 0x03);
-
_io_iface->poke8(0x129, 0x56);
-
_io_iface->poke8(0x129, 0x11); _io_iface->poke8(0x12A, 0x22); } else { _io_iface->poke8(0x0FA, 0xE0); // Gain Control Mode Select
Cheers,
Julian
On 3/24/21 9:59 AM, Maria Muñoz wrote:
Hi Julian,
I have the chance to test the AGC with a B210 and perform the same graph
as you send me but I am unable to see what you saw so I think I'm
missing something.
I also have UHD 4.0 and GNURadio 3.8 (installed by source).
The steps I take are these:
- First, I change the ad9361_device.cpp that is in uhd repository in
//uhd/host/lib/usrp/common/ad9361_driver/ad9361_device.cpp,
registers 0x101, 0x120, 0x129, 0x123 and 0x12A./ - Then, I do "make" and "make install" to compile the changes in
build-host folder. - After that, I generate the python script for the GRC flow graph and
move the "set_agc" command after the "set_rate" one. - Finally, I run the python.
I can't see my waveform between the values I set. Is there something
wrong with those steps? Did you do anything else?
King Regards,
Maria
/
/
El mar, 23 mar 2021 a las 9:23, Maria Muñoz (<mamuki92@gmail.com
mailto:mamuki92@gmail.com>) escribió:
Hi Julian,
Thanks for the checking!
I have also checked my graph and samp_rate is setting first, so I'll
try to test it with a sine waveform as you suggested and see if that
works. If not, maybe is an RFNoC/gr-ettus problem. I'll put an issue
in the gr-ettus repository in that case.
Thanks again for your help.
Kind Regards,
Maria.
El mar, 23 mar 2021 a las 0:36, Julian Arnold
(<julian@elitecoding.org <mailto:julian@elitecoding.org>>) escribió:
Maria,
I couldn't resist trying this myself, as your modifications seemed
reasonable.
So I did set up a simple test with a b210 connected to my siggen
feeding
it with a tone of varying power at 2.4102GHz.
For the default UHD AGC settings I could confirm that the signal
was
kept between -10 dBFS and -12 dBFS (20 * log10(|x|) over a
pretty wide
input power range.
This was using GR 3.8 and UHD 4.0.
However, I had to modify the generate flow-graph slightly, as
the AGC
was enables before the sample-rate was set (maybe double check
that, too).
Afterwards, I used your settings (I did change reg 0x129 to 0x11
(1dB
+-), though).
Also those settings worked as expected and the signal was nicely
kept
between -2 dBFS and -4 dBFS.
Attached is a picture of the flow-graph I used for testing.
Maybe you
could also start by testing with a sine wave to verifying that your
values get applied properly.
Cheers,
Julian
On 3/22/21 6:21 PM, Maria Muñoz wrote:
> Hi Julian,
>
> Sure.
>
> I am receiving a QPSK through the radio and plotting it in a
QT graph
> (see grc.png)
> If I have AGC disable, I get what is shown in
"test_without_agc.png",
> then if I enable it, I see what is on "test_with_agc.png" where
> "Quadrature" is always center more or less in 0.25 which
might fit with
> the values given by default (inner high threshold = -12dBFS,
inner low
> threshold = -10 dBFS).
>
> If I change the ad9361_device.cpp (attached) from line 1085,
by changing
> registers 0x101, 0x120 and 0x129 with values 0x02, 0x04 and 0x16
> respectively to move between -2dbFS and -4 dBFS, I see the same
> waveform that I have in "test_with_agc.png" (I expect it to
be around 0.7)
>
> Kind regards,
>
> Maria
>
> El lun, 22 mar 2021 a las 17:45, Julian Arnold
(<julian@elitecoding.org <mailto:julian@elitecoding.org>
> <mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>>>) escribió:
>
> Maria,
>
> would you mind sharing your patch? Otherwise, it’s hard
to tell what
> exactly is going on.
>
> Cheers,
> Julian
>
>> Am 22.03.2021 um 16:24 schrieb Maria Muñoz
<mamuki92@gmail.com <mailto:mamuki92@gmail.com>
>> <mailto:mamuki92@gmail.com <mailto:mamuki92@gmail.com>>>:
>>
>>
>> Hi Julian,
>>
>> I re-open this topic to ask a question about the
configuration of
>> the ad9361 registers in GNUradio/RFNoC
>>
>> As I understand, when AGC is enabled in slow mode, there
are 4
>> configurable thresholds (inner low, inner high,
outer low, and
>> outer high) and also 4 configurable steps to reach the zone
>> between the inner thresholds.
>>
>> I have found the configuration of these registers
>> in /uhd/host/lib/usrp/common/ad9361_driver/ad9361_device.cpp
>> and changed their values there. Then, I have recompiled
uhd (make
>> & make install) but, when I re-run my graph I see no
change in my
>> waveform (it seem to stay in the same limits as the default
>> configuration).
>>
>> Am I missing any other step that I have to done to
configure these
>> parameters?
>>
>> Kind Regards,
>>
>> Maria
>>
>> El vie, 12 mar 2021 a las 10:04, Maria Muñoz
(<mamuki92@gmail.com <mailto:mamuki92@gmail.com>
>> <mailto:mamuki92@gmail.com
<mailto:mamuki92@gmail.com>>>) escribió:
>>
>> Ok Julian, I will check the tree node and try to
modify the
>> properties. Thanks again for the help!
>>
>> Kind Regards,
>> Maria
>>
>> El jue, 11 mar 2021 a las 18:26, Julian Arnold
>> (<julian@elitecoding.org
<mailto:julian@elitecoding.org> <mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>>>)
>> escribió:
>>
>> Maria,
>>
>> >>
/self.ettus_rfnoc_rx_radio_0.set_rx_agc(False, 0)/
>> >>
>> >> but I have received the following errorThat's
why I
>> gave the reference ([1]) showing the correct
syntax ;)
>> Anyways, glad it worked out for you!
>> You might consider filing a bug issue against
gr-ettus on
>> github.
>>
>> >> By the way, I have read that there are
several modes
>> for AGC
>> >> (fast,slow,hybrid..) I was wondering which
type is
>> implemented by
>> >> default and if it is possible to change AGC
mode in the
>> flowgraph.
>> Those modes were mainly dictated by the AD9361.
Default
>> should be
>> "slow". The "hybrid" mode is not implemented as
far as I know.
>> Which mode you want ("slow" / "fast") depends on the
>> signal you want to
>> receive. For burst-mode digital signals you
might want to
>> switch to the
>> "fast" mode.
>> However, I think this is only possible by
directly writing
>> to the corresponding property-tree node. Again,
I'm not
>> sure about
>> UHD-4.0/gr-ettus though.
>>
>> Cheers,
>> Julian
>>
>>
>> On 3/11/21 5:26 PM, Maria Muñoz wrote:
>> > Hi Julian,
>> >
>> > I have initially changed the python generated
for my
>> flowgraph with this
>> > line:
>> >
>> > /self.ettus_rfnoc_rx_radio_0.set_rx_agc(False, 0)/
>> >
>> > but I have received the following error:
>> >
>> > T/raceback (most recent call last):
>> > File "constellation_soft_decoder.py", line
301, in
>> <module>
>> > main()
>> > File "constellation_soft_decoder.py", line
277, in main
>> > tb = top_block_cls()
>> > File "constellation_soft_decoder.py", line
166, in
>> __init__
>> >
self.ettus_rfnoc_rx_radio_0.set_rx_agc(True, 0)
>> > AttributeError: 'rfnoc_rx_radio_sptr' object
has no
>> attribute 'set_rx_agc'/
>> >
>> > But rfnoc_radio_impl.cc defines it:
>> >
>> > /void rfnoc_rx_radio_impl::set_agc(const bool
enable,
>> const size_t chan)
>> > {
>> > return d_radio_ref->set_rx_agc(enable, chan);
>> > }/
>> >
>> > Searching the rfnoc_rx_radio_sptr with grep
takes me to
>> "swig" files. I
>> > have looked at ettus_swig.py and seen that the
command
>> name is set_agc
>> > instead of set_rx_agc:
>> >
>> > /def set_agc(self, enable: "bool const", chan:
"size_t
>> const") -> "void":
>> > r"""
>> > set_agc(rfnoc_rx_radio self, bool
const enable,
>> size_t const chan)
>> > Enable/disable the AGC for this RX
radio (if
>> available)
>> > """
>> > return
_ettus_swig.rfnoc_rx_radio_set_agc(self,
>> enable, chan)/
>> > /
>> > /
>> > Changing this in the flowgraph.py seems to
work!! Thanks
>> for the help on
>> > this! I put this information here just in case
someone
>> is stuck in the
>> > same point.
>> >
>> > By the way, I have read that there are several
modes for
>> AGC
>> > (fast,slow,hybrid..) I was wondering which type is
>> implemented by
>> > default and if it is possible to change AGC
mode in the
>> flowgraph.
>> >
>> > Kind Regards,
>> >
>> > Maria
>> >
>> >
>> > El mié, 10 mar 2021 a las 12:03, Maria Muñoz
>> (<mamuki92@gmail.com <mailto:mamuki92@gmail.com>
<mailto:mamuki92@gmail.com <mailto:mamuki92@gmail.com>>
>> > <mailto:mamuki92@gmail.com
<mailto:mamuki92@gmail.com>
>> <mailto:mamuki92@gmail.com
<mailto:mamuki92@gmail.com>>>>) escribió:
>> >
>> > Hi Jules,
>> >
>> > Thank you, I will try it and let you know
as soon as
>> possible.
>> >
>> > By the way, I have checked the python
>> generated using the UHD USRP
>> > SOURCE block (instead of the RFNoC radio
block) with
>> AGC active and
>> > it generates the set of AGC fine. So, as
you said,
>> it is fixed in
>> > gr-uhd but it might still be a bug in
gr-ettus.
>> >
>> > Thanks again for the help!
>> >
>> > Kind Regards,
>> >
>> > Maria
>> >
>> > El mié, 10 mar 2021 a las 11:25, Julian Arnold
>> > (<julian@elitecoding.org
<mailto:julian@elitecoding.org>
>> <mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>>
>> <mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>
>> <mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>>>>) escribió:
>> >
>> > Maria,
>> >
>> > >> So, if I understand correctly, I
have to put
>> there also
>> > something like
>> > >>
>>
"self.ettus_rfnoc_rx_radio_0.set_rx_agc(enable,0)" isn't it?
>> >
>> > Exactly! Take a look at [1] for the
correct syntax.
>> >
>> > [1]
>> >
>>
https://github.com/EttusResearch/gr-ettus/blob/1038c4ce5135a2803b53554fc4971fe3de747d9a/include/ettus/rfnoc_rx_radio.h#L97
>> >
>> > Let me know if that worked out for you.
>> >
>> > Cheers,
>> > Julian
>> >
>> >
>> > On 3/10/21 9:59 AM, Maria Muñoz wrote:
>> > > Hi Julian,
>> > >
>> > > Thanks for the quick answer.
>> > >
>> > > I think you might be right about
the possible
>> bug turning on
>> > the AGC
>> > > from GRC. I have checked the flow graph
>> generated and there's no
>> > > set_rx_agc enable option (I checked
the c++
>> definition block
>> > where this
>> > > option did appear but I hadn't look
at the
>> python generated).
>> > >
>> > > The lines related to the radio in my
>> flowgraph are these:
>> > >
>> > > /self.ettus_rfnoc_rx_radio_0 =
>> ettus.rfnoc_rx_radio(
>> > > self.rfnoc_graph,
>> > > uhd.device_addr(''),
>> > > -1,
>> > > -1)
>> > >
>> self.ettus_rfnoc_rx_radio_0.set_rate(samp_rate)
>> > >
>> self.ettus_rfnoc_rx_radio_0.set_antenna('RX2', 0)
>> > >
>> self.ettus_rfnoc_rx_radio_0.set_frequency(cf, 0)
>> > >
>> self.ettus_rfnoc_rx_radio_0.set_gain(gain, 0)
>> > >
>>
self.ettus_rfnoc_rx_radio_0.set_bandwidth(samp_rate, 0)
>> > >
>> self.ettus_rfnoc_rx_radio_0.set_dc_offset(True, 0)
>> > >
>> self.ettus_rfnoc_rx_radio_0.set_iq_balance(True, 0)/
>> > >
>> > > So, if I understand correctly, I
have to put
>> there also
>> > something like
>> > >
>>
"self.ettus_rfnoc_rx_radio_0.set_rx_agc(enable,0)" isn't it?
>> > >
>> > > Kind Regards,
>> > >
>> > > Maria
>> > >
>> > > El mié, 10 mar 2021 a las 9:16,
Julian Arnold
>> > (<julian@elitecoding.org
<mailto:julian@elitecoding.org>
>> <mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>>
>> <mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>
>> <mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>>>
>> > > <mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>
>> <mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>>
>> > <mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>
>> <mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>>>>>) escribió:
>> > >
>> > > Maria,
>> > >
>> > > I might not be the right person
to answer
>> this, as my
>> > experience with
>> > > UHD 4.0 is relatively limited
at the moment.
>> > >
>> > > However, I cant tell you that
the AGC on
>> B2x0 devices is
>> > controlled via
>> > > software (using set_rx_agc()).
There is
>> no need to
>> > directly modify the
>> > > state of any pins of the FPGA.
>> > >
>> > > I vaguely remember that there
was a bug
>> in an earlier
>> > version of gr-uhd
>> > > (somewhere in 3.7) that made it
difficult
>> to turn on the
>> > AGC using GRC.
>> > > That particular one is fixed in
gr-uhd.
>> Not sure about
>> > gr-ettus, though.
>> > >
>> > > Maybe try using set_rx_agc()
manually in
>> you flow-graph
>> > (*.py) and see
>> > > if that helps.
>> > >
>> > > Cheers,
>> > > Julian
>> > >
>> > > On 3/9/21 5:11 PM, Maria Muñoz via
>> USRP-users wrote:
>> > > > Hi all,
>> > > >
>> > > > I was wondering if it is
possible to
>> enable AGC from
>> > the RFNoC radio
>> > > > block in GNURadio. I use UHD 4.0
>> version and GNURadio
>> > 3.8 with
>> > > gr-ettus.
>> > > >
>> > > > I see that the RFNoC Rx
radio block has an
>> > enable/disable/default
>> > > AGC
>> > > > option in the GNURadio block
which I
>> assume calls the
>> > UHD function
>> > > > "set_rx_agc"
>> > > >
>> > >
>> >
>>
(https://files.ettus.com/manual/classuhd_1_1usrp_1_1multi__usrp.html#abdab1f6c3775a9071b15c9805f866486)
>> > > >
>> > > > I have also checked on the
FPGA side
>> that there is a
>> > pin from
>> > > FPGA to
>> > > > AD9361 called XCVR_ENA_AGC
which is
>> set always to 1 on
>> > the top
>> > > level of
>> > > > the FPGA image (see attached
file
>> "e320.v", line 872).
>> > This pin,
>> > > > according to
>> > > >
>> > >
>> >
>>
https://www.analog.com/media/en/technical-documentation/data-sheets/AD9361.pdf
>> > >
>> > > > is the "Manual Control Input for
>> Automatic Gain
>> > Control (AGC)".
>> > > > Must be this pin set to 0 to
have AGC
>> working?
>> > > > If not, how can I get AGC
working?
>> I've made some tests
>> > > > enabling/disabling this
option but I
>> do not see any
>> > changes
>> > > between the
>> > > > waveforms received.
>> > > >
>> > > > Any help would be appreciated.
>> > > >
>> > > > Kind Regards,
>> > > >
>> > > > Maria
>> > > >
>> > > >
>> _______________________________________________
>> > > > USRP-users mailing list
>> > > > USRP-users@lists.ettus.com
<mailto:USRP-users@lists.ettus.com>
>> <mailto:USRP-users@lists.ettus.com
<mailto:USRP-users@lists.ettus.com>>
>> > <mailto:USRP-users@lists.ettus.com
<mailto:USRP-users@lists.ettus.com>
>> <mailto:USRP-users@lists.ettus.com
<mailto:USRP-users@lists.ettus.com>>>
>> > <mailto:USRP-users@lists.ettus.com
<mailto:USRP-users@lists.ettus.com>
>> <mailto:USRP-users@lists.ettus.com
<mailto:USRP-users@lists.ettus.com>>
>> > <mailto:USRP-users@lists.ettus.com
<mailto:USRP-users@lists.ettus.com>
>> <mailto:USRP-users@lists.ettus.com
<mailto:USRP-users@lists.ettus.com>>>>
>> > > >
>> >
>>
http://lists.ettus.com/mailman/listinfo/usrp-users_lists.ettus.com
>> > > >
>> > >
>> >
>>
Hi Julian,
Sorry for the late reply and thanks for the answer.
I have been debugging the configuration printing the entries of "set_agc"
that I have found on cpp/py files in the uhd driver and ettus repositories,
and I can confirm that the code is not getting to the ad9361_device.cpp as
I thought in the beginning.
If I go through the code from my python script to the ad9361_device.cpp
configuration file I see the following:
-
The python scripts calls for ettus.rfnoc_rx_radio.set_agc method,
which is found in ettus repository (for usrp_source is on gnuradio/uhd lib) -
The rfnoc_rx_radio class is defined in
gr-ettus/lib/rfnoc_rx_radio_impl.h, where there is also a pointer to the
radio_control class defined:
class rfnoc_rx_radio_impl : public rfnoc_rx_radio{public:
rfnoc_rx_radio_impl(::uhd::
rfnoc::noc_block_base::sptr block_ref); ~rfnoc_rx_radio_impl();
/** API ***************************************************************
*****/ double set_rate(const double rate); void set_antenna(const
std::string& antenna, const size_t chan); double set_frequency(const
double frequency, const size_t chan); void set_tune_args(const
::uhd::device_addr_t& args, const size_t chan); double set_gain(const
double gain, const size_t chan); double set_gain(const double gain,
const std::string& name, const size_t chan); void set_agc(const bool
enable, const size_t chan); void set_gain_profile(const std::string&
profile, const size_t chan); double set_bandwidth(const double
bandwidth, const size_t chan); void set_lo_source(const std::string&
source, const std::string& name, const size_t chan); void
set_lo_export_enabled(const bool enabled, const std::string& name, const
size_t chan); double set_lo_freq(const double freq, const std::string&
name, const size_t chan); void set_dc_offset(const bool enable, const
size_t chan); void set_dc_offset(const std::complex<double>& offset,
const size_t chan); void set_iq_balance(const bool enable, const size_t
chan); void set_iq_balance(const std::complex<double>& correction, const
size_t chan);private: ::uhd::rfnoc::radio_control::
sptr d_radio_ref;};
- In gr-ettus/lib/rfnoc_rx_radio_impl.cpp when set_agc command is
received, it returns a call to the pointer I mention before, and therefore,
to the radio_control class:
void rfnoc_rx_radio_impl::set_agc(
const bool enable, const size_t chan){ return
d_radio_ref->set_rx_agc(
enable, chan);}
- The radio_control class is found in the UHD driver repository in
uhd/host/include/uhd/rfnoc/radio_control.hpp which is virtually implemented
as radio_control_impl class in e3xx_radio_control_impl.cpp
(host/lib/usrp/board/e3xx) - This file calls to the ad9361_ctrl class which is implemented in
e3xx_ad9361_iface.cpp (host/lib/usrp/board/e3xx) - At this point, there is a call for the rpc_client where I get kind of
lost about how to change the registers this way:
void set_agc(const std::string& which, bool
enable){_rpcc->request_with_token<void>(this->_rpc_prefix + "set_agc",
which, enable);}
To be brief:
- When debugging I can't see that my code gets to the only configuration
file I found which is the ad9361_device.cpp - The set_agc command seems to be manage through the rpc_client (I think
this is related to the module peripheral manager which is a "layer of
control that UHD uses to access, configure and control the hardware",
https://files.ettus.com/manual/page_mpm.html) - Inside the code, in multi_usrp files there is a comment that the
specific configuration of the AGC is set in the property_tree but I don't
know how to write the configuration registers of the agc through the
property_tree.
So my questions here are:
- How can I set the configuration registers of the AGC, through the MPM
or the property tree? - Are there examples on how I can set these registers through the MPM
or the property_tree?
Kind Regards,
Maria
El mié, 24 mar 2021 a las 11:20, Julian Arnold (julian@elitecoding.org)
escribió:
Maria,
that sounds about right!
However, to make absolutely sure GNU Radio picks up the modified libuhd
you could add a print statement somewhere in your UHD code.
You could also compare your UHD install prefix to the path gr-uhd
uses for linking libuhd.
Below is the patch I used for my tests:
diff --git a/host/lib/usrp/common/ad9361_driver/ad9361_device.cpp
b/host/lib/usrp/common/ad9361_driver/ad9361_device.cpp
index 9e088871d..0e5bc86c5 100644
--- a/host/lib/usrp/common/ad9361_driver/ad9361_device.cpp
+++ b/host/lib/usrp/common/ad9361_driver/ad9361_device.cpp
@@ -1089,7 +1089,7 @@ void ad9361_device_t::_setup_gain_control(bool agc)
_io_iface->poke8(0x0FD, 0x4C); // Max Full/LMT Gain Table Index
_io_iface->poke8(0x0FE, 0x44); // Decr Step Size, Peak
Overload Time
_io_iface->poke8(0x100, 0x6F); // Max Digital Gain
-
_io_iface->poke8(0x101, 0x0A); // Max Digital Gain
-
_io_iface->poke8(0x101, 0x02); // Max Digital Gain _io_iface->poke8(0x103, 0x08); // Max Digital Gain _io_iface->poke8(0x104, 0x2F); // ADC Small Overload Threshold _io_iface->poke8(0x105, 0x3A); // ADC Large Overload Threshold
@@ -1098,14 +1098,14 @@ void ad9361_device_t::_setup_gain_control(bool agc)
_io_iface->poke8(0x108, 0x31);
_io_iface->poke8(0x111, 0x0A);
_io_iface->poke8(0x11A, 0x1C);
-
_io_iface->poke8(0x120, 0x0C);
-
_io_iface->poke8(0x120, 0x04); _io_iface->poke8(0x121, 0x44); _io_iface->poke8(0x122, 0x44); _io_iface->poke8(0x123, 0x11); _io_iface->poke8(0x124, 0xF5); _io_iface->poke8(0x125, 0x3B); _io_iface->poke8(0x128, 0x03);
-
_io_iface->poke8(0x129, 0x56);
-
_io_iface->poke8(0x129, 0x11); _io_iface->poke8(0x12A, 0x22); } else { _io_iface->poke8(0x0FA, 0xE0); // Gain Control Mode Select
Cheers,
Julian
On 3/24/21 9:59 AM, Maria Muñoz wrote:
Hi Julian,
I have the chance to test the AGC with a B210 and perform the same graph
as you send me but I am unable to see what you saw so I think I'm
missing something.
I also have UHD 4.0 and GNURadio 3.8 (installed by source).
The steps I take are these:
- First, I change the ad9361_device.cpp that is in uhd repository in
//uhd/host/lib/usrp/common/ad9361_driver/ad9361_device.cpp,
registers 0x101, 0x120, 0x129, 0x123 and 0x12A./ - Then, I do "make" and "make install" to compile the changes in
build-host folder. - After that, I generate the python script for the GRC flow graph and
move the "set_agc" command after the "set_rate" one. - Finally, I run the python.
I can't see my waveform between the values I set. Is there something
wrong with those steps? Did you do anything else?
King Regards,
Maria
/
/
El mar, 23 mar 2021 a las 9:23, Maria Muñoz (<mamuki92@gmail.com
mailto:mamuki92@gmail.com>) escribió:
Hi Julian,
Thanks for the checking!
I have also checked my graph and samp_rate is setting first, so I'll
try to test it with a sine waveform as you suggested and see if that
works. If not, maybe is an RFNoC/gr-ettus problem. I'll put an issue
in the gr-ettus repository in that case.
Thanks again for your help.
Kind Regards,
Maria.
El mar, 23 mar 2021 a las 0:36, Julian Arnold
(<julian@elitecoding.org <mailto:julian@elitecoding.org>>) escribió:
Maria,
I couldn't resist trying this myself, as your modifications
seemed
reasonable.
So I did set up a simple test with a b210 connected to my siggen
feeding
it with a tone of varying power at 2.4102GHz.
For the default UHD AGC settings I could confirm that the signal
was
kept between -10 dBFS and -12 dBFS (20 * log10(|x|) over a
pretty wide
input power range.
This was using GR 3.8 and UHD 4.0.
However, I had to modify the generate flow-graph slightly, as
the AGC
was enables before the sample-rate was set (maybe double check
that, too).
Afterwards, I used your settings (I did change reg 0x129 to 0x11
(1dB
+-), though).
Also those settings worked as expected and the signal was nicely
kept
between -2 dBFS and -4 dBFS.
Attached is a picture of the flow-graph I used for testing.
Maybe you
could also start by testing with a sine wave to verifying that
your
values get applied properly.
Cheers,
Julian
On 3/22/21 6:21 PM, Maria Muñoz wrote:
Hi Julian,
Sure.
I am receiving a QPSK through the radio and plotting it in a
QT graph
(see grc.png)
If I have AGC disable, I get what is shown in
"test_without_agc.png",
then if I enable it, I see what is on "test_with_agc.png"
where
"Quadrature" is always center more or less in 0.25 which
might fit with
the values given by default (inner high threshold = -12dBFS,
inner low
threshold = -10 dBFS).
If I change the ad9361_device.cpp (attached) from line 1085,
by changing
registers 0x101, 0x120 and 0x129 with values 0x02, 0x04 and
0x16
respectively to move between -2dbFS and -4 dBFS, I see the
same
waveform that I have in "test_with_agc.png" (I expect it to
be around 0.7)
Kind regards,
Maria
El lun, 22 mar 2021 a las 17:45, Julian Arnold
(<julian@elitecoding.org <mailto:julian@elitecoding.org>
<mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>>>) escribió:
Maria,
would you mind sharing your patch? Otherwise, it’s hard
to tell what
exactly is going on.
Cheers,
Julian
Am 22.03.2021 um 16:24 schrieb Maria Muñoz
<mamuki92@gmail.com <mailto:mamuki92@gmail.com>
<mailto:mamuki92@gmail.com <mailto:mamuki92@gmail.com
:
Hi Julian,
I re-open this topic to ask a question about the
configuration of
the ad9361 registers in GNUradio/RFNoC
As I understand, when AGC is enabled in slow mode, there
are 4
configurable thresholds (inner low, inner high,
outer low, and
outer high) and also 4 configurable steps to reach the
zone
between the inner thresholds.
I have found the configuration of these registers
in /uhd/host/lib/usrp/common/ad9361_driver/ad9361_device.cpp
and changed their values there. Then, I have recompiled
uhd (make
& make install) but, when I re-run my graph I see no
change in my
waveform (it seem to stay in the same limits as the
default
configuration).
Am I missing any other step that I have to done to
configure these
parameters?
Kind Regards,
Maria
El vie, 12 mar 2021 a las 10:04, Maria Muñoz
(<mamuki92@gmail.com <mailto:mamuki92@gmail.com>
<mailto:mamuki92@gmail.com
<mailto:mamuki92@gmail.com>>>) escribió:
Ok Julian, I will check the tree node and try to
modify the
properties. Thanks again for the help!
Kind Regards,
Maria
El jue, 11 mar 2021 a las 18:26, Julian Arnold
(<julian@elitecoding.org
<mailto:julian@elitecoding.org> <mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>>>)
escribió:
Maria,
/self.ettus_rfnoc_rx_radio_0.set_rx_agc(False, 0)/
but I have received the following errorThat's
why I
gave the reference ([1]) showing the correct
syntax ;)
Anyways, glad it worked out for you!
You might consider filing a bug issue against
gr-ettus on
github.
By the way, I have read that there are
several modes
for AGC
(fast,slow,hybrid..) I was wondering which
type is
implemented by
default and if it is possible to change AGC
mode in the
flowgraph.
Those modes were mainly dictated by the AD9361.
Default
should be
"slow". The "hybrid" mode is not implemented as
far as I know.
Which mode you want ("slow" / "fast") depends on
the
signal you want to
receive. For burst-mode digital signals you
might want to
switch to the
"fast" mode.
However, I think this is only possible by
directly writing
to the corresponding property-tree node. Again,
I'm not
sure about
UHD-4.0/gr-ettus though.
Cheers,
Julian
On 3/11/21 5:26 PM, Maria Muñoz wrote:
Hi Julian,
I have initially changed the python generated
for my
flowgraph with this
line:
/self.ettus_rfnoc_rx_radio_0.set_rx_agc(False,
0)/
but I have received the following error:
T/raceback (most recent call last):
File "constellation_soft_decoder.py", line
301, in
<module>
main()
File "constellation_soft_decoder.py", line
277, in main
tb = top_block_cls()
File "constellation_soft_decoder.py", line
166, in
__init__
self.ettus_rfnoc_rx_radio_0.set_rx_agc(True, 0)
AttributeError: 'rfnoc_rx_radio_sptr' object
has no
attribute 'set_rx_agc'/
But rfnoc_radio_impl.cc defines it:
/void rfnoc_rx_radio_impl::set_agc(const bool
enable,
const size_t chan)
{
return d_radio_ref->set_rx_agc(enable,
chan);
}/
Searching the rfnoc_rx_radio_sptr with grep
takes me to
"swig" files. I
have looked at ettus_swig.py and seen that the
command
name is set_agc
instead of set_rx_agc:
/def set_agc(self, enable: "bool const", chan:
"size_t
const") -> "void":
r"""
set_agc(rfnoc_rx_radio self, bool
const enable,
size_t const chan)
Enable/disable the AGC for this RX
radio (if
available)
"""
return
_ettus_swig.rfnoc_rx_radio_set_agc(self,
enable, chan)/
/
/
Changing this in the flowgraph.py seems to
work!! Thanks
for the help on
this! I put this information here just in case
someone
is stuck in the
same point.
By the way, I have read that there are several
modes for
AGC
(fast,slow,hybrid..) I was wondering which
type is
implemented by
default and if it is possible to change AGC
mode in the
flowgraph.
Kind Regards,
Maria
El mié, 10 mar 2021 a las 12:03, Maria Muñoz
(<mamuki92@gmail.com <mailto:mamuki92@gmail.com>
<mailto:mamuki92@gmail.com <mailto:mamuki92@gmail.com>>
<mailto:mamuki92@gmail.com
<mailto:mamuki92@gmail.com>
<mailto:mamuki92@gmail.com
<mailto:mamuki92@gmail.com>>>>) escribió:
Hi Jules,
Thank you, I will try it and let you know
as soon as
possible.
By the way, I have checked the python
generated using the UHD USRP
SOURCE block (instead of the RFNoC radio
block) with
AGC active and
it generates the set of AGC fine. So, as
you said,
it is fixed in
gr-uhd but it might still be a bug in
gr-ettus.
Thanks again for the help!
Kind Regards,
Maria
El mié, 10 mar 2021 a las 11:25, Julian
Arnold
(<julian@elitecoding.org
<mailto:julian@elitecoding.org>
<mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>>
<mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>
<mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>>>>) escribió:
Maria,
So, if I understand correctly, I
have to put
there also
something like
"self.ettus_rfnoc_rx_radio_0.set_rx_agc(enable,0)" isn't it?
Exactly! Take a look at [1] for the
correct syntax.
[1]
Let me know if that worked out for you.
Cheers,
Julian
On 3/10/21 9:59 AM, Maria Muñoz wrote:
Hi Julian,
Thanks for the quick answer.
I think you might be right about
the possible
bug turning on
the AGC
from GRC. I have checked the flow
graph
generated and there's no
set_rx_agc enable option (I checked
the c++
definition block
where this
option did appear but I hadn't look
at the
python generated).
The lines related to the radio in my
flowgraph are these:
/self.ettus_rfnoc_rx_radio_0 =
ettus.rfnoc_rx_radio(
self.rfnoc_graph,
uhd.device_addr(''),
-1,
-1)
self.ettus_rfnoc_rx_radio_0.set_rate(samp_rate)
self.ettus_rfnoc_rx_radio_0.set_antenna('RX2', 0)
self.ettus_rfnoc_rx_radio_0.set_frequency(cf, 0)
self.ettus_rfnoc_rx_radio_0.set_gain(gain, 0)
self.ettus_rfnoc_rx_radio_0.set_bandwidth(samp_rate, 0)
self.ettus_rfnoc_rx_radio_0.set_dc_offset(True,
self.ettus_rfnoc_rx_radio_0.set_iq_balance(True,
0)/
So, if I understand correctly, I
have to put
there also
something like
"self.ettus_rfnoc_rx_radio_0.set_rx_agc(enable,0)" isn't it?
Kind Regards,
Maria
El mié, 10 mar 2021 a las 9:16,
Julian Arnold
(<julian@elitecoding.org
<mailto:julian@elitecoding.org>
<mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>>
<mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>
<mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>>>
<mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>
<mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>>
<mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>
<mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>>>>>) escribió:
Maria,
I might not be the right person
to answer
this, as my
experience with
UHD 4.0 is relatively limited
at the moment.
However, I cant tell you that
the AGC on
B2x0 devices is
controlled via
software (using set_rx_agc()).
There is
no need to
directly modify the
state of any pins of the FPGA.
I vaguely remember that there
was a bug
in an earlier
version of gr-uhd
(somewhere in 3.7) that made it
difficult
to turn on the
AGC using GRC.
That particular one is fixed in
gr-uhd.
Not sure about
gr-ettus, though.
Maybe try using set_rx_agc()
manually in
you flow-graph
(*.py) and see
if that helps.
Cheers,
Julian
On 3/9/21 5:11 PM, Maria Muñoz
via
USRP-users wrote:
Hi all,
I was wondering if it is
possible to
enable AGC from
the RFNoC radio
block in GNURadio. I use UHD
4.0
version and GNURadio
3.8 with
gr-ettus.
I see that the RFNoC Rx
radio block has an
enable/disable/default
AGC
option in the GNURadio block
which I
assume calls the
UHD function
"set_rx_agc"
(
I have also checked on the
FPGA side
that there is a
pin from
FPGA to
AD9361 called XCVR_ENA_AGC
which is
set always to 1 on
the top
level of
the FPGA image (see attached
file
"e320.v", line 872).
This pin,
according to
is the "Manual Control Input
for
Automatic Gain
Control (AGC)".
Must be this pin set to 0 to
have AGC
working?
If not, how can I get AGC
working?
I've made some tests
enabling/disabling this
option but I
do not see any
changes
between the
waveforms received.
Any help would be
appreciated.
Kind Regards,
Maria
_______________________________________________
USRP-users mailing list
USRP-users@lists.ettus.com
<mailto:USRP-users@lists.ettus.com>
<mailto:USRP-users@lists.ettus.com
<mailto:USRP-users@lists.ettus.com>>
<mailto:USRP-users@lists.ettus.com
<mailto:USRP-users@lists.ettus.com>
<mailto:USRP-users@lists.ettus.com
<mailto:USRP-users@lists.ettus.com>>>
<mailto:USRP-users@lists.ettus.com
<mailto:USRP-users@lists.ettus.com>
<mailto:USRP-users@lists.ettus.com
<mailto:USRP-users@lists.ettus.com>>
<mailto:USRP-users@lists.ettus.com
<mailto:USRP-users@lists.ettus.com>
<mailto:USRP-users@lists.ettus.com
<mailto:USRP-users@lists.ettus.com>>>>
Maria,
the properties you want to change (min/max thresholds) are not exposed via the property tree. Only the mode is (slow or fast).
However, the same code that configures the AGC that worked for me on the B210 should run on the E310. The RPC client should not be involved in that case (although I’m not sure about that).
Have you tried applying my patch directly (I had slightly modified register values).
Also, could you try running your code directly on the E310 (bypassing networked-mode) to see if that makes a difference?
Cheers,
Julian
Julian Arnold, M.Sc
Am 09.04.2021 um 09:48 schrieb Maria Muñoz mamuki92@gmail.com:
Hi Julian,
Sorry for the late reply and thanks for the answer.
I have been debugging the configuration printing the entries of "set_agc" that I have found on cpp/py files in the uhd driver and ettus repositories, and I can confirm that the code is not getting to the ad9361_device.cpp as I thought in the beginning.
If I go through the code from my python script to the ad9361_device.cpp configuration file I see the following:
The python scripts calls for ettus.rfnoc_rx_radio.set_agc method, which is found in ettus repository (for usrp_source is on gnuradio/uhd lib)
The rfnoc_rx_radio class is defined in gr-ettus/lib/rfnoc_rx_radio_impl.h, where there is also a pointer to the radio_control class defined:
class rfnoc_rx_radio_impl : public rfnoc_rx_radio
{
public:
rfnoc_rx_radio_impl(::uhd::rfnoc::noc_block_base::sptr block_ref);
~rfnoc_rx_radio_impl();
/*** API *****************************************************************/
double set_rate(const double rate);
void set_antenna(const std::string& antenna, const size_t chan);
double set_frequency(const double frequency, const size_t chan);
void set_tune_args(const ::uhd::device_addr_t& args, const size_t chan);
double set_gain(const double gain, const size_t chan);
double set_gain(const double gain, const std::string& name, const size_t chan);
void set_agc(const bool enable, const size_t chan);
void set_gain_profile(const std::string& profile, const size_t chan);
double set_bandwidth(const double bandwidth, const size_t chan);
void
set_lo_source(const std::string& source, const std::string& name, const size_t chan);
void
set_lo_export_enabled(const bool enabled, const std::string& name, const size_t chan);
double set_lo_freq(const double freq, const std::string& name, const size_t chan);
void set_dc_offset(const bool enable, const size_t chan);
void set_dc_offset(const std::complex<double>& offset, const size_t chan);
void set_iq_balance(const bool enable, const size_t chan);
void set_iq_balance(const std::complex<double>& correction, const size_t chan);
private:
::uhd::rfnoc::radio_control::sptr d_radio_ref;
};
In gr-ettus/lib/rfnoc_rx_radio_impl.cpp when set_agc command is received, it returns a call to the pointer I mention before, and therefore, to the radio_control class:
void rfnoc_rx_radio_impl::set_agc(const bool enable, const size_t chan)
{
return d_radio_ref->set_rx_agc(enable, chan);
}
The radio_control class is found in the UHD driver repository in uhd/host/include/uhd/rfnoc/radio_control.hpp which is virtually implemented as radio_control_impl class in e3xx_radio_control_impl.cpp (host/lib/usrp/board/e3xx)
This file calls to the ad9361_ctrl class which is implemented in e3xx_ad9361_iface.cpp (host/lib/usrp/board/e3xx)
At this point, there is a call for the rpc_client where I get kind of lost about how to change the registers this way:
void set_agc(const std::string& which, bool enable)
{
_rpcc->request_with_token<void>(this->_rpc_prefix + "set_agc", which, enable);
}
To be brief:
When debugging I can't see that my code gets to the only configuration file I found which is the ad9361_device.cpp
The set_agc command seems to be manage through the rpc_client (I think this is related to the module peripheral manager which is a "layer of control that UHD uses to access, configure and control the hardware", https://files.ettus.com/manual/page_mpm.html)
Inside the code, in multi_usrp files there is a comment that the specific configuration of the AGC is set in the property_tree but I don't know how to write the configuration registers of the agc through the property_tree.
So my questions here are:
How can I set the configuration registers of the AGC, through the MPM or the property tree?
Are there examples on how I can set these registers through the MPM or the property_tree?
Kind Regards,
Maria
El mié, 24 mar 2021 a las 11:20, Julian Arnold (julian@elitecoding.org) escribió:
Maria,
that sounds about right!
However, to make absolutely sure GNU Radio picks up the modified libuhd
you could add a print statement somewhere in your UHD code.
You could also compare your UHD install prefix to the path gr-uhd
uses for linking libuhd.
Below is the patch I used for my tests:
diff --git a/host/lib/usrp/common/ad9361_driver/ad9361_device.cpp
b/host/lib/usrp/common/ad9361_driver/ad9361_device.cpp
index 9e088871d..0e5bc86c5 100644
--- a/host/lib/usrp/common/ad9361_driver/ad9361_device.cpp
+++ b/host/lib/usrp/common/ad9361_driver/ad9361_device.cpp
@@ -1089,7 +1089,7 @@ void ad9361_device_t::_setup_gain_control(bool agc)
_io_iface->poke8(0x0FD, 0x4C); // Max Full/LMT Gain Table Index
_io_iface->poke8(0x0FE, 0x44); // Decr Step Size, Peak
Overload Time
_io_iface->poke8(0x100, 0x6F); // Max Digital Gain
-
_io_iface->poke8(0x101, 0x0A); // Max Digital Gain
-
_io_iface->poke8(0x101, 0x02); // Max Digital Gain _io_iface->poke8(0x103, 0x08); // Max Digital Gain _io_iface->poke8(0x104, 0x2F); // ADC Small Overload Threshold _io_iface->poke8(0x105, 0x3A); // ADC Large Overload Threshold
@@ -1098,14 +1098,14 @@ void ad9361_device_t::_setup_gain_control(bool agc)
_io_iface->poke8(0x108, 0x31);
_io_iface->poke8(0x111, 0x0A);
_io_iface->poke8(0x11A, 0x1C);
-
_io_iface->poke8(0x120, 0x0C);
-
_io_iface->poke8(0x120, 0x04); _io_iface->poke8(0x121, 0x44); _io_iface->poke8(0x122, 0x44); _io_iface->poke8(0x123, 0x11); _io_iface->poke8(0x124, 0xF5); _io_iface->poke8(0x125, 0x3B); _io_iface->poke8(0x128, 0x03);
-
_io_iface->poke8(0x129, 0x56);
-
_io_iface->poke8(0x129, 0x11); _io_iface->poke8(0x12A, 0x22); } else { _io_iface->poke8(0x0FA, 0xE0); // Gain Control Mode Select
Cheers,
Julian
On 3/24/21 9:59 AM, Maria Muñoz wrote:
Hi Julian,
I have the chance to test the AGC with a B210 and perform the same graph
as you send me but I am unable to see what you saw so I think I'm
missing something.
I also have UHD 4.0 and GNURadio 3.8 (installed by source).
The steps I take are these:
- First, I change the ad9361_device.cpp that is in uhd repository in
//uhd/host/lib/usrp/common/ad9361_driver/ad9361_device.cpp,
registers 0x101, 0x120, 0x129, 0x123 and 0x12A./ - Then, I do "make" and "make install" to compile the changes in
build-host folder. - After that, I generate the python script for the GRC flow graph and
move the "set_agc" command after the "set_rate" one. - Finally, I run the python.
I can't see my waveform between the values I set. Is there something
wrong with those steps? Did you do anything else?
King Regards,
Maria
/
/
El mar, 23 mar 2021 a las 9:23, Maria Muñoz (<mamuki92@gmail.com
mailto:mamuki92@gmail.com>) escribió:
Hi Julian,
Thanks for the checking!
I have also checked my graph and samp_rate is setting first, so I'll
try to test it with a sine waveform as you suggested and see if that
works. If not, maybe is an RFNoC/gr-ettus problem. I'll put an issue
in the gr-ettus repository in that case.
Thanks again for your help.
Kind Regards,
Maria.
El mar, 23 mar 2021 a las 0:36, Julian Arnold
(<julian@elitecoding.org <mailto:julian@elitecoding.org>>) escribió:
Maria,
I couldn't resist trying this myself, as your modifications seemed
reasonable.
So I did set up a simple test with a b210 connected to my siggen
feeding
it with a tone of varying power at 2.4102GHz.
For the default UHD AGC settings I could confirm that the signal
was
kept between -10 dBFS and -12 dBFS (20 * log10(|x|) over a
pretty wide
input power range.
This was using GR 3.8 and UHD 4.0.
However, I had to modify the generate flow-graph slightly, as
the AGC
was enables before the sample-rate was set (maybe double check
that, too).
Afterwards, I used your settings (I did change reg 0x129 to 0x11
(1dB
+-), though).
Also those settings worked as expected and the signal was nicely
kept
between -2 dBFS and -4 dBFS.
Attached is a picture of the flow-graph I used for testing.
Maybe you
could also start by testing with a sine wave to verifying that your
values get applied properly.
Cheers,
Julian
On 3/22/21 6:21 PM, Maria Muñoz wrote:
Hi Julian,
Sure.
I am receiving a QPSK through the radio and plotting it in a
QT graph
(see grc.png)
If I have AGC disable, I get what is shown in
"test_without_agc.png",
then if I enable it, I see what is on "test_with_agc.png" where
"Quadrature" is always center more or less in 0.25 which
might fit with
the values given by default (inner high threshold = -12dBFS,
inner low
threshold = -10 dBFS).
If I change the ad9361_device.cpp (attached) from line 1085,
by changing
registers 0x101, 0x120 and 0x129 with values 0x02, 0x04 and 0x16
respectively to move between -2dbFS and -4 dBFS, I see the same
waveform that I have in "test_with_agc.png" (I expect it to
be around 0.7)
Kind regards,
Maria
El lun, 22 mar 2021 a las 17:45, Julian Arnold
(<julian@elitecoding.org <mailto:julian@elitecoding.org>
<mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>>>) escribió:
Maria,
would you mind sharing your patch? Otherwise, it’s hard
to tell what
exactly is going on.
Cheers,
Julian
Am 22.03.2021 um 16:24 schrieb Maria Muñoz
<mamuki92@gmail.com <mailto:mamuki92@gmail.com>
<mailto:mamuki92@gmail.com <mailto:mamuki92@gmail.com>>>:
Hi Julian,
I re-open this topic to ask a question about the
configuration of
the ad9361 registers in GNUradio/RFNoC
As I understand, when AGC is enabled in slow mode, there
are 4
configurable thresholds (inner low, inner high,
outer low, and
outer high) and also 4 configurable steps to reach the zone
between the inner thresholds.
I have found the configuration of these registers
in /uhd/host/lib/usrp/common/ad9361_driver/ad9361_device.cpp
and changed their values there. Then, I have recompiled
uhd (make
& make install) but, when I re-run my graph I see no
change in my
waveform (it seem to stay in the same limits as the default
configuration).
Am I missing any other step that I have to done to
configure these
parameters?
Kind Regards,
Maria
El vie, 12 mar 2021 a las 10:04, Maria Muñoz
(<mamuki92@gmail.com <mailto:mamuki92@gmail.com>
<mailto:mamuki92@gmail.com
<mailto:mamuki92@gmail.com>>>) escribió:
Ok Julian, I will check the tree node and try to
modify the
properties. Thanks again for the help!
Kind Regards,
Maria
El jue, 11 mar 2021 a las 18:26, Julian Arnold
(<julian@elitecoding.org
<mailto:julian@elitecoding.org> <mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>>>)
escribió:
Maria,
/self.ettus_rfnoc_rx_radio_0.set_rx_agc(False, 0)/
but I have received the following errorThat's
why I
gave the reference ([1]) showing the correct
syntax ;)
Anyways, glad it worked out for you!
You might consider filing a bug issue against
gr-ettus on
github.
By the way, I have read that there are
several modes
for AGC
(fast,slow,hybrid..) I was wondering which
type is
implemented by
default and if it is possible to change AGC
mode in the
flowgraph.
Those modes were mainly dictated by the AD9361.
Default
should be
"slow". The "hybrid" mode is not implemented as
far as I know.
Which mode you want ("slow" / "fast") depends on the
signal you want to
receive. For burst-mode digital signals you
might want to
switch to the
"fast" mode.
However, I think this is only possible by
directly writing
to the corresponding property-tree node. Again,
I'm not
sure about
UHD-4.0/gr-ettus though.
Cheers,
Julian
On 3/11/21 5:26 PM, Maria Muñoz wrote:
Hi Julian,
I have initially changed the python generated
for my
flowgraph with this
line:
/self.ettus_rfnoc_rx_radio_0.set_rx_agc(False, 0)/
but I have received the following error:
T/raceback (most recent call last):
File "constellation_soft_decoder.py", line
301, in
<module>
main()
File "constellation_soft_decoder.py", line
277, in main
tb = top_block_cls()
File "constellation_soft_decoder.py", line
166, in
__init__
self.ettus_rfnoc_rx_radio_0.set_rx_agc(True, 0)
AttributeError: 'rfnoc_rx_radio_sptr' object
has no
attribute 'set_rx_agc'/
But rfnoc_radio_impl.cc defines it:
/void rfnoc_rx_radio_impl::set_agc(const bool
enable,
const size_t chan)
{
return d_radio_ref->set_rx_agc(enable, chan);
}/
Searching the rfnoc_rx_radio_sptr with grep
takes me to
"swig" files. I
have looked at ettus_swig.py and seen that the
command
name is set_agc
instead of set_rx_agc:
/def set_agc(self, enable: "bool const", chan:
"size_t
const") -> "void":
r"""
set_agc(rfnoc_rx_radio self, bool
const enable,
size_t const chan)
Enable/disable the AGC for this RX
radio (if
available)
"""
return
_ettus_swig.rfnoc_rx_radio_set_agc(self,
enable, chan)/
/
/
Changing this in the flowgraph.py seems to
work!! Thanks
for the help on
this! I put this information here just in case
someone
is stuck in the
same point.
By the way, I have read that there are several
modes for
AGC
(fast,slow,hybrid..) I was wondering which type is
implemented by
default and if it is possible to change AGC
mode in the
flowgraph.
Kind Regards,
Maria
El mié, 10 mar 2021 a las 12:03, Maria Muñoz
(<mamuki92@gmail.com <mailto:mamuki92@gmail.com>
<mailto:mamuki92@gmail.com <mailto:mamuki92@gmail.com>>
<mailto:mamuki92@gmail.com
<mailto:mamuki92@gmail.com>
<mailto:mamuki92@gmail.com
<mailto:mamuki92@gmail.com>>>>) escribió:
Hi Jules,
Thank you, I will try it and let you know
as soon as
possible.
By the way, I have checked the python
generated using the UHD USRP
SOURCE block (instead of the RFNoC radio
block) with
AGC active and
it generates the set of AGC fine. So, as
you said,
it is fixed in
gr-uhd but it might still be a bug in
gr-ettus.
Thanks again for the help!
Kind Regards,
Maria
El mié, 10 mar 2021 a las 11:25, Julian Arnold
(<julian@elitecoding.org
<mailto:julian@elitecoding.org>
<mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>>
<mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>
<mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>>>>) escribió:
Maria,
So, if I understand correctly, I
have to put
there also
something like
"self.ettus_rfnoc_rx_radio_0.set_rx_agc(enable,0)" isn't it?
Exactly! Take a look at [1] for the
correct syntax.
[1]
https://github.com/EttusResearch/gr-ettus/blob/1038c4ce5135a2803b53554fc4971fe3de747d9a/include/ettus/rfnoc_rx_radio.h#L97
Let me know if that worked out for you.
Cheers,
Julian
On 3/10/21 9:59 AM, Maria Muñoz wrote:
Hi Julian,
Thanks for the quick answer.
I think you might be right about
the possible
bug turning on
the AGC
from GRC. I have checked the flow graph
generated and there's no
set_rx_agc enable option (I checked
the c++
definition block
where this
option did appear but I hadn't look
at the
python generated).
The lines related to the radio in my
flowgraph are these:
/self.ettus_rfnoc_rx_radio_0 =
ettus.rfnoc_rx_radio(
self.rfnoc_graph,
uhd.device_addr(''),
-1,
-1)
self.ettus_rfnoc_rx_radio_0.set_rate(samp_rate)
self.ettus_rfnoc_rx_radio_0.set_antenna('RX2', 0)
self.ettus_rfnoc_rx_radio_0.set_frequency(cf, 0)
self.ettus_rfnoc_rx_radio_0.set_gain(gain, 0)
self.ettus_rfnoc_rx_radio_0.set_bandwidth(samp_rate, 0)
self.ettus_rfnoc_rx_radio_0.set_dc_offset(True, 0)
self.ettus_rfnoc_rx_radio_0.set_iq_balance(True, 0)/
So, if I understand correctly, I
have to put
there also
something like
"self.ettus_rfnoc_rx_radio_0.set_rx_agc(enable,0)" isn't it?
Kind Regards,
Maria
El mié, 10 mar 2021 a las 9:16,
Julian Arnold
(<julian@elitecoding.org
<mailto:julian@elitecoding.org>
<mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>>
<mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>
<mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>>>
<mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>
<mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>>
<mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>
<mailto:julian@elitecoding.org
<mailto:julian@elitecoding.org>>>>>) escribió:
Maria,
I might not be the right person
to answer
this, as my
experience with
UHD 4.0 is relatively limited
at the moment.
However, I cant tell you that
the AGC on
B2x0 devices is
controlled via
software (using set_rx_agc()).
There is
no need to
directly modify the
state of any pins of the FPGA.
I vaguely remember that there
was a bug
in an earlier
version of gr-uhd
(somewhere in 3.7) that made it
difficult
to turn on the
AGC using GRC.
That particular one is fixed in
gr-uhd.
Not sure about
gr-ettus, though.
Maybe try using set_rx_agc()
manually in
you flow-graph
(*.py) and see
if that helps.
Cheers,
Julian
On 3/9/21 5:11 PM, Maria Muñoz via
USRP-users wrote:
Hi all,
I was wondering if it is
possible to
enable AGC from
the RFNoC radio
block in GNURadio. I use UHD 4.0
version and GNURadio
3.8 with
gr-ettus.
I see that the RFNoC Rx
radio block has an
enable/disable/default
AGC
option in the GNURadio block
which I
assume calls the
UHD function
"set_rx_agc"
(https://files.ettus.com/manual/classuhd_1_1usrp_1_1multi__usrp.html#abdab1f6c3775a9071b15c9805f866486)
I have also checked on the
FPGA side
that there is a
pin from
FPGA to
AD9361 called XCVR_ENA_AGC
which is
set always to 1 on
the top
level of
the FPGA image (see attached
file
"e320.v", line 872).
This pin,
according to
https://www.analog.com/media/en/technical-documentation/data-sheets/AD9361.pdf
is the "Manual Control Input for
Automatic Gain
Control (AGC)".
Must be this pin set to 0 to
have AGC
working?
If not, how can I get AGC
working?
I've made some tests
enabling/disabling this
option but I
do not see any
changes
between the
waveforms received.
Any help would be appreciated.
Kind Regards,
Maria
_______________________________________________
USRP-users mailing list
USRP-users@lists.ettus.com
<mailto:USRP-users@lists.ettus.com>
<mailto:USRP-users@lists.ettus.com
<mailto:USRP-users@lists.ettus.com>>
<mailto:USRP-users@lists.ettus.com
<mailto:USRP-users@lists.ettus.com>
<mailto:USRP-users@lists.ettus.com
<mailto:USRP-users@lists.ettus.com>>>
<mailto:USRP-users@lists.ettus.com
<mailto:USRP-users@lists.ettus.com>
<mailto:USRP-users@lists.ettus.com
<mailto:USRP-users@lists.ettus.com>>
<mailto:USRP-users@lists.ettus.com
<mailto:USRP-users@lists.ettus.com>
<mailto:USRP-users@lists.ettus.com
<mailto:USRP-users@lists.ettus.com>>>>
http://lists.ettus.com/mailman/listinfo/usrp-users_lists.ettus.com
