View all threadsHow to use External LO on N310 device?
I agree. The code that was sent includes an explicit call to set_tx_lo_source. But it needs to also appear in the device arguments.
Sent from my iPhone
On Dec 8, 2021, at 12:14 PM, Rob Kossler rkossler@nd.edu wrote:
I searched the code for "rx_lo_source=external" and "tx_lo_source=external", but didn't find anything related. It seems that the device args should include these.
On Wed, Dec 8, 2021 at 11:02 AM Marcus D. Leech patchvonbraun@gmail.com wrote:
On 2021-12-08 02:05, zeyuan.li@zengyi-tech.com wrote:
I do not set TX or RX.This is my python code.Please give me some suggestions.
Thinks.
Ah, you're using Gnu Radio. I'll have to think about how to meet the constraints of external-LO use when using Gnu Radio.
Has anyone else done this?
USRP-users mailing list -- usrp-users@lists.ettus.com
To unsubscribe send an email to usrp-users-leave@lists.ettus.com
Marcus，Rob：
Is such as that I used GNU Radio Software.Could you please show me an example code to use N310 External LO ?
I want to control sent singal frequency by external signal source frequency.
And if I change external signal source frequency of the device such as NI PXIe-5644 VST,N310 signal center frequency will also be changed to half of External LO .
谢谢，有任何问题请随时与我联系！
——————————————————————
李泽远|研发工程师
北京曾益科技有限公司
手机：13121162044
地址：北京市海淀区中关村大街中关村SOHO 1108
网址： http://www.zengyi-tech.com www.zengyi-tech.com
发件人: Rob Kossler rkossler@nd.edu
发送时间: 2021年12月9日 1:14
收件人: Marcus D. Leech patchvonbraun@gmail.com
抄送: zeyuan.li@zengyi-tech.com; USRP list usrp-users@lists.ettus.com
主题: [USRP-users] Re: 答复: Re: 答复: Re: 答复: Re: 答复: 答复: Re: 答复: Re: How to use External LO on N310 device?
I searched the code for "rx_lo_source=external" and "tx_lo_source=external", but didn't find anything related. It seems that the device args should include these.
On Wed, Dec 8, 2021 at 11:02 AM Marcus D. Leech <patchvonbraun@gmail.com mailto:patchvonbraun@gmail.com > wrote:
On 2021-12-08 02:05, zeyuan.li@zengyi-tech.com mailto:zeyuan.li@zengyi-tech.com wrote:
I do not set TX or RX.This is my python code.Please give me some suggestions.
Thinks.
Ah, you're using Gnu Radio. I'll have to think about how to meet the constraints of external-LO use when using Gnu Radio.
Has anyone else done this?
USRP-users mailing list -- usrp-users@lists.ettus.com mailto:usrp-users@lists.ettus.com
To unsubscribe send an email to usrp-users-leave@lists.ettus.com mailto:usrp-users-leave@lists.ettus.com

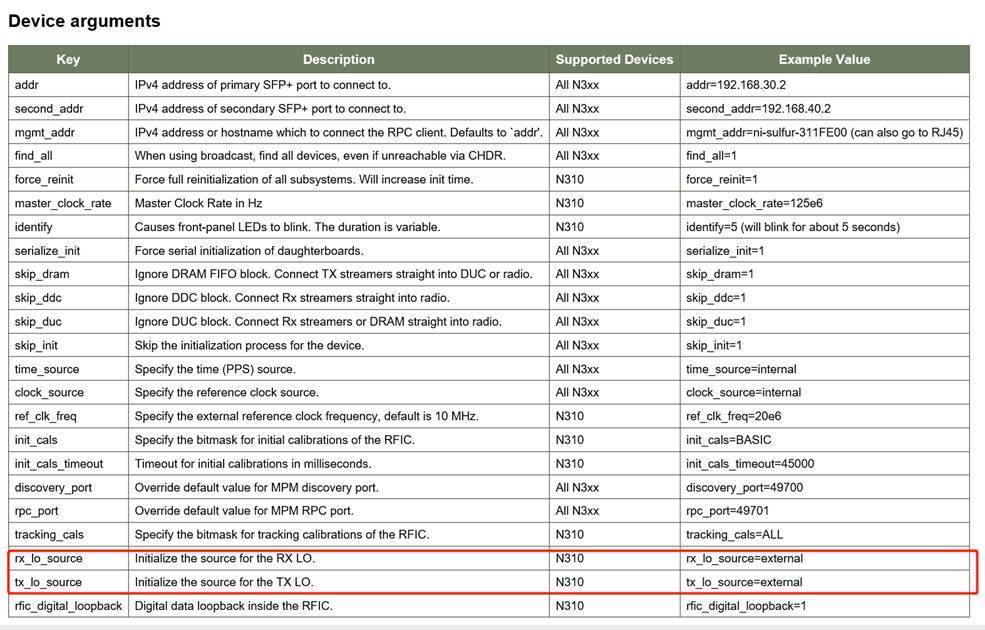

I noticed this table mentioned external LO.
Link to there: https://files.ettus.com/manual/page_usrp_n3xx.html#n3xx_usage_device_args.
谢谢，有任何问题请随时与我联系！
——————————————————————
李泽远|研发工程师
北京曾益科技有限公司
手机：13121162044
地址：北京市海淀区中关村大街中关村SOHO 1108
网址： http://www.zengyi-tech.com www.zengyi-tech.com
发件人: zeyuan.li@zengyi-tech.com zeyuan.li@zengyi-tech.com
发送时间: 2021年12月9日 13:54
收件人: 'Rob Kossler' rkossler@nd.edu; 'Marcus D. Leech' patchvonbraun@gmail.com
抄送: 'USRP list' usrp-users@lists.ettus.com
主题: [USRP-users] 答复: Re: 答复: Re: 答复: Re: 答复: Re: 答复: 答复: Re: 答复: Re: How to use External LO on N310 device?
Marcus，Rob：
Is such as that I used GNU Radio Software.Could you please show me an example code to use N310 External LO ?
I want to control sent singal frequency by external signal source frequency.
And if I change external signal source frequency of the device such as NI PXIe-5644 VST,N310 signal center frequency will also be changed to half of External LO .
谢谢，有任何问题请随时与我联系！
——————————————————————
李泽远|研发工程师
北京曾益科技有限公司
手机：13121162044
地址：北京市海淀区中关村大街中关村SOHO 1108
网址： http://www.zengyi-tech.com www.zengyi-tech.com
发件人: Rob Kossler <rkossler@nd.edu mailto:rkossler@nd.edu >
发送时间: 2021年12月9日 1:14
收件人: Marcus D. Leech <patchvonbraun@gmail.com mailto:patchvonbraun@gmail.com >
抄送: zeyuan.li@zengyi-tech.com mailto:zeyuan.li@zengyi-tech.com ; USRP list <usrp-users@lists.ettus.com mailto:usrp-users@lists.ettus.com >
主题: [USRP-users] Re: 答复: Re: 答复: Re: 答复: Re: 答复: 答复: Re: 答复: Re: How to use External LO on N310 device?
I searched the code for "rx_lo_source=external" and "tx_lo_source=external", but didn't find anything related. It seems that the device args should include these.
On Wed, Dec 8, 2021 at 11:02 AM Marcus D. Leech <patchvonbraun@gmail.com mailto:patchvonbraun@gmail.com > wrote:
On 2021-12-08 02:05, zeyuan.li@zengyi-tech.com mailto:zeyuan.li@zengyi-tech.com wrote:
I do not set TX or RX.This is my python code.Please give me some suggestions.
Thinks.
Ah, you're using Gnu Radio. I'll have to think about how to meet the constraints of external-LO use when using Gnu Radio.
Has anyone else done this?
USRP-users mailing list -- usrp-users@lists.ettus.com mailto:usrp-users@lists.ettus.com
To unsubscribe send an email to usrp-users-leave@lists.ettus.com mailto:usrp-users-leave@lists.ettus.com
On 2021-12-09 01:04, zeyuan.li@zengyi-tech.com wrote:

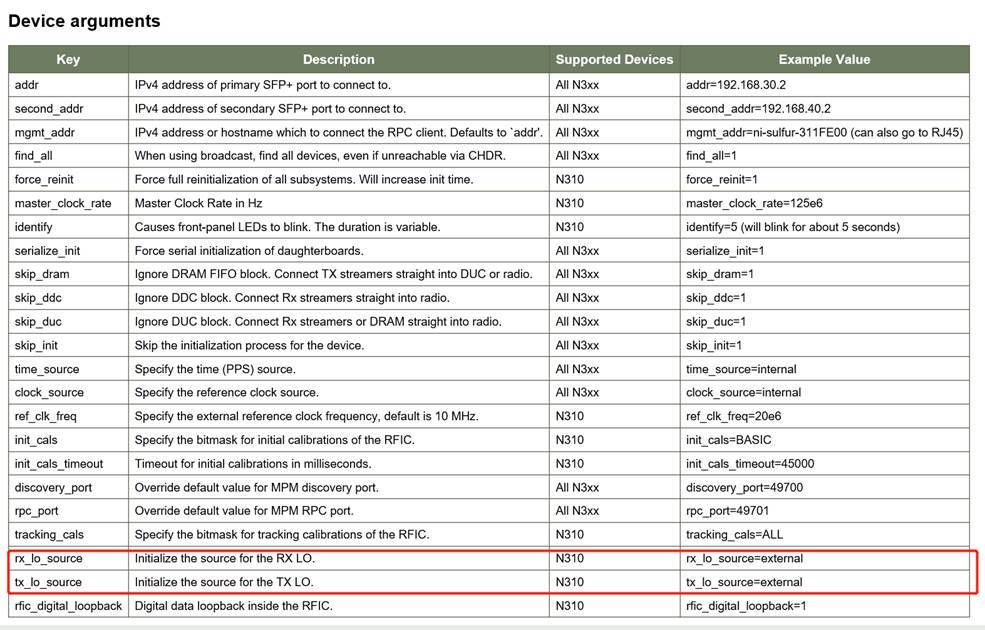

I noticed this table mentioned external LO.
Link to there:
https://files.ettus.com/manual/page_usrp_n3xx.html#n3xx_usage_device_args.
Yes. So use those in the "Device Arguments" parameter in your UHD
source/sink blocks in GnuRadio. This will cause the device to use
external LO on "session start", and
allow proper setup.
But those not in UHD Sink or Source in GNU Radio.
Could you show me an example?
谢谢，有任何问题请随时与我联系！
——————————————————————
李泽远|研发工程师
北京曾益科技有限公司
手机：13121162044
地址：北京市海淀区中关村大街中关村SOHO 1108
网址： http://www.zengyi-tech.com www.zengyi-tech.com
发件人: Marcus D. Leech patchvonbraun@gmail.com
发送时间: 2021年12月9日 22:39
收件人: zeyuan.li@zengyi-tech.com; 'Rob Kossler' rkossler@nd.edu
抄送: 'USRP list' usrp-users@lists.ettus.com
主题: [USRP-users] Re: 答复: 答复: Re: 答复: Re: 答复: Re: 答复: Re: 答复: 答复: Re: 答复: Re: How to use External LO on N310 device?
On 2021-12-09 01:04, zeyuan.li@zengyi-tech.com mailto:zeyuan.li@zengyi-tech.com wrote:
I noticed this table mentioned external LO.
Link to there: https://files.ettus.com/manual/page_usrp_n3xx.html#n3xx_usage_device_args.
Yes. So use those in the "Device Arguments" parameter in your UHD source/sink blocks in GnuRadio. This will cause the device to use external LO on "session start", and
allow proper setup.
On 2021-12-09 21:26, zeyuan.li@zengyi-tech.com wrote:
But those not in UHD Sink or Source in GNU Radio.
Could you show me an example?
What version of Gnu Radio are you using, and what version of UHD? This

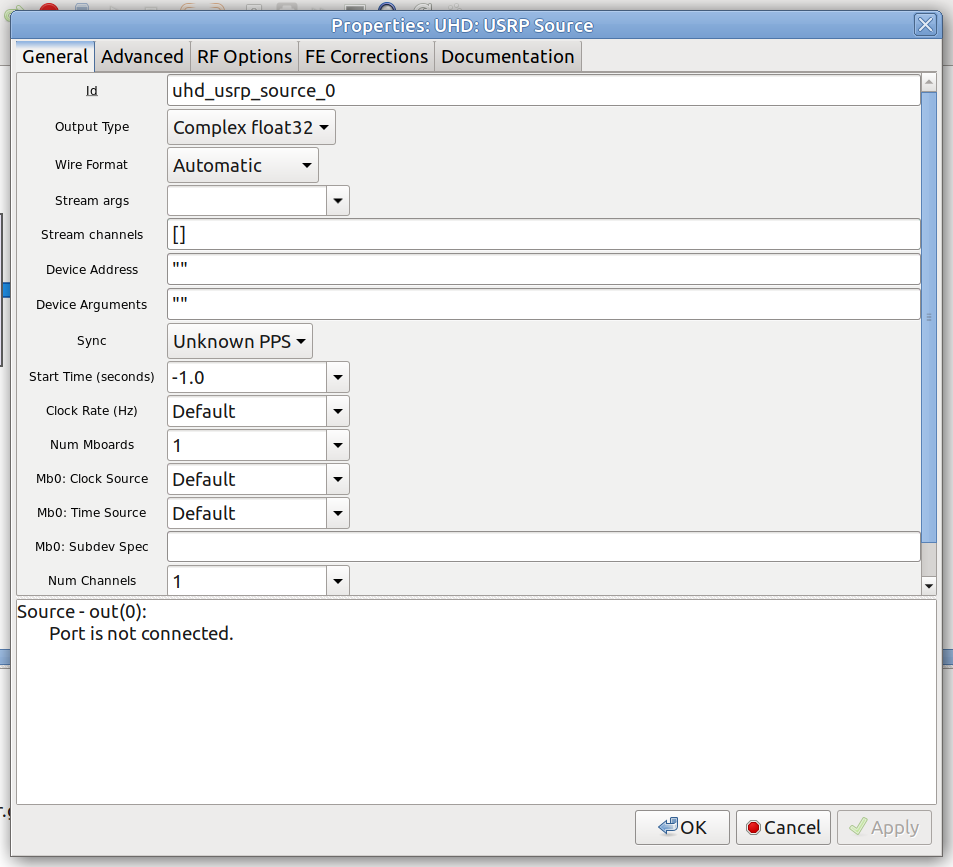

is what a UHD source block looks like when you double-click it:
