Hello!
I will receive my new USRP X310 in the coming weeks and I'm doing tests
with the RFNoc environment.
I'm trying to set up an example of my project and I have some doubts. I

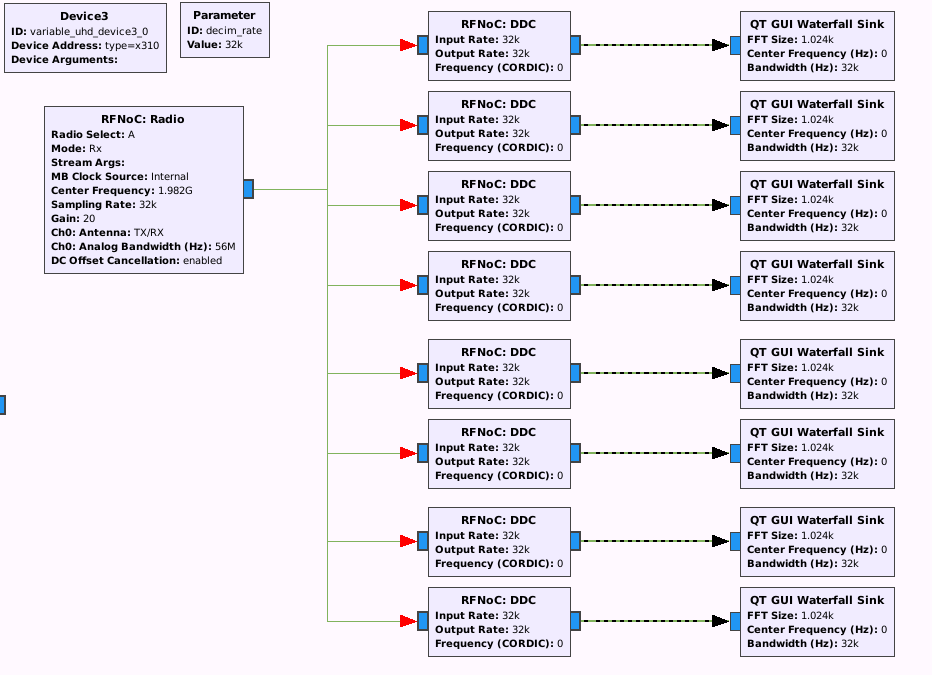

want to process a channel in 8 DDCs:

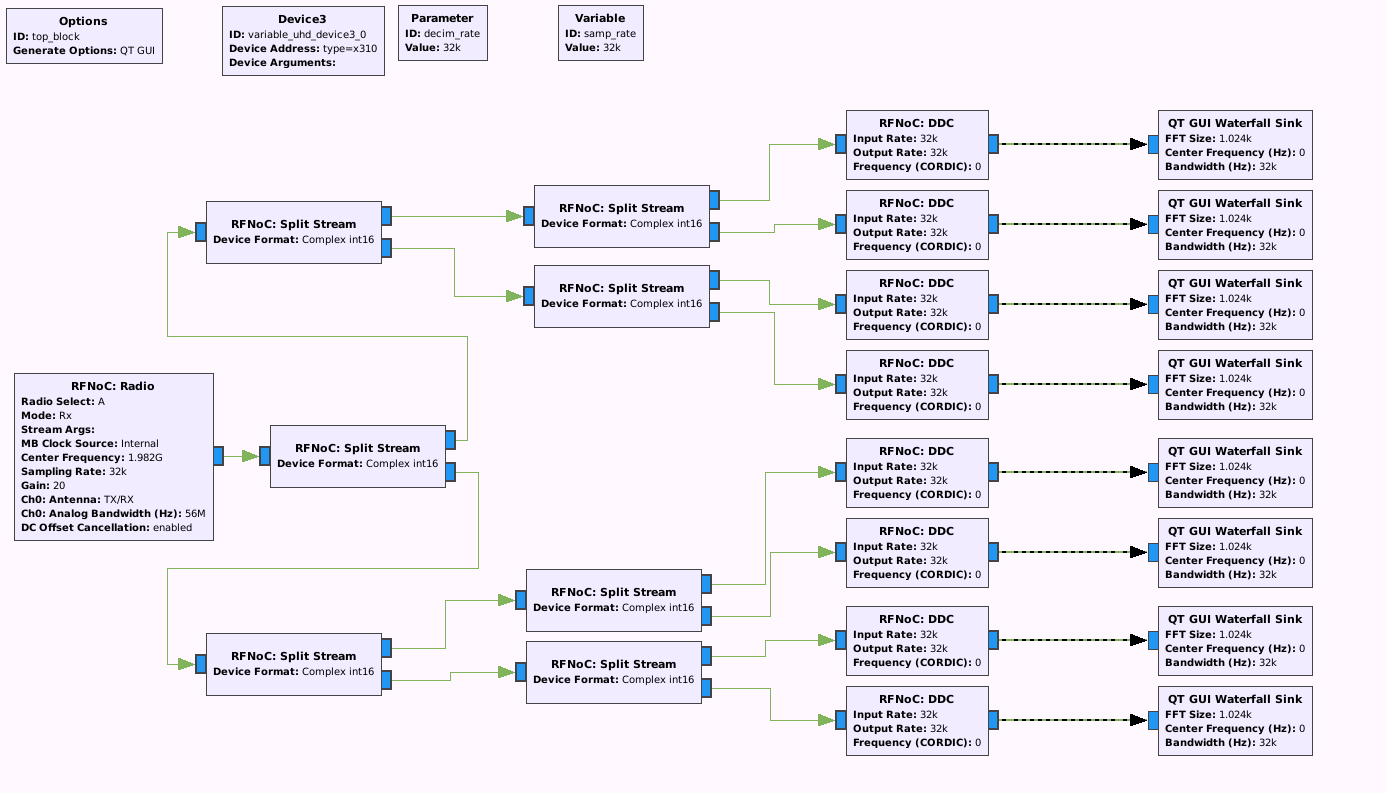

But I have a problem to split the channel. I have thought in:
It's possible?
Thank you.
I have seen that application will only allow a number of 10 custom blocks
on the X3xx series.
Would it be a good idea to create a DDC block with 8 inputs and 8
independent outputs? Or can I have problems with the timing constraints?
2018-04-25 14:43 GMT+02:00 Carlos Alberto Ruiz Naranjo <
carlosruiznaranjo@gmail.com>:
Hello!
I will receive my new USRP X310 in the coming weeks and I'm doing tests
with the RFNoc environment.
I'm trying to set up an example of my project and I have some doubts. I
want to process a channel in 8 DDCs:
But I have a problem to split the channel. I have thought in:
It's possible?
Thank you.
Hello Carlos,
Correct, you can only have 10 custom blocks currently. There is also a
limit to the amount of data that can pass into and out of a block, the
crossbar can't move 1600 MS/s out of a single block for instance. What is
your application requirement? If you need to pick out 8 independent blocks
of bandwidth by doing eight separate frequency shifts and decimations then
I suspect you will encounter resource limits in the FPGA. There have been
two implementations of polyphase filter banks to channelize the spectrum,
but I don't know the details of their features. It may be worth looking
into as a more resource efficient means of achieving your needs. The total
sample rate will need to be less than 400 MS/s in order to be carried over
the two 10 Gigabit Ethernet links.
If you can describe your application needs a bit more we may be able to
offer more advice.
Regards,
Derek
On Thu, Apr 26, 2018 at 8:58 AM, Carlos Alberto Ruiz Naranjo via USRP-users
usrp-users@lists.ettus.com wrote:
I have seen that application will only allow a number of 10 custom blocks
on the X3xx series.
Would it be a good idea to create a DDC block with 8 inputs and 8
independent outputs? Or can I have problems with the timing constraints?
2018-04-25 14:43 GMT+02:00 Carlos Alberto Ruiz Naranjo <
carlosruiznaranjo@gmail.com>:
Hello!
I will receive my new USRP X310 in the coming weeks and I'm doing tests
with the RFNoc environment.
I'm trying to set up an example of my project and I have some doubts. I
want to process a channel in 8 DDCs:
But I have a problem to split the channel. I have thought in:
It's possible?
Thank you.
USRP-users mailing list
USRP-users@lists.ettus.com
http://lists.ettus.com/mailman/listinfo/usrp-users_lists.ettus.com
Hi Carlos,
Unfortunately no -- that's not possible :)
A few reasons:
- As you've mentioned, there's an RFNoC CE limit... The generator refuses
to insert more than 10, but fundamentally I believe it's 16 total CEs
possible, so you get 14-15 usable CE spots depending on how many radio
blocks are instantiated. So you cannot actually create an FPGA image that
has the required blocks - I believe the sample rate on the RFNoC radio for X310 cannot be set to
32 kHz... the master_clock_rate has only a few predetermined values, so
you'll need to set the rate on the RFNoC: Radio to one of those clock rates
(otherwise it will coerce it for you).
The follow up suggestion of one DDC with 8 inputs and 8 outputs might work.
One more thing to consider would be that the total IO rate (data rate * num
ports) of a single CE has to be less than 2x the clock rate of the CE--
this is because the CE shares the crossbar connection between all ports,
and the crossbar uses a 64 bit bus instead of 32 bits. For this particular
scenario, I might recommend an architecture like this...
Radio (high mclk) ==> single channel DDC (downsample by 32x or something)
==> Splitstream with 8 output ports ==> DDC with 8 input/output ports
For the DDC, there's a verilog parameter you can change that adds more
channels -- I believe it defaults to 2. You'll also want to change the NOC
ID of the updated DDC so you can create a new xml definition with 8 ports,
and then probably edit the gr-ettus block to provide 8 ports, too.
For the Splitstream, you may need to copy the existing block and create a
version that has 8 ports. I'm not sure off the top of my head but I think
it only provides 2 outputs.
Alternatively, you could investigate the rfnoc polyphase channelizer :) I
saw some activity back in February but not sure about current status.
Hope this helps,
EJ
On Thu, Apr 26, 2018, 4:00 AM Carlos Alberto Ruiz Naranjo via USRP-users <
usrp-users@lists.ettus.com> wrote:
I have seen that application will only allow a number of 10 custom blocks
on the X3xx series.
Would it be a good idea to create a DDC block with 8 inputs and 8
independent outputs? Or can I have problems with the timing constraints?
2018-04-25 14:43 GMT+02:00 Carlos Alberto Ruiz Naranjo <
carlosruiznaranjo@gmail.com>:
Hello!
I will receive my new USRP X310 in the coming weeks and I'm doing tests
with the RFNoc environment.
I'm trying to set up an example of my project and I have some doubts. I
want to process a channel in 8 DDCs:
But I have a problem to split the channel. I have thought in:
It's possible?
Thank you.
USRP-users mailing list
USRP-users@lists.ettus.com
http://lists.ettus.com/mailman/listinfo/usrp-users_lists.ettus.com
Hello,
thank you Derek and Ej. I am already beginning to understand what my
limitations are going to be.
I want channalizer in 8+8 variables and not evenly spaced channels. Then I
think that I cant use the rfnoc polyphase filter. The channels will be
processed independently on my computer.

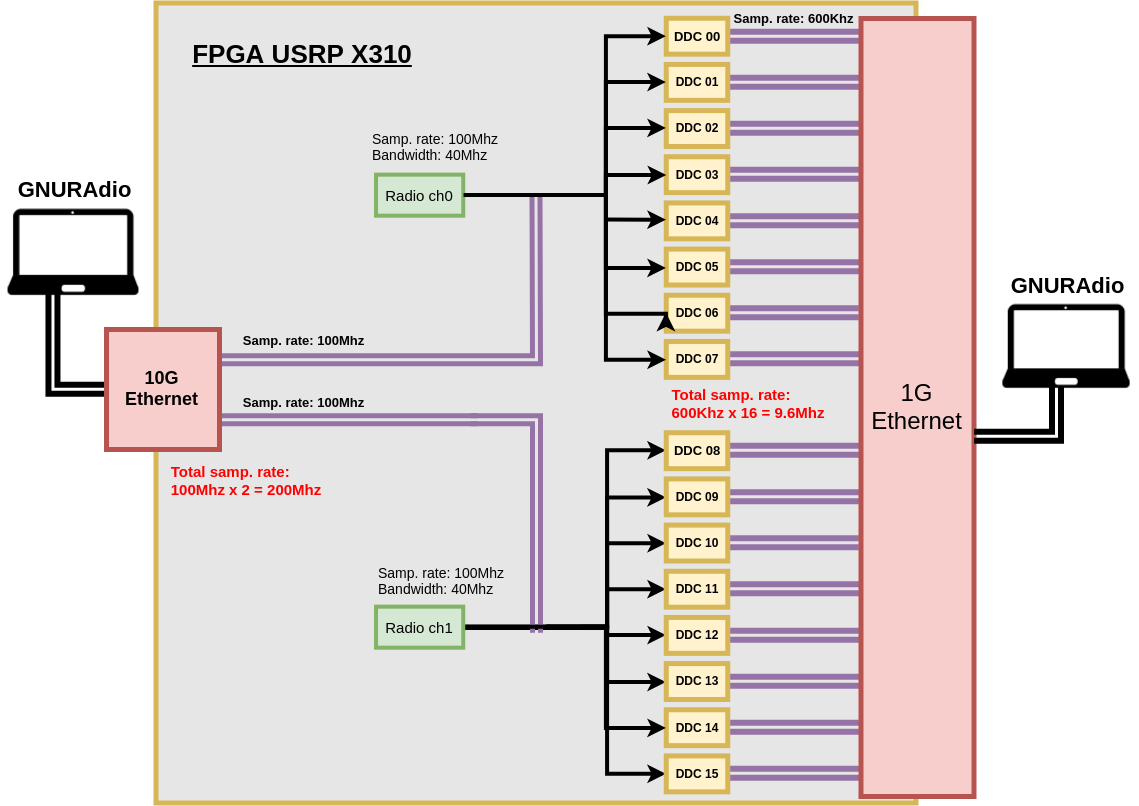

This is my ideal scenario:
If I use a single DDC for radio channel (1:8) my IO rate is 100Mhz +
8x600Khz = 104.8Mhz, right? Then I need a CE clock rate > 209.6Mhz? Would
it be possible?
Thank you.
2018-04-26 12:26 GMT+02:00 EJ Kreinar ejkreinar@gmail.com:
