Hi Debadrita, You have Vivado Lab and Vivado HLS ( High Level Synthesis ) installed. You need to have either Vivado Design Edition or System Edition in order to build the FPGA images for the X300. Regards, Nate Temple > On Feb 6, 2017, at 11:03 PM, DEBADRITA DAS <debadritadas0@gmail.com> wrote: > > Hi, > > I have tried that but it didn't help. > > debadrita@vipl:~$ cd ettus_uhd/uhd/fpga-src/usrp3/top/x300 > debadrita@vipl:~/ettus_uhd/uhd/fpga-src/usrp3/top/x300$ source setupenv.sh > Setting up a 64-bit FPGA build environment for the USRP-X3x0... > - Vivado: Found (/opt/Xilinx/Vivado_Lab/2015.4/bin) > - Vivado HLS: Found (/opt/Xilinx/Vivado_HLS/2015.4/bin) > > Environment successfully initialized. > debadrita@vipl:~/ettus_uhd/uhd/fpga-src/usrp3/top/x300$ make GUI=1 > make -f Makefile.x300.inc bin NAME=X300_HG ARCH=kintex7 PART_ID=xc7k325t/ffg900/-2 BUILD_1G=1 BUILD_10G=1 SFP0_1GBE=1 SFP1_10GBE=1 X300=1 EXTRA_DEFS="BUILD_1G=1 BUILD_10G=1 SFP0_1GBE=1 SFP1_10GBE=1 X300=1" > make[1]: Entering directory `/home/debadrita/ettus_uhd/uhd/fpga-src/usrp3/top/x300' > BUILDER: Checking tools... > * GNU bash, version 4.3.11(1)-release (x86_64-pc-linux-gnu) > * Python 2.7.6 > * ERROR: Vivado not found in environment. Please run setupenv.sh > make[1]: *** [.check_tool] Error 1 > make[1]: Leaving directory `/home/debadrita/ettus_uhd/uhd/fpga-src/usrp3/top/x300' > make: *** [X300_HG] Error 2 > > > BR > Debadrita > > On Tue, Feb 7, 2017 at 12:14 PM, Nate Temple <nate.temple@ettus.com> wrote: > Hi Debadrita, > > Note the error towards the end of the output: "* ERROR: Vivado not found in environment. Please run setupenv.sh" > > You need to source the setupenv.sh script which is located in the fpga-src/usrp3/top/x300 directory before running the make command. > > Additional details are at this page: http://files.ettus.com/manual/md_usrp3_build_instructions.html > > Under the section: Build Instructions (Xilinx Vivado only) -> Makefile based Builder > > > Regards, > Nate Temple > > > > > On Feb 6, 2017, at 10:26 PM, DEBADRITA DAS via USRP-users <usrp-users@lists.ettus.com> wrote: > > > > Hi, > > > > i'm using ettus USRP X300 in UBUNTU 14.04 64 bit and while building Xilinx Vivado Design Suite HLX Editions 15.4, i am facing the following error > > > > debadrita@vipl:~/ettus_uhd/uhd/fpga-src/usrp3/top/x300$ make GUI=1 > > make -f Makefile.x300.inc bin NAME=X300_HG ARCH=kintex7 PART_ID=xc7k325t/ffg900/-2 BUILD_1G=1 BUILD_10G=1 SFP0_1GBE=1 SFP1_10GBE=1 X300=1 EXTRA_DEFS="BUILD_1G=1 BUILD_10G=1 SFP0_1GBE=1 SFP1_10GBE=1 X300=1" > > make[1]: Entering directory `/home/debadrita/ettus_uhd/uhd/fpga-src/usrp3/top/x300' > > BUILDER: Checking tools... > > * GNU bash, version 4.3.11(1)-release (x86_64-pc-linux-gnu) > > * Python 2.7.6 > > * ERROR: Vivado not found in environment. Please run setupenv.sh > > make[1]: *** [.check_tool] Error 1 > > make[1]: Leaving directory `/home/debadrita/ettus_uhd/uhd/fpga-src/usrp3/top/x300' > > make: *** [X300_HG] Error 2 > > debadrita@vipl:~/ettus_uhd/uhd/fpga-src/usrp3/top/x300$ sudo make GUI=1 > > make -f Makefile.x300.inc bin NAME=X300_HG ARCH= PART_ID= BUILD_1G=1 BUILD_10G=1 SFP0_1GBE=1 SFP1_10GBE=1 X300=1 EXTRA_DEFS="BUILD_1G=1 BUILD_10G=1 SFP0_1GBE=1 SFP1_10GBE=1 X300=1" > > make[1]: Entering directory `/home/debadrita/ettus_uhd/uhd/fpga-src/usrp3/top/x300' > > BUILDER: Checking tools... > > * GNU bash, version 4.3.11(1)-release (x86_64-pc-linux-gnu) > > * Python 2.7.6 > > * ERROR: Vivado not found in environment. Please run setupenv.sh > > make[1]: *** [.check_tool] Error 1 > > make[1]: Leaving directory `/home/debadrita/ettus_uhd/uhd/fpga-src/usrp3/top/x300' > > make: *** [X300_HG] Error 2 > > > > Please help me with this. > > > > BR > > Debadrita. > > _______________________________________________ > > USRP-users mailing list > > USRP-users@lists.ettus.com > > http://lists.ettus.com/mailman/listinfo/usrp-users_lists.ettus.com > >

Hi Debadrita, excuse me if I've missed that, but you should *never* build software or FPGA images as root; the "sudo" seems like a bad idea. Best regards, Marcus On 07.02.2017 21:04, Nate Temple via USRP-users wrote: > Hi Debadrita, > > You have Vivado Lab and Vivado HLS ( High Level Synthesis ) installed. You need to have either Vivado Design Edition or System Edition in order to build the FPGA images for the X300. > > Regards, > Nate Temple > > >> On Feb 6, 2017, at 11:03 PM, DEBADRITA DAS <debadritadas0@gmail.com> wrote: >> >> Hi, >> >> I have tried that but it didn't help. >> >> debadrita@vipl:~$ cd ettus_uhd/uhd/fpga-src/usrp3/top/x300 >> debadrita@vipl:~/ettus_uhd/uhd/fpga-src/usrp3/top/x300$ source setupenv.sh >> Setting up a 64-bit FPGA build environment for the USRP-X3x0... >> - Vivado: Found (/opt/Xilinx/Vivado_Lab/2015.4/bin) >> - Vivado HLS: Found (/opt/Xilinx/Vivado_HLS/2015.4/bin) >> >> Environment successfully initialized. >> debadrita@vipl:~/ettus_uhd/uhd/fpga-src/usrp3/top/x300$ make GUI=1 >> make -f Makefile.x300.inc bin NAME=X300_HG ARCH=kintex7 PART_ID=xc7k325t/ffg900/-2 BUILD_1G=1 BUILD_10G=1 SFP0_1GBE=1 SFP1_10GBE=1 X300=1 EXTRA_DEFS="BUILD_1G=1 BUILD_10G=1 SFP0_1GBE=1 SFP1_10GBE=1 X300=1" >> make[1]: Entering directory `/home/debadrita/ettus_uhd/uhd/fpga-src/usrp3/top/x300' >> BUILDER: Checking tools... >> * GNU bash, version 4.3.11(1)-release (x86_64-pc-linux-gnu) >> * Python 2.7.6 >> * ERROR: Vivado not found in environment. Please run setupenv.sh >> make[1]: *** [.check_tool] Error 1 >> make[1]: Leaving directory `/home/debadrita/ettus_uhd/uhd/fpga-src/usrp3/top/x300' >> make: *** [X300_HG] Error 2 >> >> >> BR >> Debadrita >> >> On Tue, Feb 7, 2017 at 12:14 PM, Nate Temple <nate.temple@ettus.com> wrote: >> Hi Debadrita, >> >> Note the error towards the end of the output: "* ERROR: Vivado not found in environment. Please run setupenv.sh" >> >> You need to source the setupenv.sh script which is located in the fpga-src/usrp3/top/x300 directory before running the make command. >> >> Additional details are at this page: http://files.ettus.com/manual/md_usrp3_build_instructions.html >> >> Under the section: Build Instructions (Xilinx Vivado only) -> Makefile based Builder >> >> >> Regards, >> Nate Temple >> >> >> >>> On Feb 6, 2017, at 10:26 PM, DEBADRITA DAS via USRP-users <usrp-users@lists.ettus.com> wrote: >>> >>> Hi, >>> >>> i'm using ettus USRP X300 in UBUNTU 14.04 64 bit and while building Xilinx Vivado Design Suite HLX Editions 15.4, i am facing the following error >>> >>> debadrita@vipl:~/ettus_uhd/uhd/fpga-src/usrp3/top/x300$ make GUI=1 >>> make -f Makefile.x300.inc bin NAME=X300_HG ARCH=kintex7 PART_ID=xc7k325t/ffg900/-2 BUILD_1G=1 BUILD_10G=1 SFP0_1GBE=1 SFP1_10GBE=1 X300=1 EXTRA_DEFS="BUILD_1G=1 BUILD_10G=1 SFP0_1GBE=1 SFP1_10GBE=1 X300=1" >>> make[1]: Entering directory `/home/debadrita/ettus_uhd/uhd/fpga-src/usrp3/top/x300' >>> BUILDER: Checking tools... >>> * GNU bash, version 4.3.11(1)-release (x86_64-pc-linux-gnu) >>> * Python 2.7.6 >>> * ERROR: Vivado not found in environment. Please run setupenv.sh >>> make[1]: *** [.check_tool] Error 1 >>> make[1]: Leaving directory `/home/debadrita/ettus_uhd/uhd/fpga-src/usrp3/top/x300' >>> make: *** [X300_HG] Error 2 >>> debadrita@vipl:~/ettus_uhd/uhd/fpga-src/usrp3/top/x300$ sudo make GUI=1 >>> make -f Makefile.x300.inc bin NAME=X300_HG ARCH= PART_ID= BUILD_1G=1 BUILD_10G=1 SFP0_1GBE=1 SFP1_10GBE=1 X300=1 EXTRA_DEFS="BUILD_1G=1 BUILD_10G=1 SFP0_1GBE=1 SFP1_10GBE=1 X300=1" >>> make[1]: Entering directory `/home/debadrita/ettus_uhd/uhd/fpga-src/usrp3/top/x300' >>> BUILDER: Checking tools... >>> * GNU bash, version 4.3.11(1)-release (x86_64-pc-linux-gnu) >>> * Python 2.7.6 >>> * ERROR: Vivado not found in environment. Please run setupenv.sh >>> make[1]: *** [.check_tool] Error 1 >>> make[1]: Leaving directory `/home/debadrita/ettus_uhd/uhd/fpga-src/usrp3/top/x300' >>> make: *** [X300_HG] Error 2 >>> >>> Please help me with this. >>> >>> BR >>> Debadrita. >>> _______________________________________________ >>> USRP-users mailing list >>> USRP-users@lists.ettus.com >>> http://lists.ettus.com/mailman/listinfo/usrp-users_lists.ettus.com >> > > _______________________________________________ > USRP-users mailing list > USRP-users@lists.ettus.com > http://lists.ettus.com/mailman/listinfo/usrp-users_lists.ettus.com

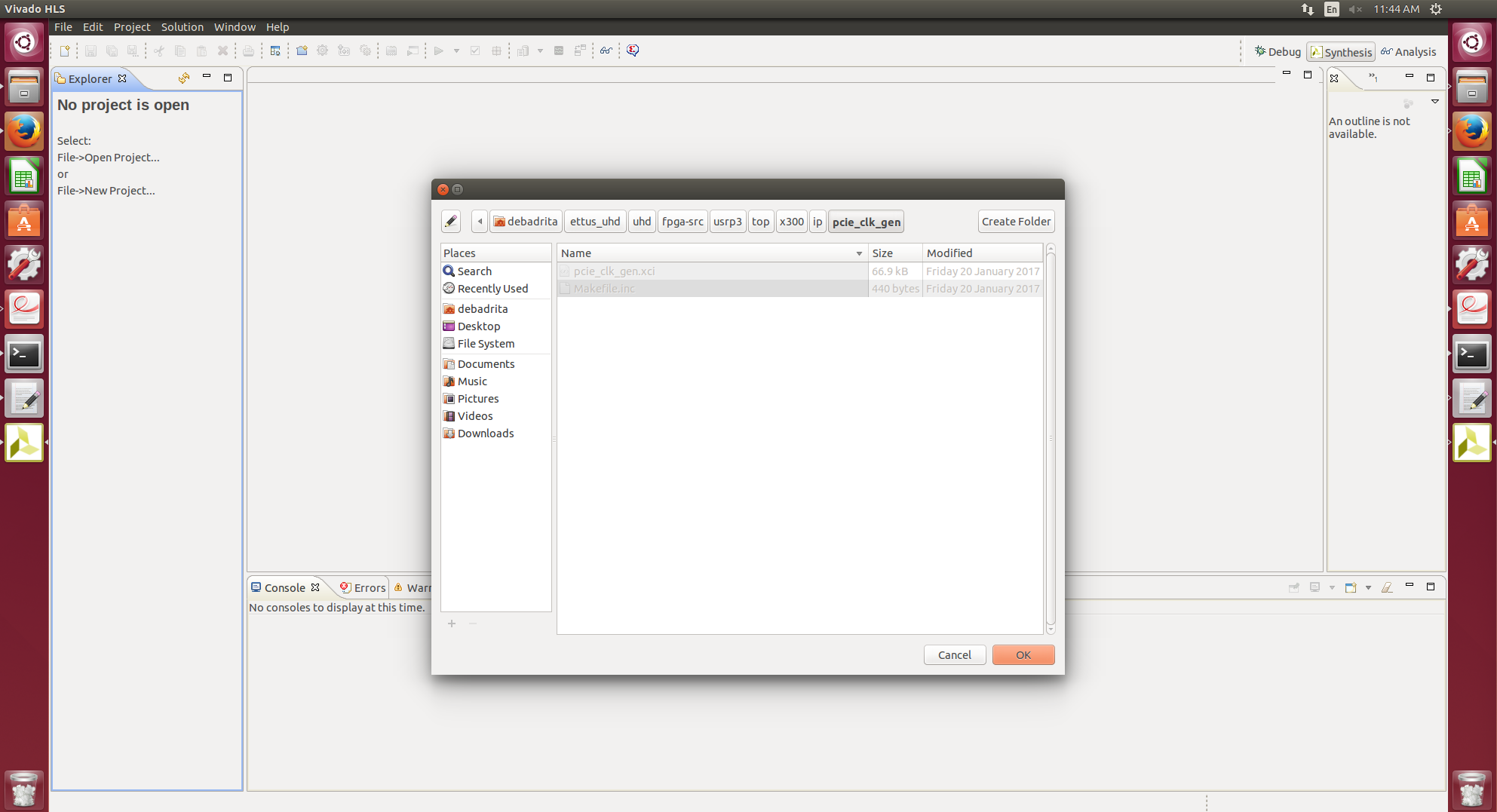

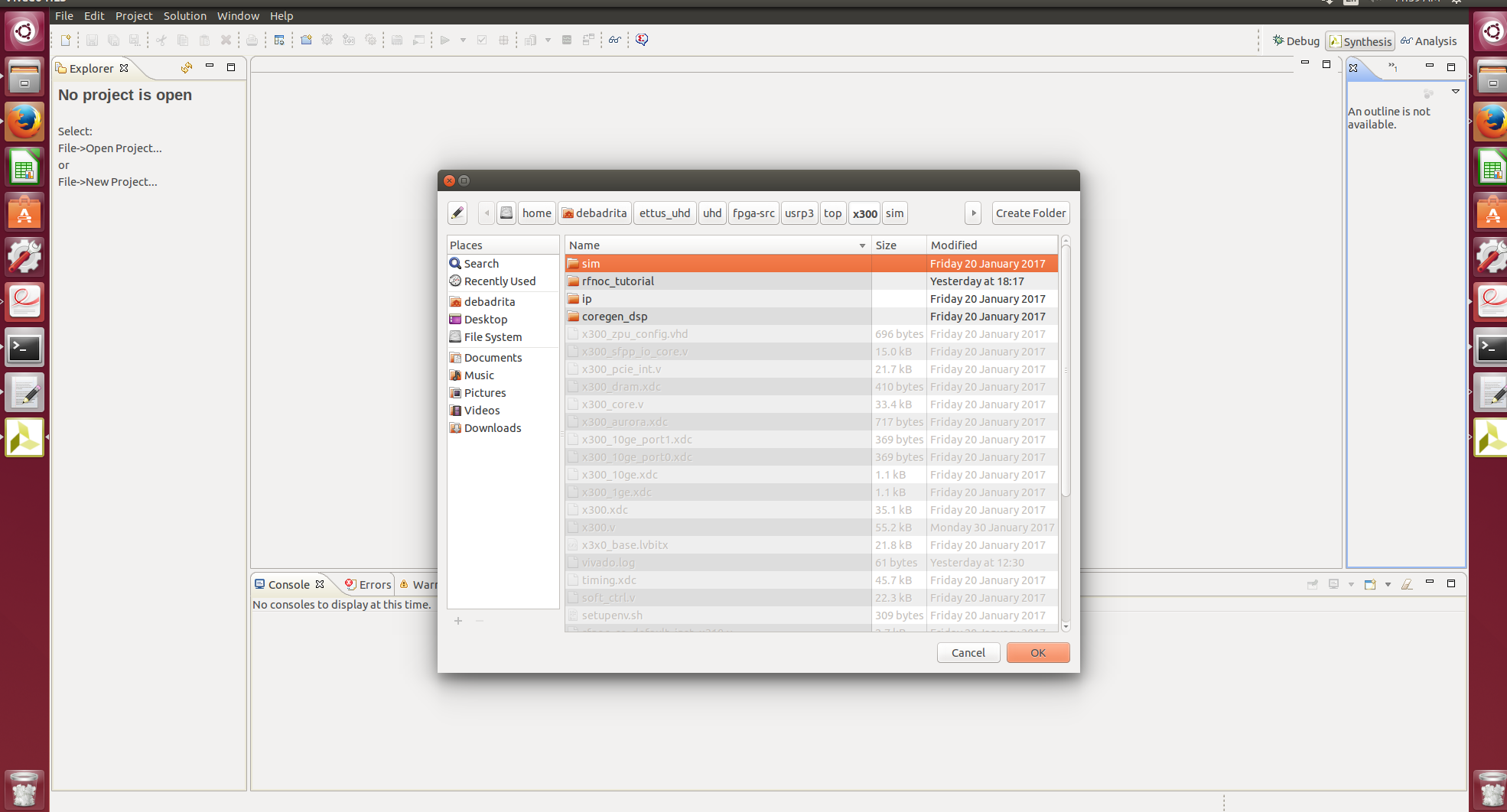

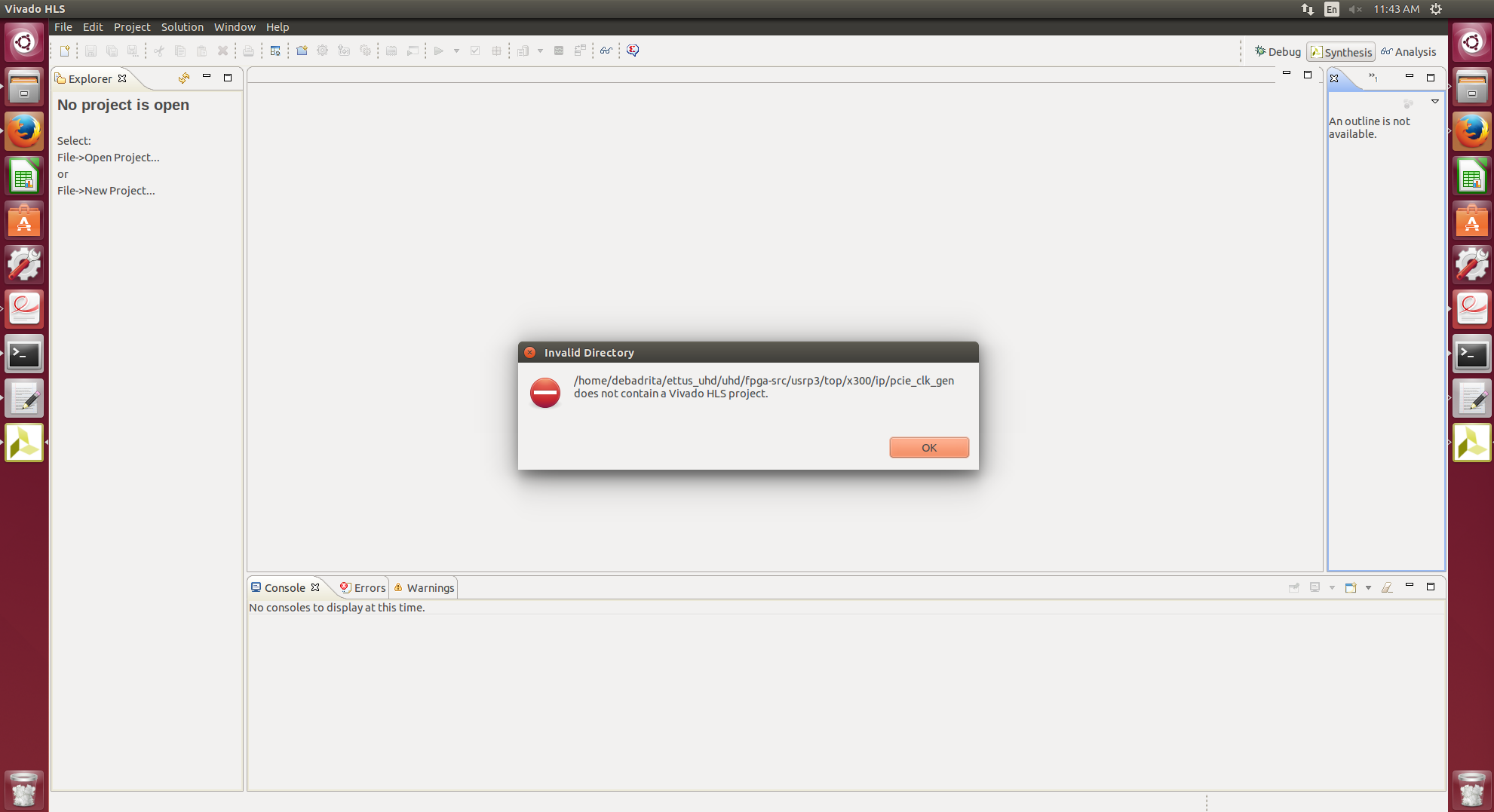

Hi, I am not able to find any Vivado HLS Project under the path ettus_uhd/uhd/fpga-src/usrp3/top/x300/ and sending you the screenshot of the same Please help me with this. BR Debadrita. On Wed, Feb 8, 2017 at 1:34 AM, Nate Temple <nate.temple@ettus.com> wrote: > Hi Debadrita, > > You have Vivado Lab and Vivado HLS ( High Level Synthesis ) installed. You > need to have either Vivado Design Edition or System Edition in order to > build the FPGA images for the X300. > > Regards, > Nate Temple > > > > On Feb 6, 2017, at 11:03 PM, DEBADRITA DAS <debadritadas0@gmail.com> > wrote: > > > > Hi, > > > > I have tried that but it didn't help. > > > > debadrita@vipl:~$ cd ettus_uhd/uhd/fpga-src/usrp3/top/x300 > > debadrita@vipl:~/ettus_uhd/uhd/fpga-src/usrp3/top/x300$ source > setupenv.sh > > Setting up a 64-bit FPGA build environment for the USRP-X3x0... > > - Vivado: Found (/opt/Xilinx/Vivado_Lab/2015.4/bin) > > - Vivado HLS: Found (/opt/Xilinx/Vivado_HLS/2015.4/bin) > > > > Environment successfully initialized. > > debadrita@vipl:~/ettus_uhd/uhd/fpga-src/usrp3/top/x300$ make GUI=1 > > make -f Makefile.x300.inc bin NAME=X300_HG ARCH=kintex7 > PART_ID=xc7k325t/ffg900/-2 BUILD_1G=1 BUILD_10G=1 SFP0_1GBE=1 SFP1_10GBE=1 > X300=1 EXTRA_DEFS="BUILD_1G=1 BUILD_10G=1 SFP0_1GBE=1 SFP1_10GBE=1 X300=1" > > make[1]: Entering directory `/home/debadrita/ettus_uhd/ > uhd/fpga-src/usrp3/top/x300' > > BUILDER: Checking tools... > > * GNU bash, version 4.3.11(1)-release (x86_64-pc-linux-gnu) > > * Python 2.7.6 > > * ERROR: Vivado not found in environment. Please run setupenv.sh > > make[1]: *** [.check_tool] Error 1 > > make[1]: Leaving directory `/home/debadrita/ettus_uhd/ > uhd/fpga-src/usrp3/top/x300' > > make: *** [X300_HG] Error 2 > > > > > > BR > > Debadrita > > > > On Tue, Feb 7, 2017 at 12:14 PM, Nate Temple <nate.temple@ettus.com> > wrote: > > Hi Debadrita, > > > > Note the error towards the end of the output: "* ERROR: Vivado not found > in environment. Please run setupenv.sh" > > > > You need to source the setupenv.sh script which is located in the > fpga-src/usrp3/top/x300 directory before running the make command. > > > > Additional details are at this page: http://files.ettus.com/manual/ > md_usrp3_build_instructions.html > > > > Under the section: Build Instructions (Xilinx Vivado only) -> Makefile > based Builder > > > > > > Regards, > > Nate Temple > > > > > > > > > On Feb 6, 2017, at 10:26 PM, DEBADRITA DAS via USRP-users < > usrp-users@lists.ettus.com> wrote: > > > > > > Hi, > > > > > > i'm using ettus USRP X300 in UBUNTU 14.04 64 bit and while building > Xilinx Vivado Design Suite HLX Editions 15.4, i am facing the following > error > > > > > > debadrita@vipl:~/ettus_uhd/uhd/fpga-src/usrp3/top/x300$ make GUI=1 > > > make -f Makefile.x300.inc bin NAME=X300_HG ARCH=kintex7 > PART_ID=xc7k325t/ffg900/-2 BUILD_1G=1 BUILD_10G=1 SFP0_1GBE=1 SFP1_10GBE=1 > X300=1 EXTRA_DEFS="BUILD_1G=1 BUILD_10G=1 SFP0_1GBE=1 SFP1_10GBE=1 X300=1" > > > make[1]: Entering directory `/home/debadrita/ettus_uhd/ > uhd/fpga-src/usrp3/top/x300' > > > BUILDER: Checking tools... > > > * GNU bash, version 4.3.11(1)-release (x86_64-pc-linux-gnu) > > > * Python 2.7.6 > > > * ERROR: Vivado not found in environment. Please run setupenv.sh > > > make[1]: *** [.check_tool] Error 1 > > > make[1]: Leaving directory `/home/debadrita/ettus_uhd/ > uhd/fpga-src/usrp3/top/x300' > > > make: *** [X300_HG] Error 2 > > > debadrita@vipl:~/ettus_uhd/uhd/fpga-src/usrp3/top/x300$ sudo make > GUI=1 > > > make -f Makefile.x300.inc bin NAME=X300_HG ARCH= PART_ID= BUILD_1G=1 > BUILD_10G=1 SFP0_1GBE=1 SFP1_10GBE=1 X300=1 EXTRA_DEFS="BUILD_1G=1 > BUILD_10G=1 SFP0_1GBE=1 SFP1_10GBE=1 X300=1" > > > make[1]: Entering directory `/home/debadrita/ettus_uhd/ > uhd/fpga-src/usrp3/top/x300' > > > BUILDER: Checking tools... > > > * GNU bash, version 4.3.11(1)-release (x86_64-pc-linux-gnu) > > > * Python 2.7.6 > > > * ERROR: Vivado not found in environment. Please run setupenv.sh > > > make[1]: *** [.check_tool] Error 1 > > > make[1]: Leaving directory `/home/debadrita/ettus_uhd/ > uhd/fpga-src/usrp3/top/x300' > > > make: *** [X300_HG] Error 2 > > > > > > Please help me with this. > > > > > > BR > > > Debadrita. > > > _______________________________________________ > > > USRP-users mailing list > > > USRP-users@lists.ettus.com > > > http://lists.ettus.com/mailman/listinfo/usrp-users_lists.ettus.com > > > > > >

 Hi Debadrita,

 You have Vivado Lab and Vivado HLS ( High Level Synthesis )
 installed. You need to have either Vivado Design Edition or System
 Edition in order to build the FPGA images for the X300.

 Regards,
 Nate Temple

 <debadritadas0@gmail.com <mailto:debadritadas0@gmail.com>> wrote:

 setupenv.sh

 PART_ID=xc7k325t/ffg900/-2 BUILD_1G=1 BUILD_10G=1 SFP0_1GBE=1
 SFP1_10GBE=1  X300=1 EXTRA_DEFS="BUILD_1G=1 BUILD_10G=1
 SFP0_1GBE=1 SFP1_10GBE=1  X300=1"

 `/home/debadrita/ettus_uhd/uhd/fpga-src/usrp3/top/x300'

 `/home/debadrita/ettus_uhd/uhd/fpga-src/usrp3/top/x300'

 <nate.temple@ettus.com <mailto:nate.temple@ettus.com>> wrote:

 not found in environment. Please run setupenv.sh"

 the fpga-src/usrp3/top/x300 directory before running the make command.

 http://files.ettus.com/manual/md_usrp3_build_instructions.html
 <http://files.ettus.com/manual/md_usrp3_build_instructions.html>

 Makefile based Builder

 <usrp-users@lists.ettus.com <mailto:usrp-users@lists.ettus.com>>
 wrote:

 building Xilinx Vivado Design Suite HLX Editions 15.4, i am facing
 the following error

 PART_ID=xc7k325t/ffg900/-2 BUILD_1G=1 BUILD_10G=1 SFP0_1GBE=1
 SFP1_10GBE=1  X300=1 EXTRA_DEFS="BUILD_1G=1 BUILD_10G=1
 SFP0_1GBE=1 SFP1_10GBE=1  X300=1"

 `/home/debadrita/ettus_uhd/uhd/fpga-src/usrp3/top/x300'

 `/home/debadrita/ettus_uhd/uhd/fpga-src/usrp3/top/x300'

 make GUI=1

 BUILD_1G=1 BUILD_10G=1 SFP0_1GBE=1 SFP1_10GBE=1  X300=1
 EXTRA_DEFS="BUILD_1G=1 BUILD_10G=1 SFP0_1GBE=1 SFP1_10GBE=1  X300=1"

 `/home/debadrita/ettus_uhd/uhd/fpga-src/usrp3/top/x300'

 `/home/debadrita/ettus_uhd/uhd/fpga-src/usrp3/top/x300'

 http://lists.ettus.com/mailman/listinfo/usrp-users_lists.ettus.com
 <http://lists.ettus.com/mailman/listinfo/usrp-users_lists.ettus.com>

Dear Debadrita, that's not surprising. There simply is no project. You need to *sucessfully* run "make GUI=1 X310_RFNOC_HLS_HGS" and save the project from the GUI. So, we first need to figure out why sourcing setupenv.sh didn't work. As Nate said, you'll need a full working installation of Vivado in a Design or Systems edition. Do you have that? Best regards, Marcus On 02/08/2017 07:18 AM, DEBADRITA DAS via USRP-users wrote: > Hi, > > I am not able to find any Vivado HLS Project under the path > ettus_uhd/uhd/fpga-src/usrp3/top/x300/ and sending you the screenshot > of the same > > Please help me with this. > > BR > Debadrita. > > On Wed, Feb 8, 2017 at 1:34 AM, Nate Temple <nate.temple@ettus.com > <mailto:nate.temple@ettus.com>> wrote: > > Hi Debadrita, > > You have Vivado Lab and Vivado HLS ( High Level Synthesis ) > installed. You need to have either Vivado Design Edition or System > Edition in order to build the FPGA images for the X300. > > Regards, > Nate Temple > > > > On Feb 6, 2017, at 11:03 PM, DEBADRITA DAS > <debadritadas0@gmail.com <mailto:debadritadas0@gmail.com>> wrote: > > > > Hi, > > > > I have tried that but it didn't help. > > > > debadrita@vipl:~$ cd ettus_uhd/uhd/fpga-src/usrp3/top/x300 > > debadrita@vipl:~/ettus_uhd/uhd/fpga-src/usrp3/top/x300$ source > setupenv.sh > > Setting up a 64-bit FPGA build environment for the USRP-X3x0... > > - Vivado: Found (/opt/Xilinx/Vivado_Lab/2015.4/bin) > > - Vivado HLS: Found (/opt/Xilinx/Vivado_HLS/2015.4/bin) > > > > Environment successfully initialized. > > debadrita@vipl:~/ettus_uhd/uhd/fpga-src/usrp3/top/x300$ make GUI=1 > > make -f Makefile.x300.inc bin NAME=X300_HG ARCH=kintex7 > PART_ID=xc7k325t/ffg900/-2 BUILD_1G=1 BUILD_10G=1 SFP0_1GBE=1 > SFP1_10GBE=1 X300=1 EXTRA_DEFS="BUILD_1G=1 BUILD_10G=1 > SFP0_1GBE=1 SFP1_10GBE=1 X300=1" > > make[1]: Entering directory > `/home/debadrita/ettus_uhd/uhd/fpga-src/usrp3/top/x300' > > BUILDER: Checking tools... > > * GNU bash, version 4.3.11(1)-release (x86_64-pc-linux-gnu) > > * Python 2.7.6 > > * ERROR: Vivado not found in environment. Please run setupenv.sh > > make[1]: *** [.check_tool] Error 1 > > make[1]: Leaving directory > `/home/debadrita/ettus_uhd/uhd/fpga-src/usrp3/top/x300' > > make: *** [X300_HG] Error 2 > > > > > > BR > > Debadrita > > > > On Tue, Feb 7, 2017 at 12:14 PM, Nate Temple > <nate.temple@ettus.com <mailto:nate.temple@ettus.com>> wrote: > > Hi Debadrita, > > > > Note the error towards the end of the output: "* ERROR: Vivado > not found in environment. Please run setupenv.sh" > > > > You need to source the setupenv.sh script which is located in > the fpga-src/usrp3/top/x300 directory before running the make command. > > > > Additional details are at this page: > http://files.ettus.com/manual/md_usrp3_build_instructions.html > <http://files.ettus.com/manual/md_usrp3_build_instructions.html> > > > > Under the section: Build Instructions (Xilinx Vivado only) -> > Makefile based Builder > > > > > > Regards, > > Nate Temple > > > > > > > > > On Feb 6, 2017, at 10:26 PM, DEBADRITA DAS via USRP-users > <usrp-users@lists.ettus.com <mailto:usrp-users@lists.ettus.com>> > wrote: > > > > > > Hi, > > > > > > i'm using ettus USRP X300 in UBUNTU 14.04 64 bit and while > building Xilinx Vivado Design Suite HLX Editions 15.4, i am facing > the following error > > > > > > debadrita@vipl:~/ettus_uhd/uhd/fpga-src/usrp3/top/x300$ make GUI=1 > > > make -f Makefile.x300.inc bin NAME=X300_HG ARCH=kintex7 > PART_ID=xc7k325t/ffg900/-2 BUILD_1G=1 BUILD_10G=1 SFP0_1GBE=1 > SFP1_10GBE=1 X300=1 EXTRA_DEFS="BUILD_1G=1 BUILD_10G=1 > SFP0_1GBE=1 SFP1_10GBE=1 X300=1" > > > make[1]: Entering directory > `/home/debadrita/ettus_uhd/uhd/fpga-src/usrp3/top/x300' > > > BUILDER: Checking tools... > > > * GNU bash, version 4.3.11(1)-release (x86_64-pc-linux-gnu) > > > * Python 2.7.6 > > > * ERROR: Vivado not found in environment. Please run setupenv.sh > > > make[1]: *** [.check_tool] Error 1 > > > make[1]: Leaving directory > `/home/debadrita/ettus_uhd/uhd/fpga-src/usrp3/top/x300' > > > make: *** [X300_HG] Error 2 > > > debadrita@vipl:~/ettus_uhd/uhd/fpga-src/usrp3/top/x300$ sudo > make GUI=1 > > > make -f Makefile.x300.inc bin NAME=X300_HG ARCH= PART_ID= > BUILD_1G=1 BUILD_10G=1 SFP0_1GBE=1 SFP1_10GBE=1 X300=1 > EXTRA_DEFS="BUILD_1G=1 BUILD_10G=1 SFP0_1GBE=1 SFP1_10GBE=1 X300=1" > > > make[1]: Entering directory > `/home/debadrita/ettus_uhd/uhd/fpga-src/usrp3/top/x300' > > > BUILDER: Checking tools... > > > * GNU bash, version 4.3.11(1)-release (x86_64-pc-linux-gnu) > > > * Python 2.7.6 > > > * ERROR: Vivado not found in environment. Please run setupenv.sh > > > make[1]: *** [.check_tool] Error 1 > > > make[1]: Leaving directory > `/home/debadrita/ettus_uhd/uhd/fpga-src/usrp3/top/x300' > > > make: *** [X300_HG] Error 2 > > > > > > Please help me with this. > > > > > > BR > > > Debadrita. > > > _______________________________________________ > > > USRP-users mailing list > > > USRP-users@lists.ettus.com <mailto:USRP-users@lists.ettus.com> > > > > http://lists.ettus.com/mailman/listinfo/usrp-users_lists.ettus.com > <http://lists.ettus.com/mailman/listinfo/usrp-users_lists.ettus.com> > > > > > > > > > _______________________________________________ > USRP-users mailing list > USRP-users@lists.ettus.com > http://lists.ettus.com/mailman/listinfo/usrp-users_lists.ettus.com

HI, I've installed Vivado Design Suite-HLX Editions 2015.4 on Ubuntu 14.04 and succesfully setup the Ettus Xilinx build environment using source setupenv.sh But when i try to build binary bitstream using make GUI=1 all it ended up with the following errors INFO: [IP_Flow 19-1686] Generating 'Instantiation Template' target for IP 'ddr3_32bit'... ERROR: [xilinx.com:ip:mig_7series:2.4-0] ddr3_32bit: Code generation aborted: Can not read PRJ file: /home/debadrita/uhd/fpga-src/usrp3/top/x300/build-ip/xc7k325tffg900-2/ddr3_32bit/mig_a.prj CRITICAL WARNING: [IP_Flow 19-1747] Failed to deliver file '/opt/Xilinx/Vivado/2015.4/data/ip/xilinx/mig_7series_v2_4/xit/instantiation_template.xit': ERROR: [IP_Flow 19-167] Failed to deliver one or more file(s). ERROR: [IP_Flow 19-3505] IP Generation error: Failed to generate IP 'ddr3_32bit'. Failed to generate 'Verilog Instantiation Template' outputs: ERROR: [IP_Flow 19-98] Generation of the IP CORE failed. Failed to generate IP 'ddr3_32bit'. Failed to generate 'Verilog Instantiation Template' outputs: INFO: [Common 17-206] Exiting Vivado at Mon Feb 13 14:41:40 2017... BUILDER: Releasing IP location: /home/debadrita/uhd/fpga-src/usrp3/top/x300/build-ip/xc7k325tffg900-2/ddr3_32bit make[1]: *** [/home/debadrita/uhd/fpga-src/usrp3/top/x300/build-ip/xc7k325tffg900-2/ddr3_32bit/ddr3_32bit.xci] Error 1 make[1]: Leaving directory `/home/debadrita/uhd/fpga-src/usrp3/top/x300' make: *** [X300_HG] Error 2 root@debadrita:/home/debadrita/uhd/fpga-src/usrp3/top/x300# root@debadrita:/home/debadrita/uhd/fpga-src/usrp3/top/x300# "make GUI=1 X310_RFNOC_HLS_HGS please help me with this. BR Debadrita. On Wed, Feb 8, 2017 at 11:48 AM, DEBADRITA DAS <debadritadas0@gmail.com> wrote: > Hi, > > I am not able to find any Vivado HLS Project under the path > ettus_uhd/uhd/fpga-src/usrp3/top/x300/ and sending you the screenshot of > the same > > Please help me with this. > > BR > Debadrita. > > On Wed, Feb 8, 2017 at 1:34 AM, Nate Temple <nate.temple@ettus.com> wrote: > >> Hi Debadrita, >> >> You have Vivado Lab and Vivado HLS ( High Level Synthesis ) installed. >> You need to have either Vivado Design Edition or System Edition in order to >> build the FPGA images for the X300. >> >> Regards, >> Nate Temple >> >> >> > On Feb 6, 2017, at 11:03 PM, DEBADRITA DAS <debadritadas0@gmail.com> >> wrote: >> > >> > Hi, >> > >> > I have tried that but it didn't help. >> > >> > debadrita@vipl:~$ cd ettus_uhd/uhd/fpga-src/usrp3/top/x300 >> > debadrita@vipl:~/ettus_uhd/uhd/fpga-src/usrp3/top/x300$ source >> setupenv.sh >> > Setting up a 64-bit FPGA build environment for the USRP-X3x0... >> > - Vivado: Found (/opt/Xilinx/Vivado_Lab/2015.4/bin) >> > - Vivado HLS: Found (/opt/Xilinx/Vivado_HLS/2015.4/bin) >> > >> > Environment successfully initialized. >> > debadrita@vipl:~/ettus_uhd/uhd/fpga-src/usrp3/top/x300$ make GUI=1 >> > make -f Makefile.x300.inc bin NAME=X300_HG ARCH=kintex7 >> PART_ID=xc7k325t/ffg900/-2 BUILD_1G=1 BUILD_10G=1 SFP0_1GBE=1 SFP1_10GBE=1 >> X300=1 EXTRA_DEFS="BUILD_1G=1 BUILD_10G=1 SFP0_1GBE=1 SFP1_10GBE=1 X300=1" >> > make[1]: Entering directory `/home/debadrita/ettus_uhd/uhd >> /fpga-src/usrp3/top/x300' >> > BUILDER: Checking tools... >> > * GNU bash, version 4.3.11(1)-release (x86_64-pc-linux-gnu) >> > * Python 2.7.6 >> > * ERROR: Vivado not found in environment. Please run setupenv.sh >> > make[1]: *** [.check_tool] Error 1 >> > make[1]: Leaving directory `/home/debadrita/ettus_uhd/uhd >> /fpga-src/usrp3/top/x300' >> > make: *** [X300_HG] Error 2 >> > >> > >> > BR >> > Debadrita >> > >> > On Tue, Feb 7, 2017 at 12:14 PM, Nate Temple <nate.temple@ettus.com> >> wrote: >> > Hi Debadrita, >> > >> > Note the error towards the end of the output: "* ERROR: Vivado not >> found in environment. Please run setupenv.sh" >> > >> > You need to source the setupenv.sh script which is located in the >> fpga-src/usrp3/top/x300 directory before running the make command. >> > >> > Additional details are at this page: http://files.ettus.com/manual/ >> md_usrp3_build_instructions.html >> > >> > Under the section: Build Instructions (Xilinx Vivado only) -> Makefile >> based Builder >> > >> > >> > Regards, >> > Nate Temple >> > >> > >> > >> > > On Feb 6, 2017, at 10:26 PM, DEBADRITA DAS via USRP-users < >> usrp-users@lists.ettus.com> wrote: >> > > >> > > Hi, >> > > >> > > i'm using ettus USRP X300 in UBUNTU 14.04 64 bit and while building >> Xilinx Vivado Design Suite HLX Editions 15.4, i am facing the following >> error >> > > >> > > debadrita@vipl:~/ettus_uhd/uhd/fpga-src/usrp3/top/x300$ make GUI=1 >> > > make -f Makefile.x300.inc bin NAME=X300_HG ARCH=kintex7 >> PART_ID=xc7k325t/ffg900/-2 BUILD_1G=1 BUILD_10G=1 SFP0_1GBE=1 SFP1_10GBE=1 >> X300=1 EXTRA_DEFS="BUILD_1G=1 BUILD_10G=1 SFP0_1GBE=1 SFP1_10GBE=1 X300=1" >> > > make[1]: Entering directory `/home/debadrita/ettus_uhd/uhd >> /fpga-src/usrp3/top/x300' >> > > BUILDER: Checking tools... >> > > * GNU bash, version 4.3.11(1)-release (x86_64-pc-linux-gnu) >> > > * Python 2.7.6 >> > > * ERROR: Vivado not found in environment. Please run setupenv.sh >> > > make[1]: *** [.check_tool] Error 1 >> > > make[1]: Leaving directory `/home/debadrita/ettus_uhd/uhd >> /fpga-src/usrp3/top/x300' >> > > make: *** [X300_HG] Error 2 >> > > debadrita@vipl:~/ettus_uhd/uhd/fpga-src/usrp3/top/x300$ sudo make >> GUI=1 >> > > make -f Makefile.x300.inc bin NAME=X300_HG ARCH= PART_ID= BUILD_1G=1 >> BUILD_10G=1 SFP0_1GBE=1 SFP1_10GBE=1 X300=1 EXTRA_DEFS="BUILD_1G=1 >> BUILD_10G=1 SFP0_1GBE=1 SFP1_10GBE=1 X300=1" >> > > make[1]: Entering directory `/home/debadrita/ettus_uhd/uhd >> /fpga-src/usrp3/top/x300' >> > > BUILDER: Checking tools... >> > > * GNU bash, version 4.3.11(1)-release (x86_64-pc-linux-gnu) >> > > * Python 2.7.6 >> > > * ERROR: Vivado not found in environment. Please run setupenv.sh >> > > make[1]: *** [.check_tool] Error 1 >> > > make[1]: Leaving directory `/home/debadrita/ettus_uhd/uhd >> /fpga-src/usrp3/top/x300' >> > > make: *** [X300_HG] Error 2 >> > > >> > > Please help me with this. >> > > >> > > BR >> > > Debadrita. >> > > _______________________________________________ >> > > USRP-users mailing list >> > > USRP-users@lists.ettus.com >> > > http://lists.ettus.com/mailman/listinfo/usrp-users_lists.ettus.com >> > >> > >> >> >

Hello, Try running "make cleanall" then try again. On Mon, Feb 13, 2017 at 3:38 AM, DEBADRITA DAS via USRP-users < usrp-users@lists.ettus.com> wrote: > HI, > I've installed Vivado Design Suite-HLX Editions 2015.4 on Ubuntu 14.04 and > succesfully setup the Ettus Xilinx build environment using > source setupenv.sh > But when i try to build binary bitstream using > make GUI=1 all > it ended up with the following errors > > INFO: [IP_Flow 19-1686] Generating 'Instantiation Template' target for IP > 'ddr3_32bit'... > ERROR: [xilinx.com:ip:mig_7series:2.4-0] ddr3_32bit: Code generation > aborted: Can not read PRJ file: /home/debadrita/uhd/fpga-src/ > usrp3/top/x300/build-ip/xc7k325tffg900-2/ddr3_32bit/mig_a.prj > CRITICAL WARNING: [IP_Flow 19-1747] Failed to deliver file > '/opt/Xilinx/Vivado/2015.4/data/ip/xilinx/mig_7series_v2_ > 4/xit/instantiation_template.xit': > ERROR: [IP_Flow 19-167] Failed to deliver one or more file(s). > ERROR: [IP_Flow 19-3505] IP Generation error: Failed to generate IP > 'ddr3_32bit'. Failed to generate 'Verilog Instantiation Template' outputs: > ERROR: [IP_Flow 19-98] Generation of the IP CORE failed. > Failed to generate IP 'ddr3_32bit'. Failed to generate 'Verilog > Instantiation Template' outputs: > INFO: [Common 17-206] Exiting Vivado at Mon Feb 13 14:41:40 2017... > BUILDER: Releasing IP location: /home/debadrita/uhd/fpga-src/ > usrp3/top/x300/build-ip/xc7k325tffg900-2/ddr3_32bit > make[1]: *** [/home/debadrita/uhd/fpga-src/usrp3/top/x300/build-ip/ > xc7k325tffg900-2/ddr3_32bit/ddr3_32bit.xci] Error 1 > make[1]: Leaving directory `/home/debadrita/uhd/fpga-src/usrp3/top/x300' > make: *** [X300_HG] Error 2 > root@debadrita:/home/debadrita/uhd/fpga-src/usrp3/top/x300# > root@debadrita:/home/debadrita/uhd/fpga-src/usrp3/top/x300# "make GUI=1 > X310_RFNOC_HLS_HGS > > please help me with this. > > BR > Debadrita. > > On Wed, Feb 8, 2017 at 11:48 AM, DEBADRITA DAS <debadritadas0@gmail.com> > wrote: > >> Hi, >> >> I am not able to find any Vivado HLS Project under the path >> ettus_uhd/uhd/fpga-src/usrp3/top/x300/ and sending you the screenshot >> of the same >> >> Please help me with this. >> >> BR >> Debadrita. >> >> On Wed, Feb 8, 2017 at 1:34 AM, Nate Temple <nate.temple@ettus.com> >> wrote: >> >>> Hi Debadrita, >>> >>> You have Vivado Lab and Vivado HLS ( High Level Synthesis ) installed. >>> You need to have either Vivado Design Edition or System Edition in order to >>> build the FPGA images for the X300. >>> >>> Regards, >>> Nate Temple >>> >>> >>> > On Feb 6, 2017, at 11:03 PM, DEBADRITA DAS <debadritadas0@gmail.com> >>> wrote: >>> > >>> > Hi, >>> > >>> > I have tried that but it didn't help. >>> > >>> > debadrita@vipl:~$ cd ettus_uhd/uhd/fpga-src/usrp3/top/x300 >>> > debadrita@vipl:~/ettus_uhd/uhd/fpga-src/usrp3/top/x300$ source >>> setupenv.sh >>> > Setting up a 64-bit FPGA build environment for the USRP-X3x0... >>> > - Vivado: Found (/opt/Xilinx/Vivado_Lab/2015.4/bin) >>> > - Vivado HLS: Found (/opt/Xilinx/Vivado_HLS/2015.4/bin) >>> > >>> > Environment successfully initialized. >>> > debadrita@vipl:~/ettus_uhd/uhd/fpga-src/usrp3/top/x300$ make GUI=1 >>> > make -f Makefile.x300.inc bin NAME=X300_HG ARCH=kintex7 >>> PART_ID=xc7k325t/ffg900/-2 BUILD_1G=1 BUILD_10G=1 SFP0_1GBE=1 SFP1_10GBE=1 >>> X300=1 EXTRA_DEFS="BUILD_1G=1 BUILD_10G=1 SFP0_1GBE=1 SFP1_10GBE=1 X300=1" >>> > make[1]: Entering directory `/home/debadrita/ettus_uhd/uhd >>> /fpga-src/usrp3/top/x300' >>> > BUILDER: Checking tools... >>> > * GNU bash, version 4.3.11(1)-release (x86_64-pc-linux-gnu) >>> > * Python 2.7.6 >>> > * ERROR: Vivado not found in environment. Please run setupenv.sh >>> > make[1]: *** [.check_tool] Error 1 >>> > make[1]: Leaving directory `/home/debadrita/ettus_uhd/uhd >>> /fpga-src/usrp3/top/x300' >>> > make: *** [X300_HG] Error 2 >>> > >>> > >>> > BR >>> > Debadrita >>> > >>> > On Tue, Feb 7, 2017 at 12:14 PM, Nate Temple <nate.temple@ettus.com> >>> wrote: >>> > Hi Debadrita, >>> > >>> > Note the error towards the end of the output: "* ERROR: Vivado not >>> found in environment. Please run setupenv.sh" >>> > >>> > You need to source the setupenv.sh script which is located in the >>> fpga-src/usrp3/top/x300 directory before running the make command. >>> > >>> > Additional details are at this page: http://files.ettus.com/manual/ >>> md_usrp3_build_instructions.html >>> > >>> > Under the section: Build Instructions (Xilinx Vivado only) -> Makefile >>> based Builder >>> > >>> > >>> > Regards, >>> > Nate Temple >>> > >>> > >>> > >>> > > On Feb 6, 2017, at 10:26 PM, DEBADRITA DAS via USRP-users < >>> usrp-users@lists.ettus.com> wrote: >>> > > >>> > > Hi, >>> > > >>> > > i'm using ettus USRP X300 in UBUNTU 14.04 64 bit and while building >>> Xilinx Vivado Design Suite HLX Editions 15.4, i am facing the following >>> error >>> > > >>> > > debadrita@vipl:~/ettus_uhd/uhd/fpga-src/usrp3/top/x300$ make GUI=1 >>> > > make -f Makefile.x300.inc bin NAME=X300_HG ARCH=kintex7 >>> PART_ID=xc7k325t/ffg900/-2 BUILD_1G=1 BUILD_10G=1 SFP0_1GBE=1 SFP1_10GBE=1 >>> X300=1 EXTRA_DEFS="BUILD_1G=1 BUILD_10G=1 SFP0_1GBE=1 SFP1_10GBE=1 X300=1" >>> > > make[1]: Entering directory `/home/debadrita/ettus_uhd/uhd >>> /fpga-src/usrp3/top/x300' >>> > > BUILDER: Checking tools... >>> > > * GNU bash, version 4.3.11(1)-release (x86_64-pc-linux-gnu) >>> > > * Python 2.7.6 >>> > > * ERROR: Vivado not found in environment. Please run setupenv.sh >>> > > make[1]: *** [.check_tool] Error 1 >>> > > make[1]: Leaving directory `/home/debadrita/ettus_uhd/uhd >>> /fpga-src/usrp3/top/x300' >>> > > make: *** [X300_HG] Error 2 >>> > > debadrita@vipl:~/ettus_uhd/uhd/fpga-src/usrp3/top/x300$ sudo make >>> GUI=1 >>> > > make -f Makefile.x300.inc bin NAME=X300_HG ARCH= PART_ID= BUILD_1G=1 >>> BUILD_10G=1 SFP0_1GBE=1 SFP1_10GBE=1 X300=1 EXTRA_DEFS="BUILD_1G=1 >>> BUILD_10G=1 SFP0_1GBE=1 SFP1_10GBE=1 X300=1" >>> > > make[1]: Entering directory `/home/debadrita/ettus_uhd/uhd >>> /fpga-src/usrp3/top/x300' >>> > > BUILDER: Checking tools... >>> > > * GNU bash, version 4.3.11(1)-release (x86_64-pc-linux-gnu) >>> > > * Python 2.7.6 >>> > > * ERROR: Vivado not found in environment. Please run setupenv.sh >>> > > make[1]: *** [.check_tool] Error 1 >>> > > make[1]: Leaving directory `/home/debadrita/ettus_uhd/uhd >>> /fpga-src/usrp3/top/x300' >>> > > make: *** [X300_HG] Error 2 >>> > > >>> > > Please help me with this. >>> > > >>> > > BR >>> > > Debadrita. >>> > > _______________________________________________ >>> > > USRP-users mailing list >>> > > USRP-users@lists.ettus.com >>> > > http://lists.ettus.com/mailman/listinfo/usrp-users_lists.ettus.com >>> > >>> > >>> >>> >> > > _______________________________________________ > USRP-users mailing list > USRP-users@lists.ettus.com > http://lists.ettus.com/mailman/listinfo/usrp-users_lists.ettus.com > >
