Hi Marcus,

The sampling rate can be 30.72MHz or 184,32MHz. It can vary in
different test cases.

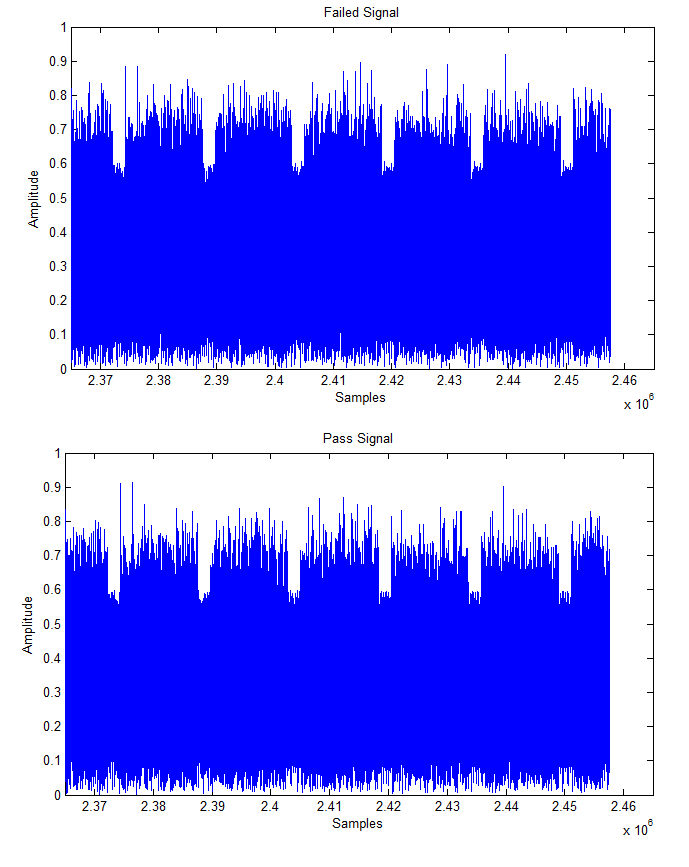

Below are the final parts of the pass and failed captures (fs=30.72MHz):
Inline imagemichael york
With eye, we can hardly see difference between these two captures. EVM
is not bad in the failed case but CRC failed.
I am not too worried about this problem because I have the solution. I
reported it as a possible issue in usrp.

Have a nice weekend,

On Friday, 26 May 2023 at 20:05:28 BST, Marcus D. Leech
patchvonbraun@gmail.com wrote:

On 26/05/2023 14:11, zhou wrote:
Hi Marcus,

Sorry for the late response.
My system setup:

• UHD 4.4
• Ubuntu 22.04 server version
• USRP: X310

The capture code:
uhd::usrp::multi_usrp::sptr usrp =
uhd::usrp::multi_usrp::make("addr=192.168.12.2,
second_addr=192.168.13.2, master_clock_rate=184.32e6");
uhd::stream_args_t stream_args_rx("sc16", "sc16");
stream_args_rx.channels.push_back(0);
stream_args_rx.channels.push_back(1);
uhd::rx_streamer::sptr rx_stream = usrp->get_rx_stream(stream_args_rx);
uhd::stream_cmd_t
stream_cmd(uhd::stream_cmd_t::STREAM_MODE_NUM_SAMPS_AND_DONE);
stream_cmd.num_samps = num_requested_samples;
stream_cmd.stream_now = false;
stream_cmd.time_spec = uhd::time_spec_t(ul_time_spec);
rx_stream->issue_stream_cmd(stream_cmd);
size_t num_rx_samps;
unsigned long num_total_samps = 0;
while(num_requested_samples != num_total_samps)
{
   num_rx_samps = rx_stream->recv(buff, num_requested_samples, md, 5.0);
   num_total_samps += num_rx_samps;
}

If I capture exactly num_requested_samples, then the final part of the
capture will not be good. I have to capture 1ms more. In UHD 3.10, I
don't see this problem.

Thanks for any feedback.

I don't see where you set the sample rate--what is your sample rate?

Can you perhaps share a time-domain plot of the last samples in the
case where it doesn't work right?

Hi Wade,

Coincidentally I just measured the output voltage of the power supply
and found that the three of them wobble around 8 to 9 volts. Thew
point is that I have two of them and they do the same thing, which
raises the suspicion it is not a coincidence.

I guess I should check that the AC power source is not playing a bad
joke on me.

Thank you,

Arjan

Arjan FETA
SDR Engineer

http://www.rheagroup.com/

RHEA GROUP

2, Rue d’Arlon, L-8399 Windhof

Office: +32 (0)…| Mobile: +39 3287071042

www.rheagroup.com
http://t.sidekickopen54.com/e1t/c/5/f18dQhb0S7lC8dDMPbW2n0x6l2B9nMJW7t5XYg2BpyRFW8qStpx3My7xPW2BW4zb56dTT6f5_X-rg02?t=http%3A%2F%2Fwww.rheagroup.com%2F&si=6251671876534272&pi=84d8d6f5-3fd1-4962-9bfd-7b2b225b6306

*From:*Wade Fife wade.fife@ettus.com
Sent: 19 May 2023 15:35
To: Arjan Feta a.feta@rheagroup.com
Cc: usrp-users@lists.ettus.com
Subject: Re: [USRP-users] Re: X410 not powering on

You don't often get email from wade.fife@ettus.com. Learn why this is
important https://aka.ms/LearnAboutSenderIdentification

*Caution:*This email was sent from an external source, do not click
links or open attachments unless you recognize the sender email
address and know the content is safe.

Hi Arjan,

I have not heard of this before. It should be as simple as connecting
an appropriate AC cable to the X410 power supply brick, plugging the
AC cable into the wall, then plugging the 6-pin power cable into the
X410 and pressing the power button. If you haven't already, try
disconnecting everything from the X410 itself except the power cable
and powering it on. Also try different AC cables (the one that
connects the power supply brick to the wall socket). If you have a
voltage meter you could also measure the voltage on the power supplies
to confirm they're OK. I suggest you contact support@ettus.com if you
can't get it to work.

Wade

On Fri, May 19, 2023 at 2:55 AM Arjan Feta via USRP-users
usrp-users@lists.ettus.com wrote:

 Sorry, no question in the message :).

 Had anyone had this kind of issue before?

 Thanks,

 Arjan

 _______________________________________________
 USRP-users mailing list -- usrp-users@lists.ettus.com
 To unsubscribe send an email to usrp-users-leave@lists.ettus.com

USRP-users mailing list -- usrp-users@lists.ettus.com
To unsubscribe send an email to usrp-users-leave@lists.ettus.com

Hello

I've got a similar issue: completely new USRP X410 that doesn't react
to power button.
More specifically, there is a little sign of life - it constantly
prints something like this on UART that I suppose is a port of STM32
microcontroller:
 --- UART initialized after reboot ---
[Reset cause: reset-pin power-on]
[Image: RO, titanium_v0.0.13821-2ba974b2d 2021-07-15 11:05:10
@dc6a9f0cf8d7]
[0.00�

--- UART initialized after reboot ---
[Reset cause: reset-pin power-on]
[Image: RO, titanium_v0.0.13821-2ba974b2d 2021-07-15 11:05:10
@dc6a9f0cf8d7]
[0.00�

...

Do you have any ideas how to solve the issue other than returning the
device?

--
Best Regards,
Piotr Krysik
